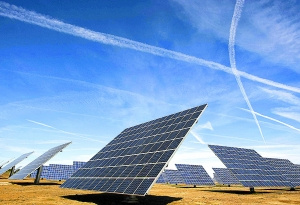

2011 new super high quality Solar power station
1)Solar panel: 500W-5000W mono or multi silicon panel
2)High quality and low cost
3)Green energy
4)Good market
Solar Cell Module |
Max power |
2040 W( 170W× 12) |
Converting efficiency |
≥ 16% poly-crystalline silicon with 125× 125 standard square |
Electrical data |
Open circuit voltage |
44.5V |
Max voltage |
35.9V |
Short circuit current |
61.44A |
Max current |
56.88A |
Type and Size |
Type A |
1 array*3modules in series
4948× 1580 mm x 2 |
Module size |
808× 1580× 35 mm |
Type B |
— — |
Installation angle |
Install at 0° ~ 60° from the horizontal |
Battery Pack |
Rated capacity |
600AH |
Combined mode |
200AH/12V
2 pcs as an array and 3 arrays in parallel |
Rated voltage |
24V |
Battery type |
Maintenance-free lead-acid |
Discharging rate |
≤ 50% |
Ambient temperature |
-30° C~+60° C |
Weight |
575Kg |
Lifetime |
5— 8 years |
Charge/discharge Controller, Input& output |
Charge/Discharge controller |
Model |
CML40 |
Size |
40A ( 12/24 adaptorable ) |
Manufacturer |
Phocos |
DC output |
24V |
For DC electrical tools |
AC output-A
50/60Hz |
Inverted output of standard electricity wave |
Rated output power 500W for group-adaptive loads
e. g.: lights, TV, electrical heaters etc. |
AC output-B
50/60Hz |
inverted output of pure electricity wave |
Rated output power 500W for geist electrical machines loads
e. g.: fridges, electrical fans, water pumps etc. |
Max Output |
DC |
12V |
100W |
Rated output(100%) |
DC |
12V |
60W |
24V |
200W |
24V |
150W |
AC |
Standard electricity wave |
700W |
AC |
Standard electricity wave |
500W |
Pure electricity wave |
700W |
Pure electricity wave |
500W |
Power ability for 50% loads |
Available Power for a sunny day’ s charge |
6— 8 hours |
Available power for full battery |
25 hours |
Qingdao AST Solar Technology Co., Ltd. was founded in 2003 and located in Qingdao city Shandong province.
Since 2003, Qingdao AST Solar Technology Co., Ltd. had been focusing on technical development and scientific management. It has a strong working team of research, production marketing and management. It has many professional employees in solar field. It has set up a professional research, manufacture base of solar panel, solar system, solar station and other solar products.
We have practical experience of nearly 10 years of photovoltaic product development process. We possess complete solar cell production technology from the solar cell, solar panel, solar system. Our independent research and development production of monocrystalline solar module has passed the Work Committee of CE&ROHS certification. Strong technical support, excellent quality & perfect service system laid its global sales network which will be accepted by domestic and foreign customers and recognition.
Qingdao AST Solar Technology Co., Ltd. exports its products to worldwide markets, such as UK, Germany, Spain, Italy, Australia, Canada, USA, Thailand, South Africa, etc.
With our products, let's create a green word and wonderful life together.
