Plastic Rubber Ozone Aging Test Chamber (HZ-2018)
| Price: |
US $ 5000-8000/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

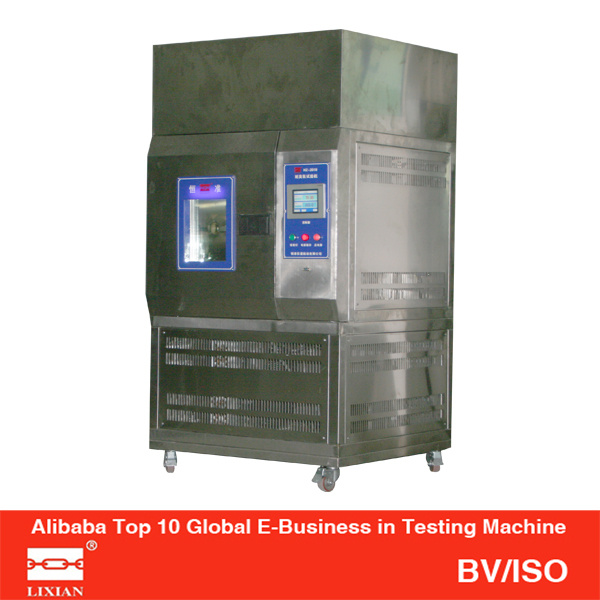

Plastic Rubber Ozone Aging Test Chamber HZ-2018
Equipment Summary:
Ozone test chamber is a major factor in rubber cracking although it is rare in the atmosphere, ozone aging tank simulates and enhance the condition of ozone in the atmosphere to study the effects of ozone on rubber, and then identify and evaluate the method to resist ozone and aging for rubber, adopt effective anti-aging measures to enhance the life of rubber products .
Corresponding Standard:
JIS K 6259 ASTM1149 ASTM1171 ISO1431 DIN53509 GB7762 GB/T13642
Applicable Industries:
Ozone Testing Equipment for rubber products is widely used to control products quality in measuring quality control; Rubber & Plastics; automobile production; wire and cable; packing materials; instruments and meters; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research laboratories; inspection arbitration,and technical supervision departments and other rubber products.
Parameter |
Model |
HZ-2018 Plastic Rubber Ozone Aging Test Chamber |
Ozone concentration |
0~1000pphm adjustable |
Relative humidity |
60%RH above |
Temperature |
RT+10 o C to +70 o C |
Ozone produced mode |
Ozone generator or UV absorption method |
Inside air velocity |
over 2 feet / sec |
Degree of ozone
concentration fluctuation |
10% |
Inside size |
500*500*600 mm |
Air flow |
A.0-6 cfm B. 10-20 cfh |
weight |
250kg |
power |
AC220V,60HZ or 50 HZ(according to the reuqirement ) |
Accessories |

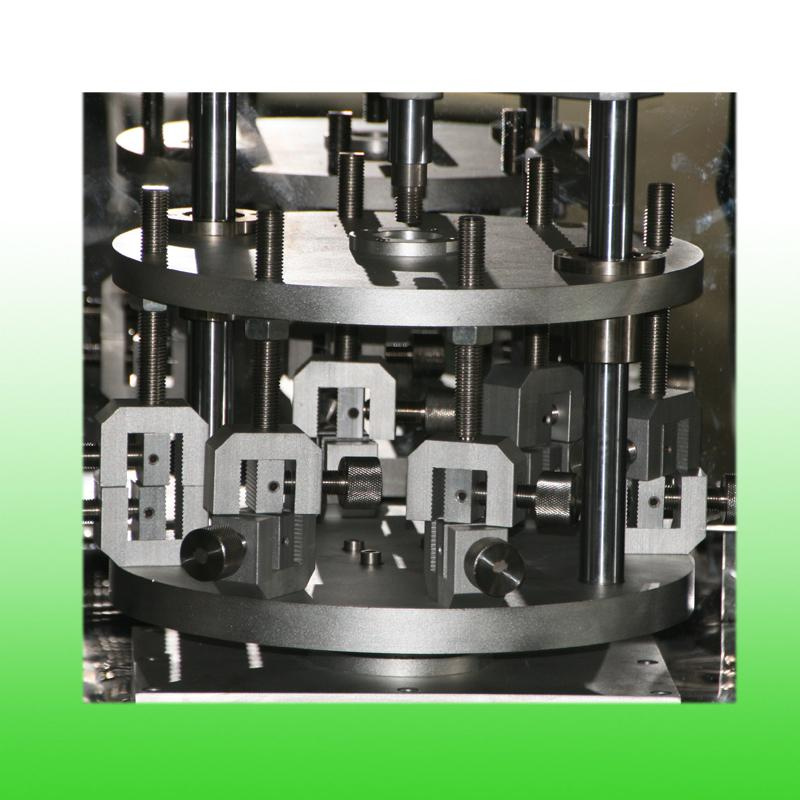

tensile fixture 6 groups |
| Prod Model: |
HZ-2018 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ASTM, Cns, IEC, JIS, Aatcc, DIN, Fed Test, Bs, SAE |
| Ozone Concentration: |
0~1000pphm Adjustable |
| Relative Humidity: |
60%Rh Above |
| Temperature: |
Rt+10deg ~ +70deg |
| Ozone Produced Mode: |
Ozone Generator or UV Absorption Method |
| Inside Air Velocity: |
Over 2 Feet / Sec |
| Inside Size: |
500*500*600 Mm or Custom |
| Air Flow: |
a.0-6 Cfm B. 10-20 Cfh |
| Accessories: |
Tensile Fixture 6 Groups |
| Service: |
OEM, Oversea Service |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
| Type: |
Environmental Test Machine |
Lixian Instrument Co., Ltd., is a high-tech joint venture company which with professional design and manufacture of various type instruments. Company founded in 1992, the headquarters is located in Shanghai now, Company has a group of first-rate professionals, dedicate to product development and marking.
Most parts of products are mainly sale to Taiwan and overseas, Company not only has the advanced production equipment and strong technical force, but also introduced the high-tech scientific research units from Beijing and Shanghai to continue to develop newer products, Won the trust of customers with the first-rate quality, reasonable price and excellent after-sales service.
