Specimen Resistance to Ozone Testing Machine
Equipment Summary:
Ozone Testing Machine is a major factor in rubber cracking although it is rare in the atmosphere, ozone aging tank simulates and enhance the condition of ozone in the atmosphere to study the effects of ozone on rubber, and then identify and evaluate the method to resist ozone and aging for rubber, adopt effective anti-aging measures to enhance the life of rubber products .
Corresponding Standard:
JIS K 6259 ASTM1149 ASTM1171 ISO1431 DIN53509 GB7762 GB/T13642
Applicable Industries:
Ozone Testing Machine for rubber products is widely used to control products quality in measuring quality control; Rubber & Plastics; automobile production; wire and cable; packing materials; instruments and meters; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research laboratories; inspection arbitration,and technical supervision departments and other rubber products.
Parameter |
Model |
HZ-2018 Programmable Rubber Ozone Aging Test Equipment |
Ozone concentration |
0~1000pphm adjustable |
Relative humidity |
60%RH above |
Temperature |
RT+10 o C to +70 o C |
Ozone produced mode |
Ozone generator or UV absorption method |
Inside air velocity |
over 2 feet / sec |
Degree of ozone
concentration fluctuation |
10% |
Inside size |
500*500*600 mm |
Air flow |
A.0-6 cfm B. 10-20 cfh |
weight |
250kg |
power |
AC220V,60HZ or 50 HZ(according to the reuqirement ) |
Accessories |

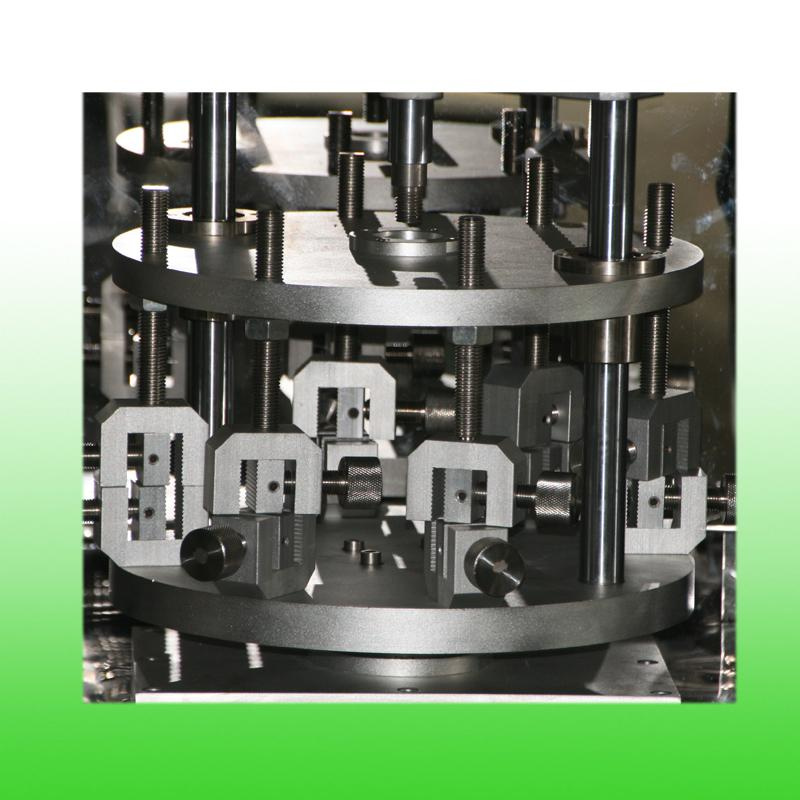

tensile fixture 6 groups |
| Prod Model: |
HZ-2018 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ASTM, Cns, IEC, JIS, Aatcc, DIN, Fed Test, Bs, SAE |
| Ozone Concentration: |
0~1000pphm Adjustable |
| Relative Humidity: |
60%Rh Above |
| Temperature: |
Rt+10deg ~ +70deg |
| Ozone Produced Mode: |
Ozone Generator or UV Absorption Method |
| Inside Air Velocity: |
Over 2 Feet / Sec |
| Inside Size: |
500*500*600 Mm or Custom |
| Air Flow: |
a.0-6 Cfm B. 10-20 Cfh |
| Accessories: |
Tensile Fixture 6 Groups |
| Service: |
OEM, Oversea Service |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
| Type: |
Environmental Test Machine |
