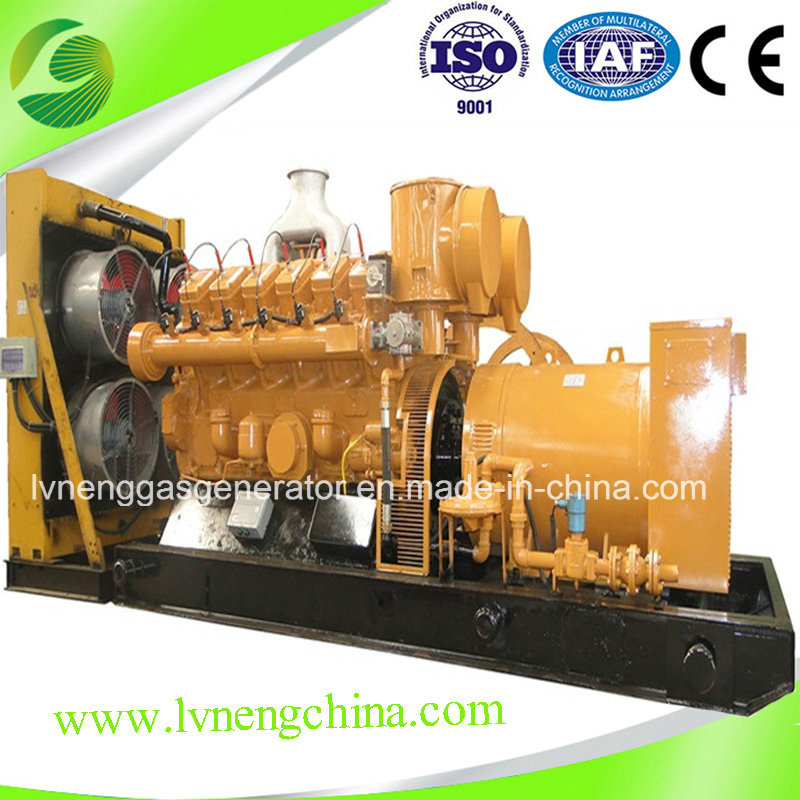

pipeline natural gas high efficiency natural gas generator
pipeline natural gas high efficiency natural gas generator
Worksite requirements
The worksite needs to meet following basic requirements:
a) Ambient temperature between -40ºC~45ºC;
b) Relative humidity less than 90%(35ºC);
c) Site elevation not higher than 2000m;
d) For outdoor installation, simple rain shelter is required.
The engine is high,/low temperature cycle requires the use of softened water.Cooling water should be used in slightly alkaline cleaning water, not compounds containing corrosive, such as chlorides, sulphates or acid etc..Its main index requirements are as follows:
hardness:0.7~5.3me/L ;chloride ion content:<150mg/L;PH≤7~8.5
pipeline natural gas high efficiency natural gas generator
Fuel gas requirement
The genset will be able to output at its full power with fuel gas with the specification as below:
1m distance away from genset's pressure regulating valve of inlet
1)Temperature of natural gas ≤40ºC;
2)Pressure of natural gas 80~200kPa, velocity of pressure≤ 1kPa/min;
3)H2S≤20mg/Nm3;
4)the ratio of CH4 in natural gas not less than 70%
5)Impurities particle size≤5μm; impurity content≤30mg/Nm3;
6)Moisture Content of biomass ≤40g/Nm3;
If fuel gas contains higher quantity of sulfur and ammonia,it not only corrodes the pole of spark plug seriously,but also increases the acid value,which corrodes internal parts of genset and corrodes the genset with precipitates.
pipeline natural gas high efficiency natural gas generator
Why you chioce Shandong lvneng Power Equipment Co.,Ltd.
1. over 15 years gas/diesel generator produced experience;
2. main products include: diesel engines, biomass generator, natural gas generator , biogas generator , coal gas generator set, etc. Products arrange from 5kw-3000kw ;
3. Our workshop covering more than 40000 square meters, techincal engineer and after-service more than 100 person.
4.CE,ISO9001:2008,ISO2001:1400 ,SGSetc.certificats approve and passed many patents.
5. exported many countries such as: Spain, Italy, Canada, Venezuela, Austraila, Thailand, Malaysia,Philippine,Indonesia,and with some Africa countries etc.
6.we provide TURN-KEY project : like water removal system,H2S removal system,gasified equipment,recovery system of exhaust heat,CCHP system etc.
7.machine have long serive-life: more than 15 years
CE approve small natural gas generator Service :
1.pre-sale service:
(1)We will send our engineer to prospect the site of power station free to charge.
(2)According to the situation of site we can supply you many drawings.
2.Sale service:
(1)we will send our engineer to the site to guide you the installation of generator set, subsystem and relative equipment.
(2)We will debug the generator set till it can generate power successfully.
(3)We will also supply a technical training to the operators.Or send your staff to our company train you till you can operate the generator set.
3.After-sale service:
(1)our engineers are in charge of different area,we will response periodically and support you technical service free of charge.
(2)For the quality problem, we will service for you free of charge during the guarantee period.
(3)One year guarantee period and lifetime service.
(4)we solve quality problem in time when genset doesn't work,We insure to help our clients to gain the biggest economic profit.
4.Spare parts service:
(1)Please provide parts No.s We can supply to you all engine/generator spare parts as your demand,
(2)All parts were from original factories or professional factories,complete in specification,keep good quality.
CE approve small natural gas generator FAQ:
1. delivery time?
according to load power ,normal is 30-120days.
2. Do you have CE?
Yes, our generator approve CE,ISO9001,ISO14001,SGS etc.
3. What the Engine brand it is?
Engine brand :Lvneng.
we are professional manufacturer for gas engine over 20 years.Our gas engine have achieve 15 patents.
4. What is the intake gas system ?
USA WOODWARD or German HEINZMANN.
5. What's your generator advantage?
1)Alternator using STANFORD or SIEMENS
2)EGIS Liner
3)Altronic Spark plug
4)ProAct actuators
5)Tecjet control valve and mixer
6)Operation cost is very low about USD167can generating 1kw.h and low maintenance cost
pipeline natural gas high efficiency natural gas generator
main parameter
Model Number (Engine Type) | LNBMG20-600 |
| Brand Name | LVNENG |
| power | 20kw-600kw |
| Rated Speed | 1500/1800RPM |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1 |
| Heat consumption | ≤9.8mj/kw.h |
| Lubricant consumption | ≤1.63g/kw.h |
| Engine Capacity | 4.33 L |
| Cylinder Number | 4 |
| Cylinder Bore | 105mm |
| Stroke | 125mm |
| Starting System | DC 24V electic motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | ENGGA |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1500 running hours |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 2100x900x1200mm |
| Weight | 950kg |
JiNan LVNENG POWER MACHINERY EQUIPMENT Co., Ltd was founded in July, 2009. It's located in high-tech development zone in the east of Jinan city with advantageous geographical position and good transport facilities The Company owns two factory regions research and production, with more than 150 staffs in company. And twenty of them are high-level technical talented person We own developed production line, impeccable quality test system and professional sale and service-after-sell team, and our company is committed to research production marketing and after-sale service of synthesis firm. With our excellent quality product and perfect after-sale service, we won praises and approbation from our customers.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. And our main products are kinds of diesel engines, diesel generator and fuel gas generator, including natural gas generator methane gas generator straw gas generator biomass gas generator sets coal gas generator, coke oven gas generator sets, Mobile power station(Mobile trailer series), Static-speaker unit, Diesel engine and diesel generator sets etc.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
All large, medium and small power products can be produced and the power performance, economical efficiency and reliability are all in the advanced level of this field, with the improvement of R & D department, Our Company install the valve seal and exhaust temperature meter for the products which are out form company, really save fuel consumption/automatic temperature control. For the vast number of users to save a lot of cost, has been widely praised by users
JiNan LVNENG POWER MACHINERY EQUIPMENT CO, . Ltd persist in scientific and technological innovation manage Innovation development direction Always insist on customer-first Business ideas of Mutual benefit, insist on Energy saving and environmental protection Safe and reliable quality policy Insist on fast\Exquisite Standard Service tenet. Inherit" Quality is the first, credit as prerequisite" as Core concept, constantly creating greater value for customers, Promoting sustained and healthy development of the company
"LVNENG, Dedication power \Pursuit excellence" A broad application market, quality products, quality and service will be our cooperation to build a good platform. Join hands with LVNENG success-together. Looking forward to Look forward to working with you.
