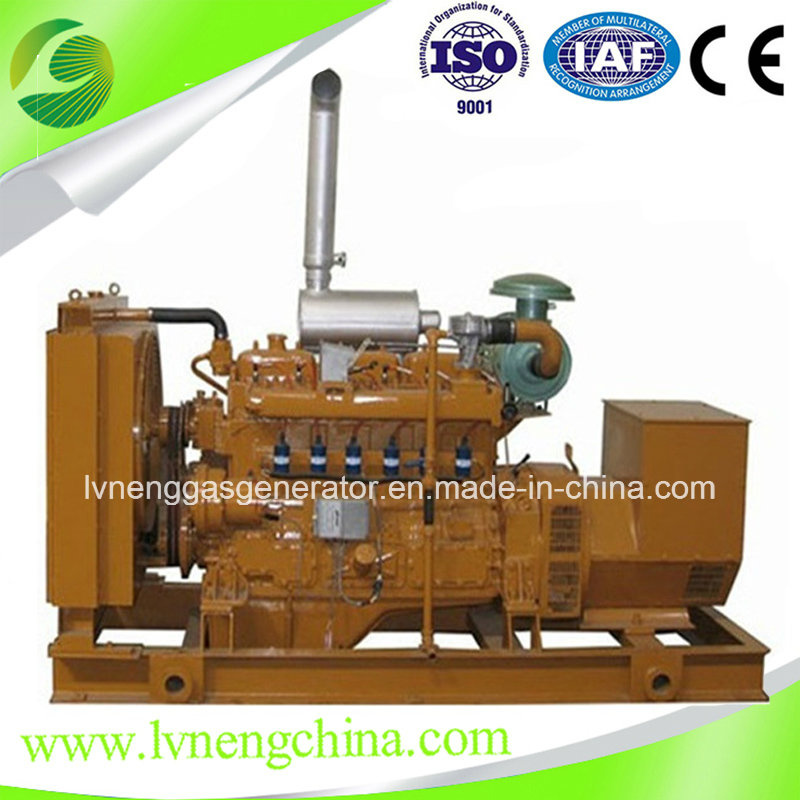

CE ISO Stanford Alternator Best Natural Gas Generator Price
1. Company Introduction
Since 2008
Factory area over 40000m2
Starff over 260 employees
Technicians over 100 people
website www.lvnengdongli.com
2. Advantage
2.1 Configuration
a. Strong structure & Strengthen accessories
b. Super performance of electric speed governer and gas pressure regulation system, and stable working c. condition and easy to parallel connection
d. High generalization for easy maintance and low maintance cost
e. Long using life and low-operation cost
2.2 Gas control
a. Easy Start & Auto start
b. Precise air-fuel ratio lean-burn control, reduce the intake pipe tempering, increase efficiency, lower the heat load
c. Advanced gas control technology and fully adapt the charactors of fuel gas
d. Strong control system anti-interference ability
3.Requirements For Natural Gas Genset Working Condition
a. Within 1m from pressure regulating valve of gas intake
b. The ratio of CH4 in natural gas ≥70%
c. Pressure of natural gas: 80-200kpa, rate of pressure change ≤ 1kpa/min
d. H2S ≤ 20mg/Nm3
e. Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3
f. Moisture content ≤ 40g/Nm3
4. Certificate
We have CE, ISO14001, ISO9001 and CEC certificate to keep the good quality. Please contact us for more details.
5. Service
5.1. pre-sale service:
(1)We will send our engineer to prospect the site of power station free to charge.
(2)According to the situation of site we can supply you many drawings: like power station floor plan,
engineering flow sheet of circle cooling system, genset installation, genset foundation, electrical connection and some other techincal support etc.
5.2. Sale service:
(1)we will send our engineer to the site to guide you the installation of generator set, subsystem and relative equipment.
(2)We will debug the generator set till it can generate power successfully.
(3)We will also supply a technical training to the operators. Orcan send your staff to our company. We can train you till you can operate the generator set.
5.3. After-sale service:
(1)Our every engineers are in charge of different area, we will response periodically and support you
technical service free of charge,
(2)For the quality problem, we will service for you free of charge during the guarantee period.
(3)One year guarantee period and lifetime service.
(4)we solve quality problem in time when genset doesn't work, We insure to help our clients to gain the biggest economic profit.
6. Accessories
1) Application scope of the Accessories, such as 12v190, 8v190, 6190, 6135 and other engine types.
2.)All parts were from original factories or professional factories, complete in specification, keep good quality.
Sincerely welcome to visit our factory and build future cooperation relationship.
Natural gas generator list |
| Gen-set mode | Prime power | Continuous power | Engine Mode | Displacement |
| LNNG10 | 10kw | 8kw | LN2100 | 1.80L |
| LNNG20 | 20kw | 16kw | LN4100 | 3.61L |
| LNNG30 | 30kw | 24kw | LN4105 | 4.32L |
| LNNG40 | 40kw | 32kw | LN6105 | 6.45L |
| LNNG50 | 50kw | 40kw | LN4135 | 8.58L |
| LNNG60 | 60kw | 48kw | LN4135 | 8.58L |
| LNNG70 | 70kw | 56kw | LN6135 | 12.8L |
| LNNG80 | 80kw | 64kw | LN6135 | 12.8L |
| LNNG90 | 90kw | 72kw | LN6135 | 12.8L |
| LNNG100 | 100kw | 80kw | LN6135 | 12.8L |
| LNNG120 | 120kw | 100kw | LN12V135 | 25.75L |
| LNNG150 | 150kw | 120kw | LN12V135 | 25.75L |
| LNNG180 | 180kw | 144kw | LN12V135 | 25.75L |
| LNNG200 | 200kw | 160kw | LN12V135 | 25.75L |
| LNNG300 | 300kw | 240kw | LN6190 | 35.70L |
| LNNG400 | 400kw | 320kw | LN12V190 | 71.45L |
| LNNG500 | 500kw | 400kw | LN12V190 | 71.45L |
| Parameter of natural gas generator |
| Rate Voltage | 400V/230V |
| Phase | 3Phase 4 wires |
| Rate Frequency | 50HZ/60HZ |
| Power Factor | 0.8 |
| Voltage Regulating Range | 95%-105% |
| Voltage Steady State | ≤±2% |
| Voltage Transient State | ≤±10% |
| Voltage Settling | ≤1S |
| Voltage Volatility | ≤±0.5% |
| Frequency Steady State Regulation Rate | ≤0.5% |
| Frequency Transient State Regulation Rate | ≤±10% |
| Heat Consumption | 10mj/kw.h |
| Pressure | 5-20kpa |
| Intake Mode | Natural intake |
| Sparking Mode | Sparking plug |
| Voltage Regulation Mode | automatic |
| Speed Regulation Mode | Electronic speed regulation |
| Lubricating Mode | Pressure and splash |
| Cooling Mode | Closed/open circulating water cooling |
| Starting Mode | 24V electric motor |
| Overhaul Time | ≥30000h |
| Noise | ≤105aB(A) |
| Exhaust Temperature | ≤650°C |
|
|
|
|
|
|
7. FAQ
1) what power of the gas generator do you need?
2) How many hours does it work per day?
3) What are the voltage and the frequency?
4) Do you need to connect to the grid?
5) Or the electricity will be used for the factory equipment?
