Item: Quartz Ozone Generator

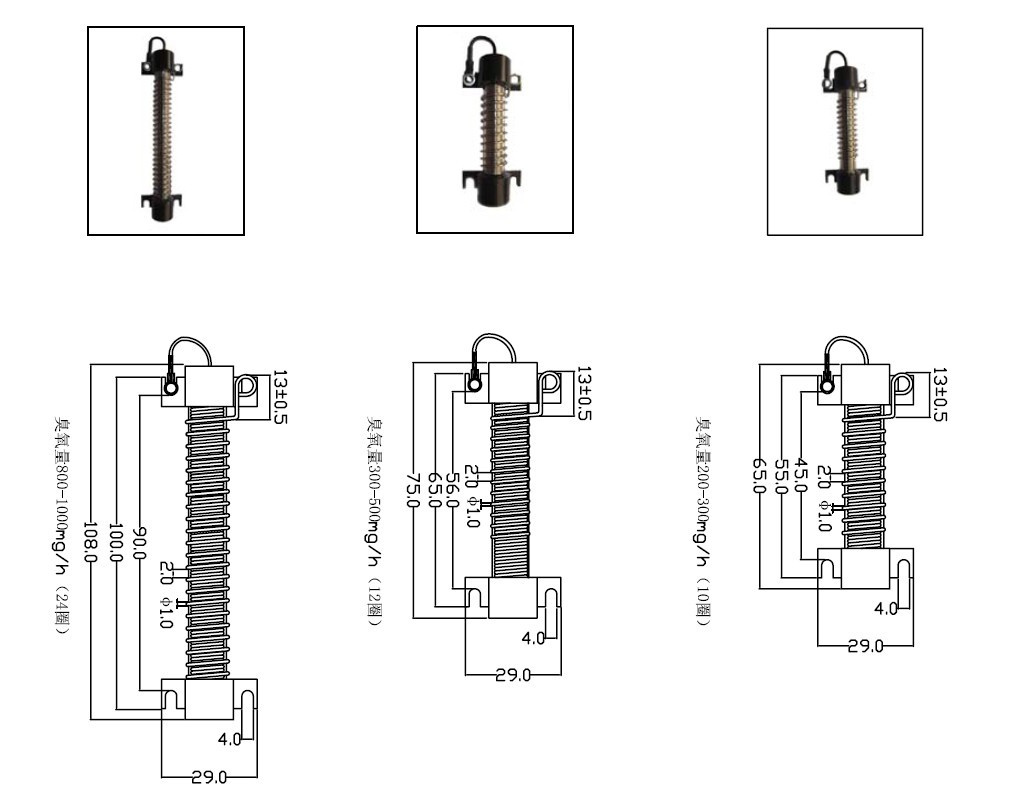

Model 1: SY-G500L (5W with 1 tube)
Model 2: SY-G500H (8W with 2 tubes)
Quartz Ozone Generators Major Characteristics
Main advantages:
(1) Low voltage input, low current, long life, no corrosion compared to the tip discharge ozone;
(2) Stable current, high output ozone compared to the vacuum pipe ozone at the same power;
(3) Safety, nondamageable easily, long life compared to the ceramic plate ozone;
(4) Eternal current to get stable working and long life compared to other glass pipe ozone;
(5) Made with high purity of Quartz pipe to get the long life working, when there is dusts collected after a long period there is lower output, you can clean the surface and get good result again
Technic Specs:
(1) Ozone power input with DC12V, 14KHz/3000-4000V output
(2) Power of 4-5W, output of 450-500mg/h; You can connect two pipes to get more output
(3) Input the ozone power with DC12, equip with a potentiometer, locate the output of 3000-4000V; When read the 330-350mA there is low output ozone to meet the indoor air to remove smoke and odors, the best to use timer; When read 380-400mA there is high output ozone to meet the water treatment in case or space air disinfection;
Applicable Areas:
Air/Water Purifier, Air Conditioner, Refrigerator, Bowl Cabinet, Ozone Machine...
Working Principle: The ozone pipe is working in the high voltage electric field and high frequency magnetic field to ionize the oxygen around the helix pipe, so generate the ozone; We use the unstable atom to decompose, sterilize and remove the odors, gas, virus and smoke etc.
Attentions:
(1) For water treatment, space or case sterilization you can adjust to the high output;
(2) For indoor air purification to remove odors and smoke you can locate the low output, and we suppose you equip with a timer discontinuously, after all the excessive ozone will harm the body;
(3) An electric fan is a must when working to disperse the heat;
(4) Do remember to use at a ventilating place or it will burn at a high temperature;
(5) Do not touch the pipe or leads in case of any electric shock;
(6) Use the SCM to control the circuit in case of any interfering.
