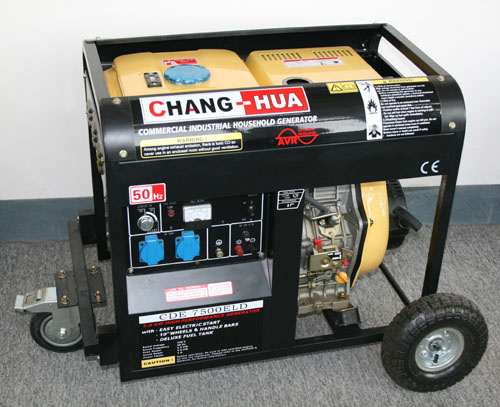

DIESEL GENERATOR:
Features and benefits:
*A new AVR(Automatic Voltage Regulator)delivers non-fluctuating power.
*Powerful ELECAL diesel engine.
*Optional electric starter.
*Low oil pressure alert system shuts down the engine automatically.
| Model | CDE7500ELB |
| Rated frequency (Hz) | 50 60 |
| Rated output(kVA) | 5.0 5.2 |
| Max. ouput (kVA) | 5.2 5.5 |
| Rated voltage (V) | |
| Rated current (A) | 40.9/20.4, 39.1/19.5, 37.5/18.7 45.4/22.7, 43.4/21.7, 41.6/20.8 |
| Rated speed (r/min ) | 3000 3600 |
| Phase NO. | Single phase |
| Power factor cos φ | 1 |
| Insulation grade | B |
| Pole number | 2 |
| Excitation mode | Self-Excitation and constant voltage(AVR) |
| panel type | General Panel |
| DC12V output | Connection pole output |
| Overall dimension:L×W×H(mm) | 715*495*620 |
| Net Weight(kg) | X;95 E;100 |
| Gross Weight(kg) | X;110 E;115 |
| Engine model | CH186FAG |
| Engine type | Air cooled single-cylinder,Vertical,four-storke,direct injection |
| Cylinder NO,-bore×stroke(mm) | 1-86×72 |
| Displacement | 418 |
| Rated power[kW(Hp)/(r/min)] | 6/3000 6.6/3600 |
| Compression ratio | 19.1:1 |
| Lubrication system | pressure splashed |
| Starting system | X:Recoil starter E:Electric Starter |
| Fuel type | 0#(summer)-10#(winter)-20#(chillness)disel |
| Lube oil Brand | CDgrade or SAE10W-30,15W-40 |
| Lube capacity (L) | 1.65 |
| Starting motor capacity (V-kW) | 12V 0.8KW |
| Charging generator capacity (V-A) | 12V 3A |
| Battery capacity(V-Ah) | 12V 36AH |
| Fuel consumption (g/kW·h) | 275.1 281.5 |
| Fuel tank capacity (L) | 12 |
| Continuous running time (hr) | 7 |
Fuzhou Changhua Power Machinery Co., Ltd. Is engaged in research, development, manufacture and selling in various kinds of alternator, engine, generator, water pump. The company with 8, 000 m2 workshop and employs more than 200 staff workers, among which 30 are engineers or technicians. It operates an advanced production line with whole set of inspection and testing equipment and a
Yearly capacity of 200, 000 sets of machines. The company put through EPA, CE, SONCAP and ISO9001, Certificate.
"Reputation is the first, Consumers are supreme"is our persistent working tenet. We have and will serve the consumers with high quality, reasonable price, perfect service and flexible working way.
