1. On or Off Grid Wind Power (300W to 100kw)

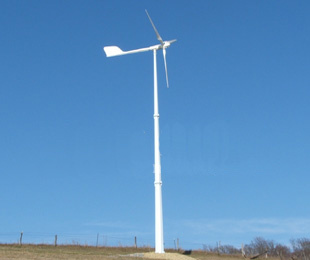

2. Pitch Controlled 10kw wind power generator set characteristics:
The self-developed centrifugal pitch controlled mechanism of Wind turbine adjusts blade pitch following wind rotor rotating speed, and keep wind turbine at rated rotating speed. The wind turbine has a stable output power and safe running and is maintenance free. Wind rotor never goes to over speed even encounter to variable wind speed and strong gale.
3. Match controller
1) PWM CV charging
2) Output stability voltage
3) Electronic brake (Automatic brake)
4) Manual brake
5) Over voltage protection
6) Numeral panel display
|
10kw Wind Power Generator Set |
|
Wind rotor Diameter (m) |
7.6 |
|
Material and number of the blade |
Reinforced fibber glass*3 |
|
Rated power / max power (w) |
10000/12000 |
|
Rated wind speed (m/s) |
12 |
|
Rated rotate speed (r/min) |
220 |
|
Startup wind speed (m/s) |
2.5 |
|
Working wind speed (m/s) |
3~30 |
|
Survived wind speed (m/s) |
60 |
|
Working Voltage (V) |
DC500V/AC380V |
|
Battery voltage (V) / Capacity (Ah) |
500V/500 |
|
Speed regulation method |
Pitched controlled |
|
Stop method |
Brake manual |
|
Generator style |
Three phase, permanent magnet, AC |
|
Turbine Length |
6.1 |
|
Weight (excluding tower) |
450 |
|
AAA Tower height / weight (m/kg) |
12/1200 |
|
Noise Level |
≤ 65dB |
After over a decade´ S developing, Dalian Puyang Generating Set Co., Ltd. has become the leading generating set manufacture in Northern China. We have the largest scale of production and full product specifications and models. Puyang diesel generating set has past the test of China National Internal Combustion Set Quality Test Centre, we have also got the telecommunication facilities network import license of National Telecommunication Department and marine product certification of PRC, and we have been authorized by ISO9001 and WSSN2000 as well.
We have got long-term cooperation partners such as Cummins, Man, Volvo, Doosan, Mitsubishi, Shangchai, Weichai, Laidaong, Marathon, Engga, etc. With self-contained producing conditions, advanced testing equipments and abundant technologies, we can provide diesel generators from 8kw to 1800kw.
At present, we can supply standard diesel generator, automatic starting diesel generator, full automatic telemonitoring diesel generator, removable (mobile) power station, silent / soundproof diesel generator, weatherproof diesel generator, refrigerator car and marine product generating sets, etc. We have the only one full--function testing centre in Northern China, and we strictly follow the standard of GB/T2820 and ISO8528"AC generator set" to examine all functions of generating sets to guarantee 100% pass rate of our products.
