Technical characteristic:
(1) Mute design: Optimum design according to aerodynamics, noise level is lower than 45dB
(2) Breeze starting: Wind rotor adopts 8 pieces design, improve the startup moment, decrease the start up wind speed.
(3) Higher efficiency: Wind rotor adopts diffuse design, increasing the wind speed which goes through the wind rotor by 1.1 to 1.2 times, enhancing the power of the generator by 1.4 to 1.7 times
(4) High safety: The wind turbine adopts high-strength magnets and protection mechanism such as not fricative and speed limiting damper thus enhancing the security and the stability of the wind turbine
(5) High stable: We adopt rotator and accelerated damping mechanism in order to make the wind turbine against the wind neatly and avoiding frequent trembling.

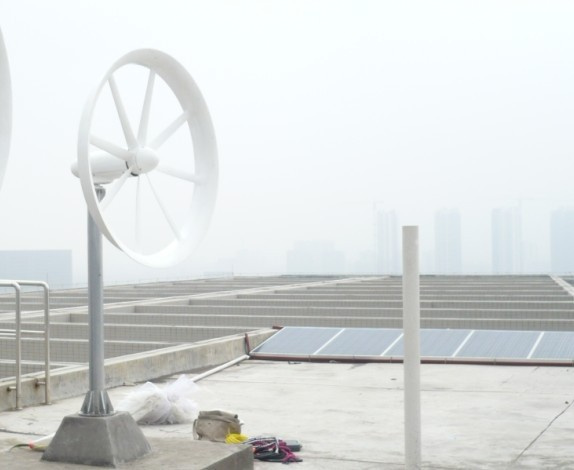

(6) Easy installation: Low weight, small volume, easy installation, suitable to install on roof.
Application field:
Wind and solar hybrid street light system, home application, boats and so on
Blade material & quality |
Reinforced fiber glass*8 |
Wind rotor diameter (m) |
1.25 |
Rated power(kW)/maximum power(kW) |
0.4/0.8 |
Rated wind speed(m/s) |
12 |
Rated rotating speed(r/min) |
500 |
Working wind speed(m/s) |
3-25 |
Start-up wind speed(m/s) |
3 |
Survive wind speed (m/s) |
50 |
Working voltage(VDC) |
24 |
Regulation method |
Damp rate-limit |
Generator type |
Three phase, permanent magnet generator, AC |
Wind turbine body weight(kg) |
35 |
Applicable environment temperature |
-35° C ~+60° C |
Tower height(m) |
≥ 8 |
Noise level ( dB) |
≤ 45 |
After over a decade´ S developing, Dalian Puyang Generating Set Co., Ltd. has become the leading generating set manufacture in Northern China. We have the largest scale of production and full product specifications and models. Puyang diesel generating set has past the test of China National Internal Combustion Set Quality Test Centre, we have also got the telecommunication facilities network import license of National Telecommunication Department and marine product certification of PRC, and we have been authorized by ISO9001 and WSSN2000 as well.
We have got long-term cooperation partners such as Cummins, Man, Volvo, Doosan, Mitsubishi, Shangchai, Weichai, Laidaong, Marathon, Engga, etc. With self-contained producing conditions, advanced testing equipments and abundant technologies, we can provide diesel generators from 8kw to 1800kw.
At present, we can supply standard diesel generator, automatic starting diesel generator, full automatic telemonitoring diesel generator, removable (mobile) power station, silent / soundproof diesel generator, weatherproof diesel generator, refrigerator car and marine product generating sets, etc. We have the only one full--function testing centre in Northern China, and we strictly follow the standard of GB/T2820 and ISO8528"AC generator set" to examine all functions of generating sets to guarantee 100% pass rate of our products.
