TECHNICAL SPECIFICATIONS

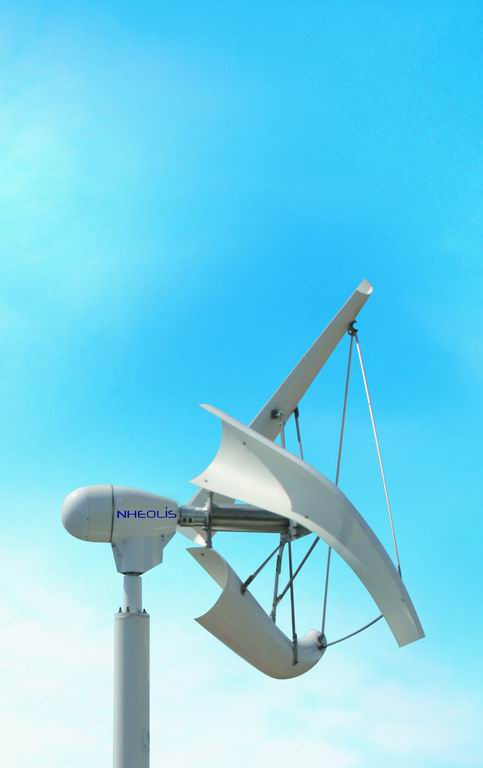

Model: 3D 100 NHEOWIND
Nominal power (W): 3500
Rotor diameter(projected area) (m): 4
Cut-in wind speed (m/s): 3
Nominal speed (m/s): 12
Maximum wind speed ( tested in a wind tunnel)(m/s): 50 (180 km/h)
Number of blades: 3
Total blades weight (kg): 48
Blade length: 2.7M
Blade components: Fiber glass / Epoxy
Generator model: Permanent magnet
Connection: 230 VAC mono
Direction: Self-oriented, no rudder
Sound level (dBA) (12 m/s wind speed ): 30
Total weight (kg) with a 8 m high mast: 300
ATTN: WE JUST SELL THE WIND TURBINE WITHOUT THE MAST. IF YOU WANT THE MAST, IT IS OK!
Zhangzhou Nheolis Technology Co., Ltd is a sino-foreign(China-France)joint venture company. Main investors are Xiamen Kehua Hengsheng Co., Ltd and Nheolis SAS( France). Now our company is working on the research & manufacturing of medium&small wind turbine and use the technology of small wind turbine from France Nheolis. We produce the medium&small wind turbine- "NHEOWIND 3D100CP", "NHEOWIND 3D 50", " NHEOWIND 3D 100" which belong to our intellectual property right.
Nheolis R&D centre is located in France Marseilles, which specializes in the research of medium&small wind turbine and achieves the technology assistance from International renown research centres- French National Aerospace Research Centre (ONERA ), French National Center for Scientific Research (CNRS) and Scientific and Technical Centre for urban environments(CSTB). Nheolis manufacturing centre is in Fujian, China. As the China manufacturing centre of Nheolis, we own the good manufacturing technology basis. Now our products have been sold &distributed to all over the world and establish the after-sale network-Europe, USA, etc. With the tenet "innovative service, innovative technology, superior quality", we actively expand the market of wind turbine and achieve the technology breakthrough: Unique 3D blade design( our intellectual property right)makes the wind turbine start-up at the low speed; Suitable for much wider span of wind speed; No noise, integrating to city environment easily.
