TECHNICAL SPECIFICATIONS

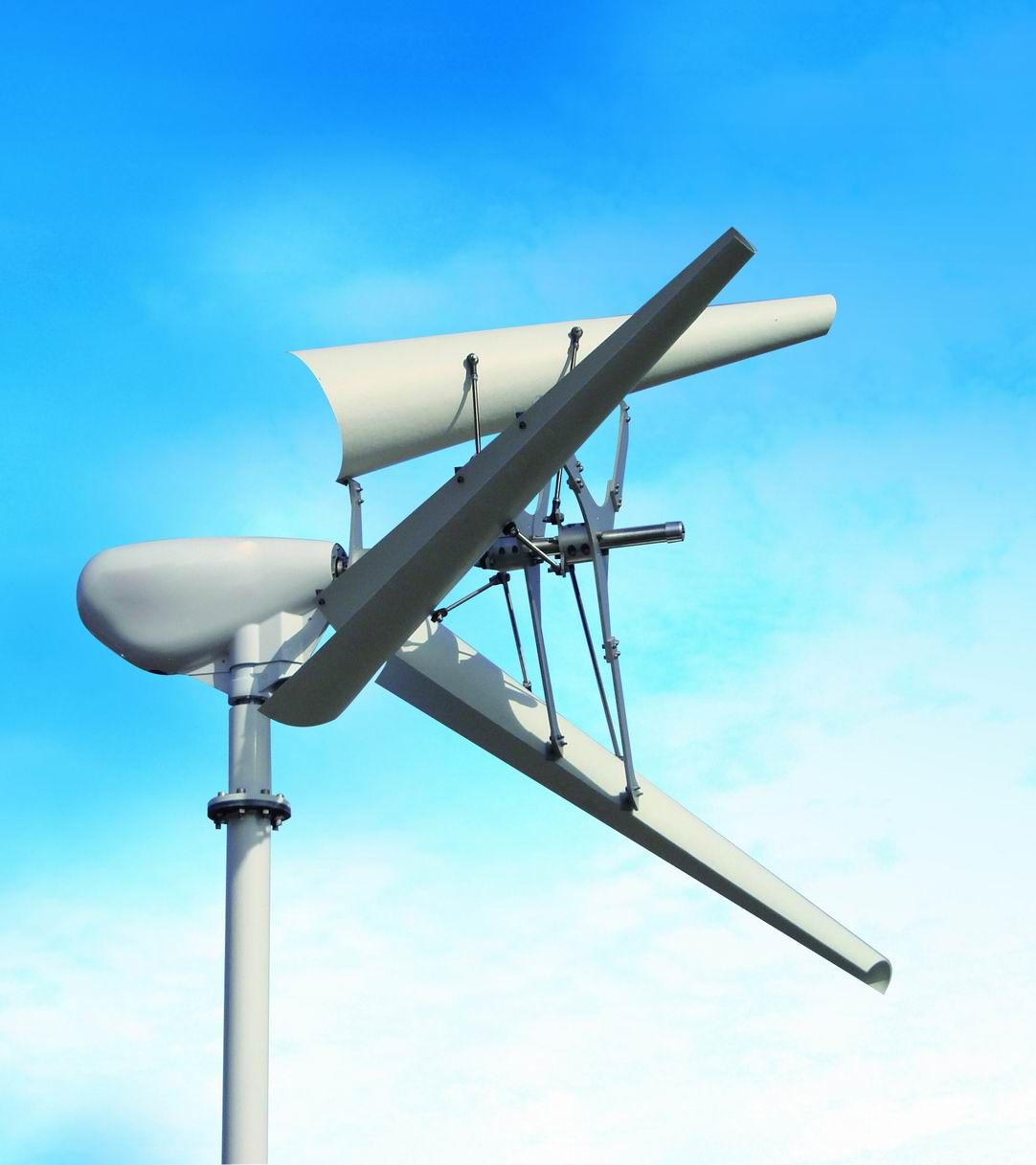

Nheowind 3D100 CP
Nominal power out 1.8 kW
Weight 165 kg
Rotor diameter 3 m
Swept area 7.07 m2
Type HAWT
Blades 3 - straight
Blades length 2 m
Nominal Speed 115 rpm
Rated speed 80 to 300 rpm
Orientation Self Oriented (no rudder)
Nominal wind speed 43 km/h (12 m/s)
Wind speed range 9 - 90 km/h (2.5 - 25 m/s)
Survival wind speed 180 km/h (50 m/s)
On-Grid Aurora Power One Inverter 230 V, 50 Hz, 1 phase or equivalent
Off-Grid XTM Studer Inverter 230 V, 50 Hz, 1 phase or equivalent
Sound emission <35dB @ 12 m/s
Color White (other RAL color available)
MATERIALS
Blade Composite Fiberglass
Nacelle Aluminium
Hull Thermoforming ABS
Fixations Stainless steel
Tower 11 m conical self standing, galvanised steel, painting upon request
Warranty 5 years
Zhangzhou Nheolis Technology Co., Ltd is a sino-foreign(China-France)joint venture company. Main investors are Xiamen Kehua Hengsheng Co., Ltd and Nheolis SAS( France). Now our company is working on the research & manufacturing of medium&small wind turbine and use the technology of small wind turbine from France Nheolis. We produce the medium&small wind turbine- "NHEOWIND 3D100CP", "NHEOWIND 3D 50", " NHEOWIND 3D 100" which belong to our intellectual property right.
Nheolis R&D centre is located in France Marseilles, which specializes in the research of medium&small wind turbine and achieves the technology assistance from International renown research centres- French National Aerospace Research Centre (ONERA ), French National Center for Scientific Research (CNRS) and Scientific and Technical Centre for urban environments(CSTB). Nheolis manufacturing centre is in Fujian, China. As the China manufacturing centre of Nheolis, we own the good manufacturing technology basis. Now our products have been sold &distributed to all over the world and establish the after-sale network-Europe, USA, etc. With the tenet "innovative service, innovative technology, superior quality", we actively expand the market of wind turbine and achieve the technology breakthrough: Unique 3D blade design( our intellectual property right)makes the wind turbine start-up at the low speed; Suitable for much wider span of wind speed; No noise, integrating to city environment easily.
