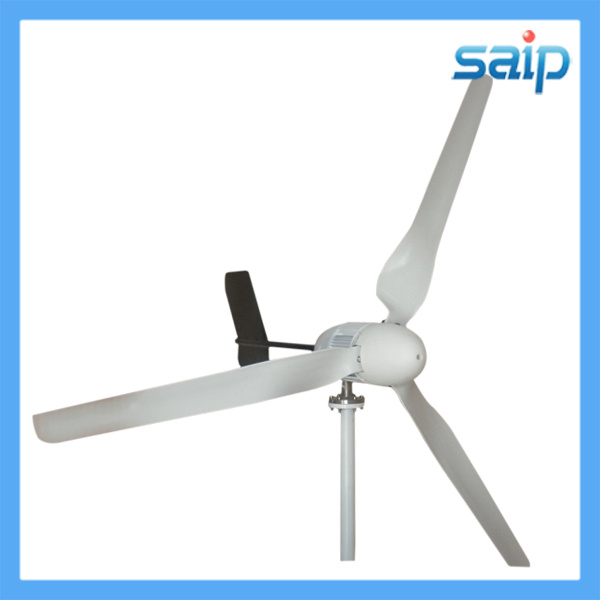

Newest 1kw Wind Energy Generator Horizontal Wind Turbine (EW1000)
FEATURE:
~~~~~~~~~~~~~
1.300W, 400W, 600W, 1000W
2. CE, RoHS
3.2 Years Warranty
4. OEM
Advantage:
~~~~~~~~~~~~~
- Blades with Nylon molding;
- The leaves install the each using three screws, easy installation;
- Unique fuselage shockproof design, smooth operation;
- Pole flange connection, simple and reliable;
Widely used in street lights public lighting systems, communication base stations, sewage treatment station, toll station, monitoring indication system ( traffic signals, traffic signals, security monitoring, forest fire monitoring).
Description:
~~~~~~~~~~~~~
---Adopt high-quality and high-strength permanent materials to ensure high energy conversion efficiency.
---Adopt high-quality and high-strength aluminum alloy to make the unit light weight and easy installation.
---The fiber-glass blades have the advantages of great intensity and excellent fatigue resistance.
---Stainless steel shaft and screws to avoid rust and corrosion.
---And the surface is coated with pollution-free material. Working environmental temperature from -20C-50C.
----Electromagnetic brake is with the function of over-speed and over-current protection.
|
Rated Power |
1000W |
|
Rated Voltage |
12V/24V |
|
Rated Current |
41A/20A |
|
Rotor Diameter(m) |
2m |
|
Started Wind Speed(m/s ) |
2.5m/s |
|
Rated Wind Speed(m/s) |
13m/s |
|
Safty Wind Speed(m/s) |
35m/s |
|
Working Form |
Permanent Magnet Synchronous Generator
Rated Speed(RPM): 400 |
|
Direction of Rotation |
Clockwise |
|
Blades Qty |
3pcs |
|
Blades Material |
Glass Reinforced Polypropylene Material
/Glass Fiber Reinforced Plastic |
|
Generator Material |
Aluminum Alloy & Stainless Steel |
|
Cable Tower Height(m) |
6m |
|
Suggested Batteries Capacity |
12V200AH * 4 |
|
Inverter Type(included) |
Single-phase Sinusoidal Wave |
