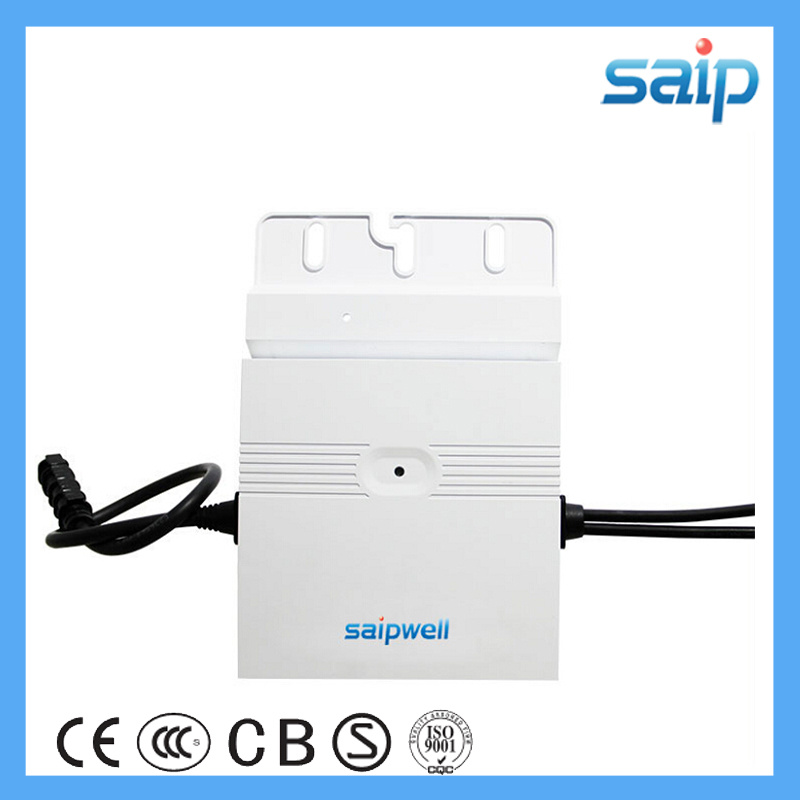

Newest Micro Power Inverters &Inverter Generator For Sale(SP-M250)
Features
Long lifetime and increased reliability
Maximized energy harvest
Reduced power loss with shade, dust and debris
Simple design, with Plug and Play chain installation
Improved safety with no high voltage hazards
Easy installation
Constant remote monitoring at PV module level
*******************************************************************************************************************
Product Details
High Efficiency
Tracking accurate up to 99.9% can make SP-M250 inverters work more flexible and effective. All rooftop modules areas could be used for generating, it also could minimize the capacity consumption due to shade hiding. Max. Efficiency is up to 94.5%, which means more transportation power than others solar device. Saipwell photovoltaic inverter is your most wise choice.
High Reliability
Saipwell new energy is founded by Germany Doctor, composed of home and abroad outstanding elite. Under the German management system, Saipwell inverter is featured by high efficiency, High quality, high reliability, complying with the VDE 0126-1-1, RD1663, ENEL2010, C10/11, G83/1, AS4777, TF3.2.1, etc. Qualification, product repair rate is less than 1%. Due to the high products standard, warranty time could extend to maximum 25 years from regulated 5 years.
High Stability
Saipwell inverter high quality casing can provide the best protection for insider electronic components, besides, by IP65 protection, it can be installed and run safely in the indoor and outdoor. And no afraid of any bad environment, it always create a best working conditions for you...
*******************************************************************************************************************
About us
Saipwelll serial inverters are of high reliability and efficiency. The inverters are aimed at system integrators and end users who require high performance solar inverter for small and middle photovoltaic power plants and industrial and commercial buildings. The inverters are available from 1.5 kW up to 20 kW, and are optimized for cost-efficient up to megawatt power plants.
*******************************************************************************************************************
1. Can I get samples?
Of course, you can get sample to test, but you need pay sample cost sample price (same as wholesale price), but don't worry, when you place a formal order, we will return the sample fee.
2. How long is the delivery time?
Based on our MOQ, we will be delivered in 2- 7 working days.
|
Model |
SP-M250 |
|
Input Data(DC) |
|
Recommended Input Powe |
160-300W |
|
Maximum Input DC Voltage |
54V |
|
Min./Max. Start Voltage |
26V/50V |
|
Peak Power Tracking Range |
26V 40V |
|
Operating Range |
22V 50V |
|
Maximum DC Short Circuit Current |
15A |
|
Maximum Input Current |
10A |
|
Output Data (AC) |
|
Maximum Output Power |
248W |
|
Nominal Output Current |
1.08A |
|
Maximum Output Current |
1.11A |
|
Nominal Output Range |
Matching Grid Demand |
|
Power Factor |
> . 0 99 |
|
Total Harmonic Distortion |
< 3% |
|
Maximum Units Per Branch |
15 |
|
Efficiency |
|
Peak Inverter Efficiency |
95 50 . % |
|
CEC Weighted Efficiency |
94 50 . % |
|
Nighttime Power Consumption |
120mW |
|
Mechanical Data |
|
Enclosure Environmental Rating |
IP65 |
|
Ambient temperature range |
-40 °C~+ 65°C |
|
Operating Temperature Range internal) |
- 40°C~+ 85°C |
|
Dimensions (WxHxD) |
234mm 163mm 26mm |
|
Weight |
1.6kg |
|
Features |
|
Communication |
PLCC Power Line Carrier Communication |
|
Warranty |
15 years |
Yueqing Saibang Electric Co., Ltd. is a subordinate of saip electric group company limited, which is wholly invested by our group company. Depending on our group company's advanced technology and equipment introduced form developed countries, we have tremendous technical capabilities. Buondi mainly develops and produces new source products, including Solar Generator, Solar charge controller, Wind Generator, Solar Inverter, Solar tracking systems and so on.
