.Factory directly supply
2.CE&ISO9001 approved
3.Various kinds&accept OEM design
4.Aviation Technology,Military Quality
5.Rapid startsCharacteristics:
1) Powered by air-cooled 4-stroke direct injection diesel engine
2) Its advanced direct fuel injection adopting minimized pump and nozzle insures long life and provides for low fuel consumption, easy starting, quiet running.
3) Dynamic balancer reduces the vibration to a minimum and mades its running more stable and smoothly
4) No fuse circuit breakers for overload protection and convenience
5) Large silent muffler and balancer shaft inside and high efficient noise-proof materials, vibrations, reducing structure combine to form a silent machine.
6) Large fuel tank ensures hours of continuous running

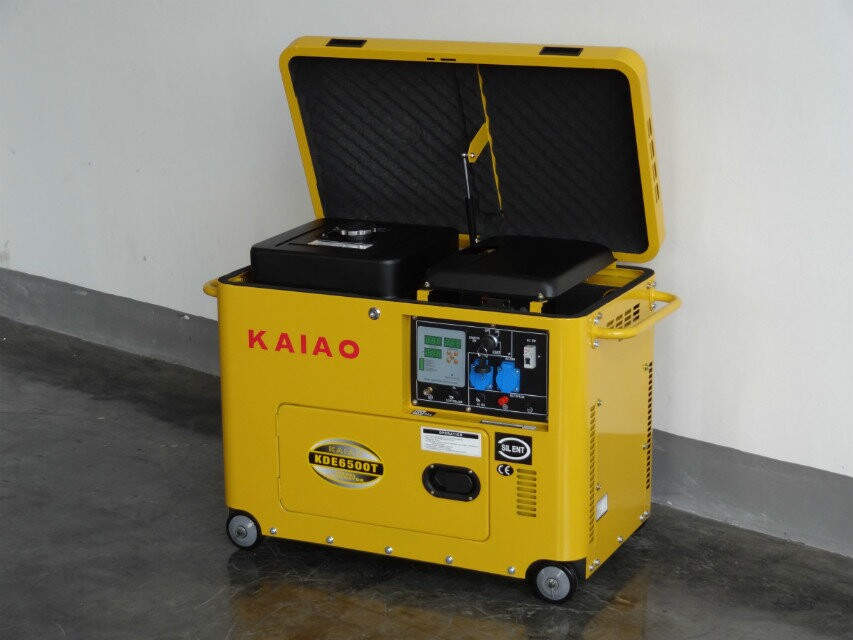

Diesel generator set KDE6500T |
Model |
KDE6500T |
Frequency (Hz) |
50 |
60 |
Output power (KVA) |
4.5 |
5 |
Max. Power(KVA) |
5 |
5.5 |
Voltage (V) |
115/230 |
120/240 |
Current (A) |
39.1/19.6 |
41.7/20.8 |
Engine speed (r/min) |
3000 |
3600 |
Phase |
Single |
Power factor(cosφ) |
1 |
Excitation system |
Self-excited constant voltage |
Noise level (7m) |
DB (A): 72 |
Fuel tank capacity (L) |
12.5 |
Structure |
Silent |
Panel |
Ordinary |
Outputsocket |
Two |
DC12V output |
Terminal post |
Engine Model |
KA186FA |
Bore*stroke (mm) |
86 *72 |
Displacement (L) |
0.418 |
Power (KW) |
5.7/3000 |
6.3/3600 |
Fuel consumption rate (g. KW/h) |
275.1 |
281.5 |
Compression ratio |
19 |
Lubrication system |
Spring |
Engine starting system |
Electric starter |
Diesel oil model |
Summer: 0#, winter: -10# |
Lube oil model |
SAE10W-30 (above CD grade) |
Lube oil capacity (L) |
1.65 |
Battery capacity(V-AH) |
12V-36Ah |
Net weight (KG) |
158 |
Dimension(L*W*H) |
912×532×740 |
Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and manufacture of small special:
Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),
Air-cooled diesel generator set(2KW--8.5KW)
Air-cooled diesel engine farming tillers(4HP, 5HP, 8HP)
Air-cooled diesel generator light tower(400W-10000W)
Air-cooled gasoline generator (650W-5000W)
Water-cooled Diesel Generator(10kw-100kw),
Water pump unit(2 '', 3 '', 4 '')
Electric welding set, construction machinery, and gardenging machinery, farming machinery etc.
Electric welding set, construction machinery, and gardenging machinery, etc.
Kaiao lies on the beautiful Tai-Lake, which allows traffic convenience. Occupying a site area of 35 square meters with a gross floor area of 20000 square meters, we have more than 150 staff members, among which three are around 20 are professional technicians. Advanced production lines and inspection equipments allow high quality productions.
We insist on technical innovation promoting development collectively. We have a specific goal: Exerting our effort to offer our customers the high-quality productsand services.
Wuxi Kaiao Power Machinery Co., Ltd. Establishes the strategic policy emphasizing on quality and service, and the managemeng concept "cooperating, sincerity, mutualbenefit and enterprising". Create value for both our customers and us through innovation!
