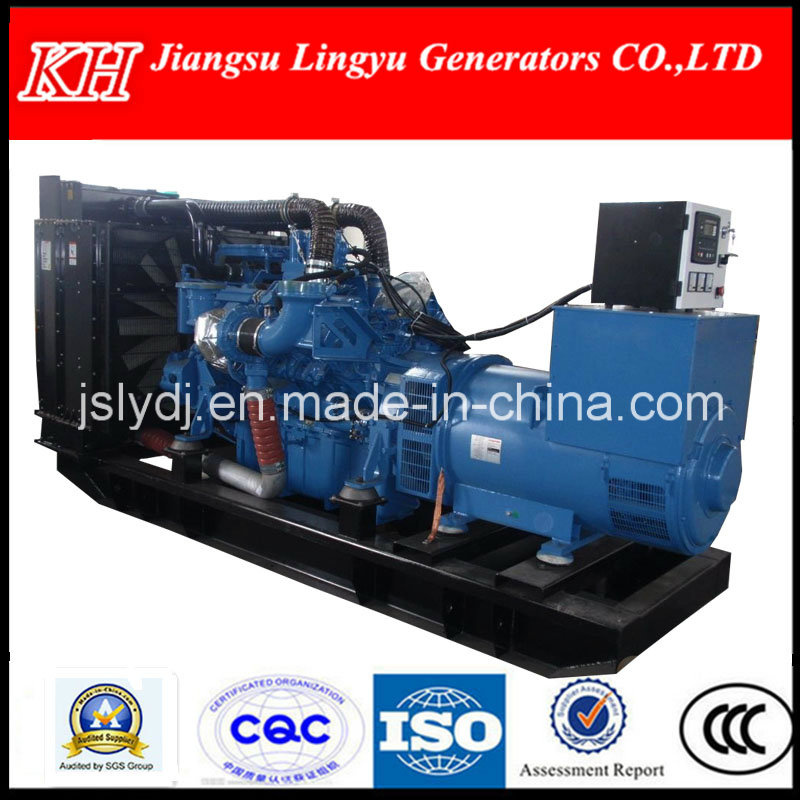

1830KW/ 2287.5KVA MTU Diesel generator set
Engine introduction:
MTU, belonging to Daimler Chrysler (Mercedes) group, is a famous manufacturer of engine in the world. They introduced a series of advanced technology such as electronic monitoring management system MDEC and fuel injection system with common rail style, which makes MTU engine have the optimal fuel consumption rate, the best cold starting performance, and the overhaul period of up to 30000 hours.
Genset Information:
Model | 16V4000G63 |
Prime Power(KW) | 1830KW |
Voltage Class | 400V |
Electrical Efficiency | 35.5% |
Heat Efficiency | 52.9% |
Overall Efficiency | 88.4% |
Frequency/Speed | 1500rmp |
Storage Battery Quantity Specifications | 2x80Ah |
Gen-set Dimention(mm) | 4950*1670*2380 |
Weight(KG) | 13430KG |
Engine:
Model | KHI1830-GF |
Feature | In-line 6 Cylinder, 4 stroke, Turbocharge mid-cooling. |
Ignition System | Kingbang |
Speed Regulating System | Kingbang |
Direction of Rotation | Anticlockwise. Face to flywheel side |
Bore & Stroke(mm) | 170*210 |
Displacement(L) | 5.9 |
Compression Ratio | 10.5 |
Fuel type | CNG (Compressed Natural Gas) |
Air inlet | turbo |
Faraday Alternator:
Model | KHI1830-GF |
Prime Power(KW) | 1830 |
1Hour Overload Capacity | 110% |
Power Factors | 0.8 |
Frequency | 50Hz@1500rpm/60Hz@1800rpm |
Voltage | 400V |
Insulation class | H |
Protection class | IP23 |
Environment temperature | 40 degree centigrade |
Benefits of Silent Type Generator Sets:
1. Stable function, convenient service;
2. Low operating cost results in optional economy;
3. Gets the job done wherever you are;
4. Ease of installation, operation and maintenance.
Jiangsu Lingyu Generators Co., Ltd. (Shanghai Lingyu Brushless Generators Co., Ltd.) is a new and modern professional generator manufacturer integrating research & development, teaching, and production of brushless generator. The company is located in Chengbei Industrial Park, Jiangdu District, in the east of Yangzhou, a well-known city with long history. As being close to Beijing-Shanghai Expressway, Nanjing-Qidong Railway, Yangzhong Jiangdu Airport, bordering to Changjiang River, with Tongyang Canal running through it from east to west, and Beijing-Hangzhou Canal through south to north, it boasts of convenient transportation.
To know more details, please feel free to contact us by the following way:
FAX:0514-86827818
TEL:0514-86826088
MOBILE:+86-15052559798
Jiangsu Lingyu Generator Co., Ltd. (hereinafter referred to as "Lingyu") is professional manufacturer of synchronous brushless alternators and diesel generating sets. Our workshop covers 100, 00sqm, and supply capacity can over 8000 units per year. And we are two hours away far from Shanghai port.
Lingyu produces Stamford type brushless alternators, range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800rpm, voltage 110V-690V, class H, IP23, all easily coupled with Industrial&Marine, Diesel&Gasoline engines, world first-class of Cummins, Lovol, Volvo Penta, MTU, Deutz, MAN, Caterpillar, Yanmar, Kubota, Lister Petter, Doosan, etc, and our alternator are widely used in industry, commercial, real estate, hospital, hotel, railway, telecommunications, data-centers and mining etc.
Lingyu people treat Quality and Service as enterprise' S life, and has competitive advantages
1) Filters reliable suppliers with quality materials,
2) 100% quality copper wire, bearings, etc,
3) Strict Quality Control by QC. Dept.
4) comformity to IECBS 5000, VDE 0530, IEC 34, NEMA MG1-22, CSA C22.2-100 and ASB59.
Certified of CCC, CE, TUV, EPA, SGS
5) 2 years warranty-the first supplier who can offer in China.
6) Ships general parts within 3days upon customer' S complaint
Lingyu generators are being exported to Europe, Africa, and many other regions, obtaining great corporate reputation and long-terms partner cooperations.
