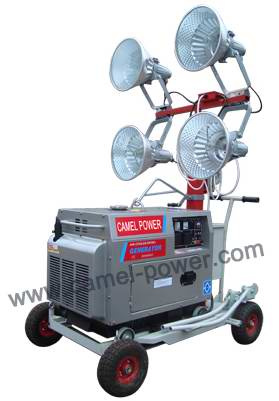

Engine Vertical, air cooled, four stroke
Make/Model KM186FA
Cooling AIR
Kw(HP) at Continuous 5.7(7.8)/3000 RPM, 6.3(8.6)/3600
Revolution(RPM) 3000/3600
Fuel Capacity(Liter) 15
Contineious Run Time 8 hours
Number of Cylinders 1
Displacement L(cu, in) 0.418
Engine shutdown protection low oil pressure
Exhaust gas emmission EPA APPROVAL is optional
Alternator
Make/Model CAMEL POWER/BRUSHLESS TFDW-5KVA
Output 5KVA
Frequency 50/60
Insulation F
Type of bearing/Brush Single/Brushless Self excitation
Available Receptacles 220V/45A
Lighting METAL HALIDE, SINGLE ENDED, 400W
Brand
Type of Lamp METAL HALIDE, SINGLE ENDED
Lamp No. 4
Housing Materials Aluminum Reflector Housing
Output 220, 000 Lumens/Total NEMA 6 3-5 Acres at an average 15 LUX
Mast Tower
Type Multi-Sections Telescoping mast 6 M
Total Height 6M, Can be rotaed 360 degree
Operate for Extends Hand operated winch with safety brake
Traveling Retracts and Stows Horizontally for travel tower is locked into position to prevent during travel
Outriggers
Trailer/Cabin With the outriggers extended and all jack down
Wheel and Rim 65/25-5''
Towing Type Manual
Cabin Silent generator set canopy
Electric-Shutdown protection
Electric MCCB-MCB Emergency Stop IP 56
Weight 450KG
Packing Size 1600*800*1100MM
20GP 14 SETS
Our company is a professional manufacture of general engines, generator sets, light towers and construction machinery. Our technicians have ten years work experience in the machinery field.
We are making efforts to supply quality products and good service for our customers. Welcome to visit us!
