Applications:
1) Air-conditioning, TV, Refrigerator, Washing machine, Computers, Printers, Fans, Water pump, Electric cooker, Electric motor, Electric drill, Lighting, etc.
2) Household electricity, Traffic, Communication, Market, Building, Field, Offic, Farm. Etc.
Features:
1. Solar Penal: Module efficiency up to 17.1% achieved through advanced cell technology and manufacturing capabilities. Sealed with high transparency low iron tempered glass, anti-aging EVA, high insulation TPT, with the anodizing (or plating finish), High stability with guaranteed+/-3%power output tolerance, ensuring return on investment, Withstands high wind-pressure and snow load;
2. Solar Battery: High-quality sealed valve-regulated lead-acid batteries, the professional design and technology, excellent deep discharge performance, capacity does not decay, no memory, 3-5 years of life, 2 -year warranty;
3. Solar Controller: The latest process technology, precise over-discharge, overcharge, overload, Temperature compensation, etc., Protection function, exquisite beauty indicator, easy to distinguish the solar system working state.
4. Inverter: Inverter technology of pure sine wave, AC power output equal to the commercial power supply, with high conversion efficiency above 90%(The market a lot of inverter output AC power is not stable, long-term use can damage electrical appliances). Precise protection with a low voltage, high voltage, 200% instant anti overload ability, the operating temperature range -10º C~50º C.
5. Beautiful appearance, Easy to install.
Quality and Safety:
1. Solar Panel: 25-year transferrable power output: 5years/95%, 12years/90%, 18years/85%, 25years /80%. Warrants 6.7% more than the market standard over 25years. 8-year material and workmanship warranty.
2. Rigorous quality control meeting the highest international standards;
3. ISO9001: 2008, ISO1400: 2004(Quality Management System)certified factories manufacturing world-class products;
4. Products meet international standards and through professional testing and certification authority (SGS, IEC612215, IEC61730, CE, TUV).
Recommended Applications:
1. On-grid utility systems;
2. On-grid commercial systems;
3. Off-grid ground mounted systems;
4. Our products are widely used in solar lighting, lamps, household electricity, traffic, communication, meteorological, building and photovoltaic power plants and other fields.
Quality assurance testing
1. Thermal cycling test
2. Thermal shock test
3. Thermal/Freezing and high humidity cycling test
4. Electrical isolation test
5. Hail impact test
6. Mechanical, wind and twist loading test
7. Salt mist test
8. Light and water-exposure test
9. Moist carbon dioxide/ sulphur dioxide.
Item No. |
Specification |
Specification |
Parameters |

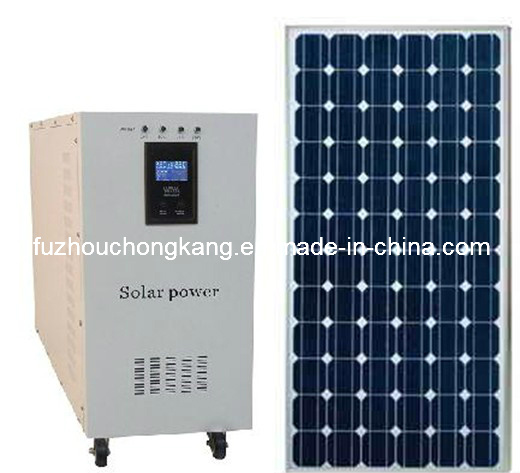

FC-MA4000-B
Photovoltaic off grid system
(Max Output power 4000W)
Applications:
Air-conditioning,TV, Refrigerator,Washing machine,Computers,
Printers,Fans, Water pump,
Electric cooker, Electric
motor, Electric drill,Lighting,
etc. |
Solar Panel |
Polycrystalline |
3600W/144V (8 year quality warranty) |
Solar Battery |
SMF lead acid batteries |
1920AH/12V (2 year quality warranty) |
Solar Control System |
Solar Controller |
40A/96V |
Inverter |
AC4000W/DC96V |
LCD Parameters |
ACV,DCV,HZ,KW,etc |
Control Box |
Iron painting |
Output Voltage Selectable |
AC110V/220V/230V/240V |
Frequency selectable |
50HZ/60HZ |
Accessories |
Installation Operating Instructions |
Solar panels dedicated plug, convergence cabinet |
Working temperature |
Solar panels -40ºC~80ºC |
Control system -10ºC~50ºC |
Wooden packing |
Solar Panel(L.W.H):2100x1100x900mm |
1pcs |
Control System (L.W.H):580*360*560mm |
1pcs |
Battery Box(L.W.H):1450*870*850mm |
1pcs |
Gross Weight |
991kg |
Quality Certification |
Products through the European CE, TUV quality testing and certification |
Optional Configuration |
Dual power automatic switching function(0.4S only), external battery charging apparatus |
Any customizing request, such as sample, your own brand name, logo and package can be made here. |
