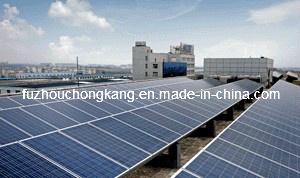

17kw Solar Three-Phase Grid Connected System
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Product Description
This three-phase grid-connected system has 500W-100KW different specifications, He is the function of the solar panels generated DC power converted to AC380V power supply, incorporated into the commercial power supply, or to the family, office use, By selecting one or more grid systems, you can make up your home grid-connected PV systems and large, medium and small-scale photovoltaic power plants, With high precision of maximum power point tracking (MPPT), Ensure that the solar panels for 98% maximum efficiency, LCD Parameters: Grid voltage, grid frequency, the machine model, the output power, current, day generating capacity, total generating capacity of this system, solar panels input voltage, the user can be very easy to understand the system 's operating status, Integrated RS485/RS232 communication interface, PC software allows you to achieve remote monitoring system status and fault indications.
Solar panels:
1. Module efficiency up to 17.6% achieved through advanced cell technology and manufacturing capabilities. Sealed with high transparency low iron tempered glass, anti-aging EVA, high insulation TPT, with the anodizing (or plating finish), High stability with guaranteed+/-3%power output tolerance, ensuring return on investment, Withstands high wind-pressure and snow load;
2. Warranty: 25-year transferrable power output: 5years/95%, 12years/90%, 18years/85%, 25years /80%. 10-year material and workmanship warranty.
3. ISO9001: 2008, ISO1400: 2004(Quality Management System) certified factories manufacturing world-class products;
4. Products meet international standards and through professional testing and certification authority ( IEC612215, IEC61730, CE, TUV RoSH).
Photovoltaic grid connected system structure diagram
|
Item No. |
Specification |
Specification |
Parameters |
FC-GA17000-T
Solar grid connected system
(Max Output power 17KW)
In accordance with the sunshine 5 hours, the temperature at 25º C
or more criteria, can generate power 85KW. |
Solar Panel |
Polycrystalline/Mono |
17000W (5 year quality warranty) |
|
grid connected system |
Inverter Control system |
AC17KW/DC520V |
|
LCD Parameters |
ACV, DCV, Current, KW. etc |
|
Maximum input current |
64A |
|
Output voltage selectable |
AC330V~480V |
|
Frequency selectable |
50HZ/60HZ |
|
Accessories |
Installation Operating Instructions |
|
Solar panels connecting plug |
|
Working temperature |
Solar panels -40º C~80º C |
|
Control system -10º C~50º C |
|
Wooden packing |
Solar Panels (L. W. H): 1750x1100x1050mm |
4PCS |
|
Control Box (L. W. H): 570*270*780mm |
1PCS |
|
Gross Weight |
1575kg |
|
Quality Certification |
Products through the European CE, TUV, RoSH quality testing and certification |
|
According to customer requirements, different specifications of large and medium-sized solar grid power plants to choose from. |
| Prod Model: |
FC-GA17000-T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Solar Panels Size(L*W*H): |
1750*1100*1050mm(4PCS) |
| Control Box Size(L*W*H): |
570*270*780mm |
| Gross Weight: |
1575kg |
| System: |
Utility Grid Connect system |
