Our ozone products have been applied to the fields of running water treatment, sewage treatment, industrial oxidation, disinfection of swimming pool, papermaking and laminating, waste gas treatment and space disinfection and so on. Many products of our company have been exported to many countries, such as Turkey, Indonesia, Brazil, Italy, Syria, Iran, India, Australia, Sudan, Israel, Ghana and so on.
| Air Source | | | |
| Power supply input | 380V/3ph/50Hz | Ozone concentration | 16-22 mg/L |
| Work Voltage | 4.5kV | Inlet Flow | 45-65m3/hkgO3 |
| Work Frequency | 800Hz | Power consumption | 16-18kW/kgO3 |
| Dew point | -45 ºC | Flow of cooling water | 3-4T/hkgO3 |
| Temperature of inlet | 20 ºC | Temperature of cooling water | below 30 ºC |
| Work pressure | 0.05-0.15MPa | Temperature rise | 4-6 ºC |
| | | | |
| type | Ozone output g/h | Volume( mm ) | Interface caliber |
| CF-G-2-50g | 50 | 800*600*1600 | Rc1/2 |
| CF-G-2-80g | 80 | 800*600*1600 | Rc1/2 |
| CF-G-2-100g | 100 | 1100*850*1700 | Rc1/2 |
| CF-G-2-150g | 150 | 1100*850*1700 | Rc1/2 |
| CF-G-2-200g | 200 | 1200*850*1700 | Rc1/2 |
| CF-G-2-250g | 250 | 1200*850*1700 | Rc1/2 |
| CF-G-2-300g | 300 | 1300*950*1700 | Rc1/2 |
| CF-G-2-400g | 400 | 1300*950*1700 | Rc3/4 |
| CF-G-2-500g | 500 | 1800*950*1900 | Rc3/4 |
| CF-G-2-600g | 600 | 1800*950*1900 | Rc3/4 |

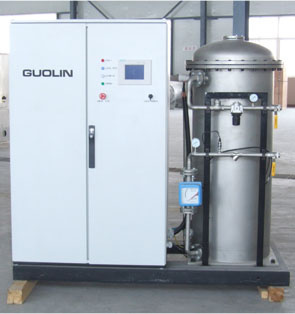

| CF-G-2-800g | 800 | 2000*1050*2100 | PN10/DN25 |
| CF-G-2-1000g | 1000 | 2000*1050*2100 | PN10/DN25 |
| | | | |
| Oxygen source | | | |
| Power supply input | 380V/3ph/50Hz | Ozone concentration | 80-100 mg/L |
| Work Voltage | 4.5kV | Inlet Flow | 10-13m3/hkgO3 |
| Work Frequency | 800Hz | Power consumption | 8-10kW/kgO3 |
| Dew point | -45 ºC | Flow of cooling water | 1.7-2T/hkgO3 |
| Temperature of inlet | 20 ºC | Temperature of cooling water | below 30ºC |
| Work pressure | 0.05-0.15MPa | Temperature rise | 4-6 ºC |
| | | | |
| type | Ozone output g/h | Volume( mm ) | Interface caliber |
| CF-G-2-100g | 100 | 800*600*1600 | Rc1/2 |
| CF-G-2-160g | 160 | 800*600*1600 | Rc1/2 |
| CF-G-2-200g | 200 | 1100*850*1700 | Rc1/2 |
| CF-G-2-300g | 300 | 1100*850*1700 | Rc1/2 |
| CF-G-2-400g | 400 | 1200*850*1700 | Rc1/2 |
| CF-G-2-500g | 500 | 1200*850*1700 | Rc1/2 |
| CF-G-2-600g | 600 | 1300*950*1700 | Rc1/2 |
| CF-G-2-800g | 800 | 1300*950*1700 | Rc3/4 |
| CF-G-2-1000g | 1000 | 1800*950*1900 | Rc3/4 |
| CF-G-2-1200g | 1200 | 1800*950*1900 | Rc3/4 |
| CF-G-2-1600g | 1600 | 2000*1050*2100 | PN10/DN25 |
| CF-G-2-2000g | 2000 | 2000*1050*2100 | PN10/DN25 |
Qingdao guolin industry Co., Ltd. is an ozone product manufacturer with the most advanced ozone technology in China. The headquarters is in qingdao, China.
Qingdao guolin industry Co., Ltd. Are mainly engaged in the design of ozone project, manufacturing, installation, debugging and maintenance of ozone equipments. The company can ensure the advanced technology and reliable operation of ozone equipments which are sold in the Chinese market by relying on technical advantages of qingdao research center of ozone applied engineering technology. Qingdao guolin ozone equipment Co., Ltd. Assures its patron of products with high quality and the best after-sale service with over ten years experiences in manufacturing and operation of ozone generator.
Qingdao guolin industry Co., Ltd. has production base covering 13, 000 square meters. We produce the dta tubular dielectric, ozone generation device, high voltage transformer and install power supply system in this production base. After that, the ozone generators will be tested and debugged. Then the machines will be handed over to customers after 72-hour normal operation. According to different demands of customers, we can design and produce ozone generators with different types from 10g/h to 50kg/h. The company can produce over 500 sets of equipments every year.
Our ozone products have been applied to the fields of running water treatment, sewage treatment, industrial oxidation, disinfection of swimming pool, papermaking and laminating, waste gas treatment and space disinfection and so on. Many products of our company have been exported to many countries, such as Turkey, Indonesia, Brazil, Italy, Syria, Iran, India, Australia, Sudan, Israel, Ghana and so on.
