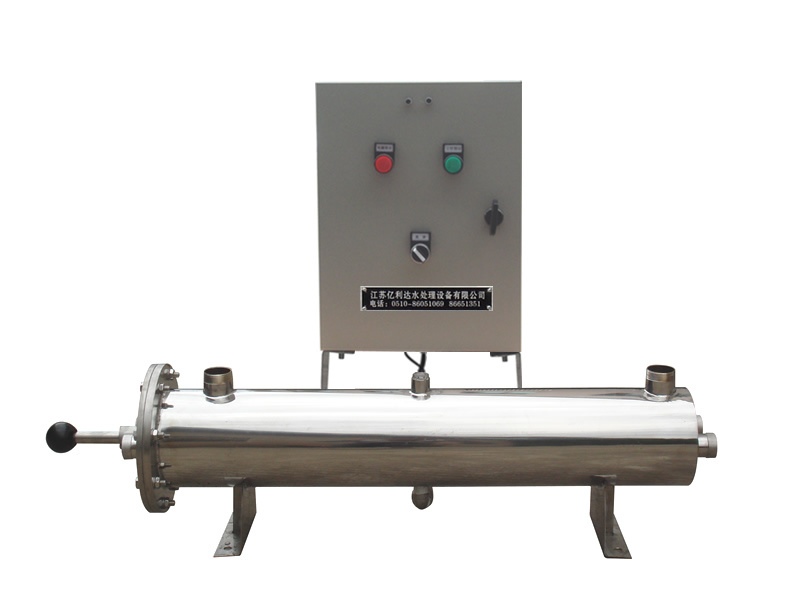

Microorganisms Killing UV Sterilizer Aquaculture Water Disinfection
| Price: |
US $ 150-6500/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
microorganisms Killing uv sterilizer aquaculture Water disinfection
UV Sterilizer
Ultraviolet devices possess a high quality, stainless steel reactor housing. All welding is conducted using the plasma arc-fusion method and the reactor housing is passivized through electropolishing. High quality UV lamps and high permeability quartz sleeves yield the highest sterilization performance along with various other long-term operational benefits
Advantages;
Effective
Virtually all microorganisms are susceptible to ultraviolet disinfection.
Economical
Hundreds of gallons are purified for each penny of operating cost.
Safe
No danger of overdosing, no addition of chemicals.
Fast
Water is ready for use as soon as it leaves the purifier - no further contact time required.
Easy
Simple installation and maintenance. Compact units require minimum space.
Automatic
Provides continuous or intermittent disinfection without special attention or measurement.
Chemical Free
No chlorine taste or corrosion problems.
Ultraviolet disinfection systems have many uses in commercial, industrial and domestic applications.
Ultraviolet lamps, germicidal bulbs and ultraviolet disinfection lamp are widely accepted in applications such as:
Water purification, UV disinfection and sterilisation for domestic and industrial water treatment.
Domestic, commercial and industrial wastewater treatment
Municipal sewage and wastewater treatment
Aquaculture, fish farming, oyster farming water treatment, disinfection and purification
Disinfection and sterilisation of potable drinking water
Disinfection and sterilisation of industrial process water
Curing of glues and adhesives
Curing of inks on continuous web, screen printing, lithographic and large format printing processes
Air purification in ducting of factories, food-processing plants, nursing homes, and hospitals
Ozone generation
Surface disinfection, food conveyor sterilisation
Principle of Operation
Ultraviolet disinfection systems typically utilize thin cylindrical bulbs capable of generating narrow band wavelength UV light in the 254 nm range, placed in close proximity to high-purity glass tubes through which the water flows. The unit must be sized to provide adequate dosage at the specified flowrate. The water to be treated must be sufficiently free of turbidity (sediment), iron, manganese and any colorant that could affect transmission of the 254 nm UV light. Manufacturers' specifications should be consulted.
Limitation of Use
The UV water disinfection system NOT intended for the treatment of water that has an obvious contamination or intentional source, such as raw sewage, nor is the unit intended to convert wastewater to microbiologically safe drinking water.
Water Quality (in)
Water quality plays a major role in the transmission of germicidal UV rays. It is recommended that the water does not exceed following maximum concentration levels
Maximum Concentration Levels (Very Important)
Iron≤ 0.3ppm(0.3mg/L)
Hardness≤ 7gpg(120mg/L)
Turbidity≤ 1NTU
Manganese≤ 0.05ppm(0.05mg/L)
Tannins≤ 0.1ppm(0.3mg/L)
UV Transmittance≥ 750‰
Effectively treating water with higher concentration levels than listed above can be accomplished, but may require added measures to improve water quality to treatable levels. If, for any reason, it is believed the UV transmission is not satisfactory, contact the factory.
UV wavelength (nm)
DOSAGE is the product of intensity & time
Dosage=intensity*time=micro watt/cm2*time=microwatt-seconds per square centimeter
(μ W-s/cm2)
Note: 1000μ W-s/cm2=1mj/cm2(milli-joule/cm2)
As a general guideline, the following are some typical UV transmission rates (UVT)
City water supplies850-980‰
De-ionized or Reverse Osmosis water950-980‰
Surface waters(lakes, rivers, etc)700-900‰
Ground water(wells)900-950‰
Other liquids10-990‰
Technical parameters:
| model | Processing capacity (Ton/Hour) | power (W) | inlet and outlet
(inch) | working pressure (Kg/cm 2 ) | malfunction alert for UV lamp | reactor dimension (cm) L×W×H | dimension of panel(cm) | anchor bolt (cm) | overall weight (Kg) |
| YLCn-005 | 0.3 | 16 | 1/2" | 6 | matched | 30×6×11 |
|
| 5 |
| YLCn-008 | 1 | 25 | 1/2" | 6 | matched | 47×6.3×11 |
|
| 10 |
| YLCn-050 | 2 | 40 | 1" | 6 | matched | 100×9×20 | Φ8.9×25
(diameter×length) | 69×4×Φ1 | 25 |
| YLCn-150 | 6 | 80 | 1+1/4" | 6 | matched | 100×11×23 | 69×4×Φ1 | 30 |
| YLCn-200 | 8 | 120 | 1+1/2" | 6 | matched | 100×15.9×30 | Φ8.9×45
(diameter×length) | 69×7×Φ1 | 35 |
| YLCn-300 | 12 | 160 | 2" | 6 | matched | 100×15.9×32 | 69×7×Φ1 | 40 |
| YLC-050 | 2 | 40 | DN25/1" | 6 | matched | 100×8.9×30 | 25×30×12
(L×H×w) | 60×4×Φ1 | 45 |
| YLC-150 | 6 | 80 | DN32/1 1/4 " | 6 | matched | 100×10.8×30 | 60×4×Φ1 | 50 |
| YLC-200 | 8 | 120 | DN40/1 1/2 " | 6 | matched | 100×15.9×40 | 60×7×Φ1 | 60 |
| YLC-300 | 12 | 160 | DN50/2" | 6 | matched | 100×15.9×40 | 60×7×Φ1 | 70 |
| YLC-360 | 15 | 200 | DN65/2 1/2" | 6 | matched | 100×15.9×40 | 50×78×25
(L×H×W) | 60×7×Φ1 | 120 |
| YLC-500 | 20 | 240 | DN65/2 1/2" | 6 | matched | 100×21.9×50 | 60×11×Φ1.2 | 130 |
| YLC-600 | 25 | 280 | DN80/3" | 6 | matched | 100×21.9×50 | 60×11×Φ1.2 | 140 |
| YLC-700 | 30 | 320 | DN100/4" | 6 | matched | 100×21.9×50 | 60×11×Φ1.2 | 150 |
| YLC-1000 | 40 | 360 | DN100/4" | 6 | matched | 100×21.9×50 | 60×11×Φ1.2 | 160 |
| YLC-1200 | 50 | 400 | DN125/5" | 6 | matched | 100×21.9×50 | 60×11×Φ1.2 | 180 |
| YLC-1500 | 60 | 420 | DN150/6" | 6 | matched | 170×27.3×57 | 120×16×Φ1.4 | 210 |
| YLC-2000 | 80 | 560 | DN150/6" | 6 | matched | 170×27.3×57 | 120×16×Φ1.4 | 220 |
| YLC-2500 | 100 | 700 | DN150/6" | 6 | matched | 170×27.3×57 | 60×128×30
(W×H×T)
| 120×16×Φ1.4 | 275 |
| YLC-3000 | 125 | 840 | DN150/6" | 6 | matched | 173×27.3×57 | 120×16×Φ1.4 | 300 |
| YLC-4000 | 150 | 1120 | DN200/8" | 6 | matched | 173×32.5×65 | 120×20×Φ1.6 | 325 |
| YLC-5000 | 200 | 1400 | DN200/8" | 6 | matched | 173×37.7×72 | 120×22×Φ1.6 | 350 |
| YLC-7000 | 300 | 2100 | DN250/10" | 6 | matched | 175×42.6×80 | 120×24×Φ2.0 | 400 |
| YLC-10K | 400 | 2520 | DN250/10" | 6 | matched | 176×52.9×95 | 60×150×40
(W×H×T) | 120×28×Φ2.2 | 475 |
| YLC-15K | 600 | 3080 | DN300/12" | 6 | matched | 176×78×110 | 120×32×Φ2.4 | 600 |
| YLC-20K | 800 | 3920 | DN350/14" | 6 | matched | confirmed | confirmed | confirmed | confirmed |
| YLC-25K | 1000 | 4760 | DN350/14" | 6 | matched | confirmed | confirmed | confirmed |
| Prod Model: |
YLC-5000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bactericidal Efficienc: |
98% Kill Total Coliforms |
| Material: |
Stainless Steel Ss304, Ss316 |
| Medium Material: |
PP (Propene Polymer) |
| Lifespan Of UV Lamp: |
9000-12000 Hours |
| Interface Type: |
Flange or Thread |
| Flow Rate: |
0.3--1000 Ton/Hour |
| Alert System For Lamp: |
One Set |
| System Working Pressure Resistance: |
(0.6 MPa)6kg/Cm2 |
| Raw Water Supplying: |
Running Water |
| Brand Of Ballast: |
Beasun |
Jiangsu YLD Water Processing Equipment Co., Ltd. is a high-tech enterprise, specialized in the research, development, design, manufacture, installation, technical consultation and personnel training.
We mainly produce electronic scale removal, UV sterilization, filtration, softening and cyclone grit removal technology and equipment. With strong technical force and rich experience, our company strictly implements ISO9001 system in the plan and management. "High technology leads to market development" is our basic concept.
We have extensively cooperated with domestic key universities, research institutions and foreign professional manufacturers, such as DOW (Dow) Chemical Co., Ltd., HYDRANAUTICS (Hydranautics) Company, Company (a professional manufacturer of multi-stage pumps), MILTONROY (Milton) Corporation (a metering pump manufacturer), the US Soft Controller KINETICO and OSMONICS, We have also fully introduced advanced technology. Thus, our technology is always in the leading domestic level. Over the years, our company has specialized in a variety of water treatment equipment for food, beverage, pharmaceutical, hospital, precision electronic, fine chemical, electricity, painting and surface cleaning industries.
Our "LYD" high-quality products at reasonable prices and perfect after-sales services have won great trust from worldwide customers,
We are willing to cooperate with the friends from all over the world and creat fine future together!
