b methane LPG,LNG CNG Natural Gas Generator with CHP 20kw for green Power Plant station1. Company Introduction
- Since 2008
- Factory area over 40000m2
- Starff over 260 employees
- Technicians over 100 people
- website www.lvhuandongli.com
2. Advantage
- Advanced electronic speed governor with super performance.
- Advanced ignition sensors and high-energy ignition system
- Advanced gas pressure regulation system
- Less specialized parts, high generalization, easy maintenance, low maintenance cost.
- Economical, low operating cost
- Reduced the carbon deposition on the wear of the engine cylinder and the valve to prolong the using life of the genset.
- Adopt one of the world's most advanced gas control technology, fully available to the characteristics of fuel gas.
- Powerful low pressure gas SPI (single point Injection) system used for various supercharger premixed engine.
- Suitable for differnt concentration methane and propane, variety of quality gas.
- Precise air-fuel ratio rarefied combustion control and Generator speed/load control
- Realize lean burn, reduce the intake pipe tempering and improved efficient to reduce the heat load.
3.Gas Requirements of Natural Gas Genset
Within 1m from pressure regulating valve of gas intake
- Gas temperature ≤ 40ºC
- Pressure 3-20kpa, pressure changing rate ≤ 1kpa/min
- H2S ≤ 200mg/Nm3
- NH3 ≤ 20mg/Nm3
- CH4 content ≥40%, changing rate ≤ 2%min
- Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3
- Moisture content ≤ 40g/Nm3
Product Description

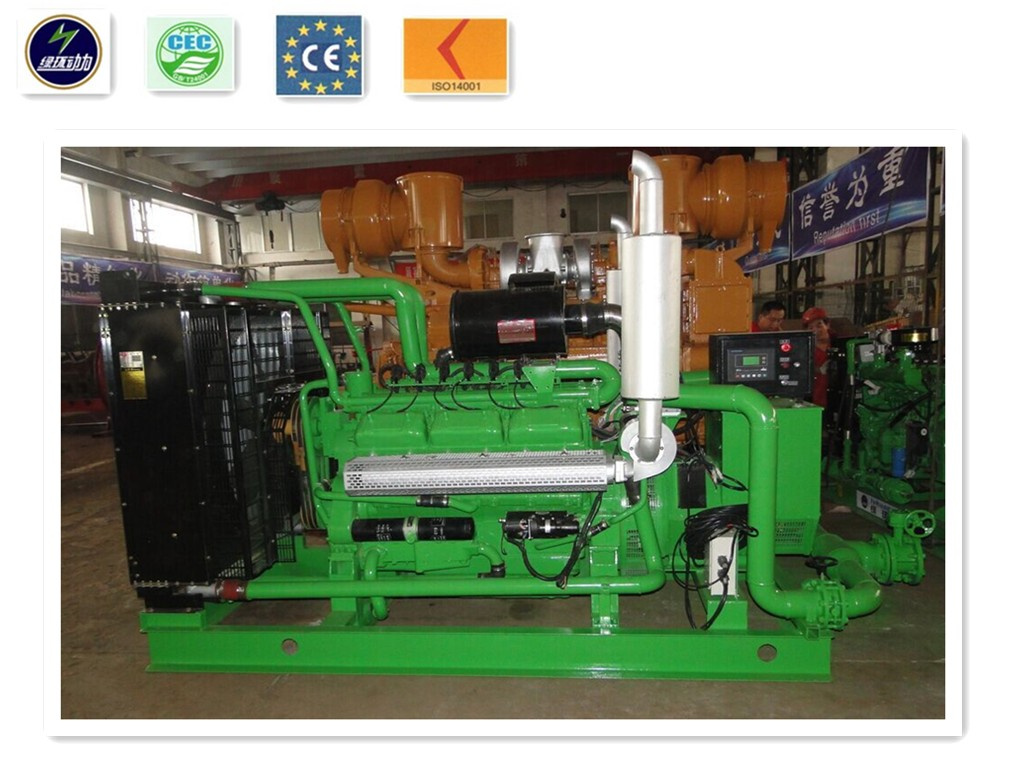

Natural gas engine generator general description:
This type of generator is choose gas as power. Gas will be burned directly inside of engine's cylinders, then give machinery force to alternator to produce electricity power. There are mainly 3 parts on one generator set: gas engine,alternator and radiator. The generated power can be connect to national grid, or for daily use and industrial use.
Natural gas engine generator simple description:
Manufacturer supply
Capacity: 3.0-4.0kw/h per Cubic meter gas
Power supply range:10KW-1100kw
More than 1 set can be parallelled
Continuous power supply range: 8-880kw
Standard componient and assembly
Multi-option of control panel
With CE and ISO certificate
1. Pre-sale service:
1) We will send our engineer to prospect the site of power station free of charge.
2) According to the situation of site, we will provide design drawings, such as power plant floor drawing, cooling system drawing, genset foundation, control room design, etc.
2. Sale service:
1) Operator training would be conducted by Lvhuan technicians during the process of commissioning or Factory training course in China,
2) Installation and commission of the genset would be instructed assisted by Lvhuan technicians at site.
3. After-sale service:
1) We have strong after-sale team, we will response within 24 hours and provide technical supports by phone or site guiding, help our clients to gain the biggeset profit.
2) For the quality problem, we will service for you free of charge during the guarantee period.
3) We provide one year guarantee period and lifetime service.
Plentiful spare part supply
1. We have spare parts department, plentiful spare part supply for all genset model will guarantee genset lifetime running.
2.All parts were from original factories or professional factories,complete in specification,keep good quality.
| Parameter of Natural Gas Generator Set |
| Model Number (Engine Type) | LHNG20 |
| Brand Name | LVHUAN |
| Prime power/Standby power | 16KW/20KW |
| Rated Speed | 1500/1800RPM |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1s |
| Heat consumption | ≤9.8mj/kw.h |
| Lubricant consumption | ≤1.0g/kw.h |
| Engine Capacity | 3.61 L |
| Cylinder Number | 4 |
| Cylinder Bore | 100mm |
| Stroke | 115mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | ENGGA |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1000 running hours which arrives first |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 1650x720x1250mm |
| Weight | 750kg |
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
