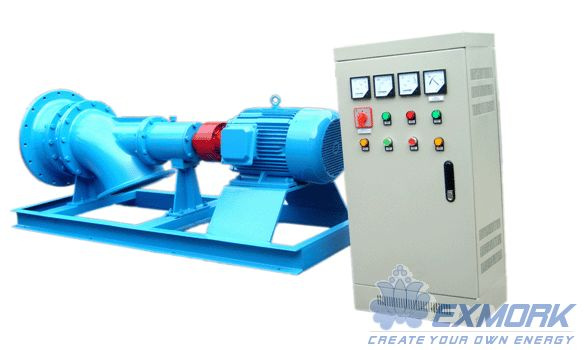

This tubular turbine generator unit is applicable to the low-head power station which has a head of less than 20m and the diameter of runner is less than 3m. With the merits of considerable and well-going flow, and high efficiency, this unit is perfectly suitable for developing water resources of low head and large flow in the areas of plains, hills and Coastal place.
High specific speed, largest flow and high efficiency, low investment and so on. Compared with the traditional vertical axial units, it has simple structure and larger volume of cross flow, less construction works is needed of and the maintaining is easy as well. With the same capacity, tubular turbine unit has a runner of which the diameter is smaller than the axial tubular unit by 10%-15%, the annual generating capacity is larger by 10% -15%, and the investment costs can be saved than axial of about 20%, its economic benefits is significant.
Model
| Power
| Head (m)
| Rate of flow
| Rotational Speed
| Install tube diameter
|
(W)
| (m3/s)
| (rpm)
| (mm)
|
MH-3KW
| 3000
| 4
| 0.136
| 1000
| 250
|
MH-5KW
| 5000
| 6
| 0.151
| 1500
| 300
|
MH-6KW
| 6000
| 7
| 0.156
| 1500
| 300
|
MH-8KW
| 8000
| 9
| 0.161
| 1500
| 300
|
MH-10KW
| 10000
| 11
| 0.165
| 1500
| 300
|
EXMORK has for over 10 years been specializing in wind and water power products. We service everything we sell. We have seen scores of companies come and go, but we have consistently been here to take care of our customers. We supply good quality, low-priced renewable energy systems - proving that renewable power need not cost the earth. We've provided you very comprehensive alternative energy products, including complete systems, solar power panels, wind power generators, mini-hydro electric, inverters, and controllers. Our mission is to demonstrate that green energy is genuinely viable, whether you are living on or off grid - and that renewable energy can be a sound financial investment, as well as a sound investment in our future.
We believe that Alternative Energy products should not only be utilitarian, but also be aesthetically pleasing to look at. Our experience means that we will execute our services as efficiently as humanly possible. And lastly, we believe in innovation and creativity, finding new ways to serve our customers better.
Location:
Our company has manufacturing bases In Wenzhou.
Products:
At present, we specially manufacture and export small wind turbine, solar panel, micro hydro turbine, inverter and controller.
Overseas business partners:
We have established broad and friendly cooperation relations with more than 60 countries and regions. North and South America, The Middle East, Southeast Asia, Western Europe, Africa, Hongkong, Taiwan etc countries and regions.
Philosophy: What can we do for you?
Suitable product, suitable price, best service.
Creating value for Customers
The purpose is to continually create new value for customers.
In the process of creating value for customers, Exmork will naturally innovate and develop the products and services our customers want, moving us one step closer to our goal of providing the utmost value.
