Home Generator Products Submersible Hydro Turbine (ST)

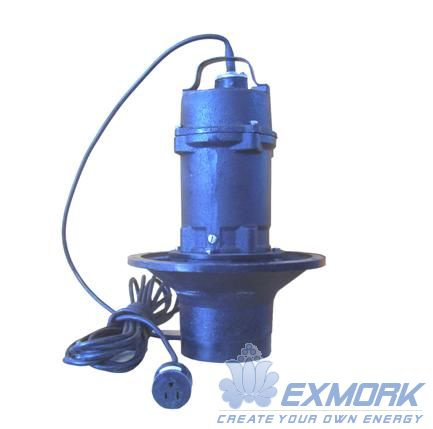

Submersible Hydro Turbine (ST)

Submersible Hydro Turbine (ST)
Price: Negotiable
Min Order: 1
Water Head for installation: 1.5_3.2m

Flow (m3/s): 0.025---0.055

Output Voltage (v): 230V(AC)

Output Power (kw): 0.55

Submersible hydro turbine generators are standard serially produced units. It is a low head propeller design. Reaction turbines require a much larger amount of water flow than impulse styles, but can operate with as little as two feet of head, making them ideal for sites where there may be relatively flat land, but a large water flow. They use either a 'traditional' reaction style runner (propeller runner). A specially designed outlet tube increases the turbine power output by creating suction as the water exits the system.
Model

ST-0.55KW

Diameter of Runner

120mm

Nominal Power

0.55KW

Output Voltage

230V AC

Frequency

50 Hz

Phases

Single-phase

Generator Style

Rear Earth Permanent Magnet
Synchronous Generator

Generator Mode

Vertical

Rotational Speed

1500RPM

Insulation Class

H(Temperature rise limit:125K)

Ingress Protection Waterproof Class

IP65

Efficiency (Max)

ηmax> 60 %

Power Factor

>0.98

Operation Surroundings Humidity

0~95%

Packaging Material

Fiberboard/ Wooden

Size & Weight

Size (L x W x H): mm
(345×345×510)

N.W. : 22KG
G.W. : 30KG

Safety


Short circuit Protection,
Islanding Protection,Over Heat
Protection,Over Load Protection,
Grounding Fault Protection

Prod Model: ST-550w
EXMORK has for over 10 years been specializing in wind and water power products. We service everything we sell. We have seen scores of companies come and go, but we have consistently been here to take care of our customers. We supply good quality, low-priced renewable energy systems - proving that renewable power need not cost the earth. We've provided you very comprehensive alternative energy products, including complete systems, solar power panels, wind power generators, mini-hydro electric, inverters, and controllers. Our mission is to demonstrate that green energy is genuinely viable, whether you are living on or off grid - and that renewable energy can be a sound financial investment, as well as a sound investment in our future.

We believe that Alternative Energy products should not only be utilitarian, but also be aesthetically pleasing to look at. Our experience means that we will execute our services as efficiently as humanly possible. And lastly, we believe in innovation and creativity, finding new ways to serve our customers better.

Location:
Our company has manufacturing bases In Wenzhou.

Products:
At present, we specially manufacture and export small wind turbine, solar panel, micro hydro turbine, inverter and controller.

Overseas business partners:
We have established broad and friendly cooperation relations with more than 60 countries and regions. North and South America, The Middle East, Southeast Asia, Western Europe, Africa, Hongkong, Taiwan etc countries and regions.
Philosophy: What can we do for you?
Suitable product, suitable price, best service.
Creating value for Customers
The purpose is to continually create new value for customers.
In the process of creating value for customers, Exmork will naturally innovate and develop the products and services our customers want, moving us one step closer to our goal of providing the utmost value.
