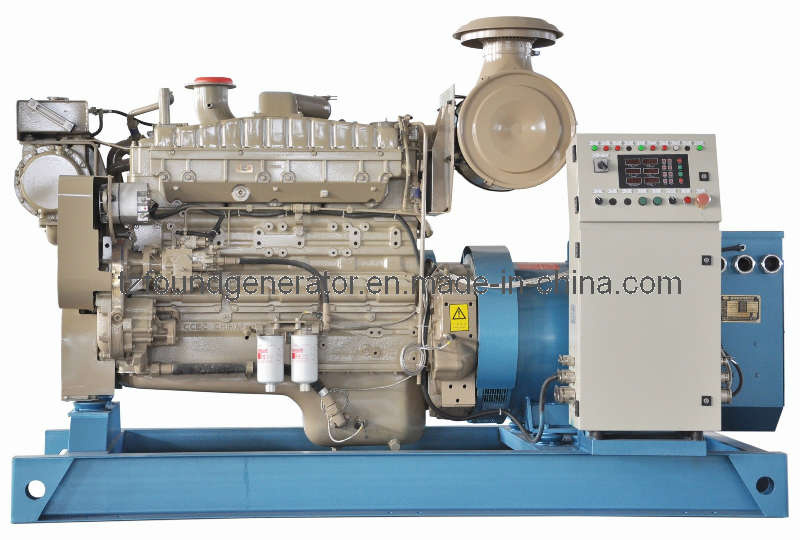

Cummins marine genset
Fengde Cummins series marine generator have features of compact structure, large power, low oil consumption, low discharge, low noise, reliable performances, and long services life. Its professional service networks are spread across the country and world, which can provide 24 hours after service and assure the supplying of accessories in time.
Feature:
Marine generator can use for Marine generator,
Marine emergency generator or Harbor generator
We use the marine synchronouse Alternator with the brands of Stamford, Maraphon and Simens marine Alternator etc. Also can be supplied at the request of customers.
Parallel connection: Two and more normal marine generating sets can transfer loading without stoping, and can realize parallel.
Protection function: Thare are over-limit alarming for speed, oil pressure, cooling water temperature and oil temperature.
Can provide CCS, BV, ABS, GL, RS, DNV classification certificate.
Cummins Diesel Engine
Technical Data
|
Engine Model |
NT855-DM |
|
Number of Cylinders |
6 cylinders in line |
|
Cycle |
4 stroke |
|
Aspiration |
Turbocharged |
|
Bore× Stroke |
140x 152 mm |
|
Displacement |
14.0 L |
|
Compression ratio |
15.0: 1 |
|
Prime Power/Speed |
205KW /1500 rpm |
|
Speed Governor |
electrical |
|
Cooling System |
By heat exchanger |
|
Fuel Consumption at 100% Load |
203 g/kw. h |
|
Starter Motor |
DC24V, |
Marathon Alternator (Standard)
Technical Data
|
Alternator Model |
MP-H-150-4 |
|
Prime power |
150KW |
|
Frequency/speed |
50HZ/1500rpm |
|
Exciter type |
Brushless, Self-excited |
|
Power factor |
0.8 |
|
Insulation Grade |
H |
|
Protection Grade |
IP23 |
|
Phase / wire |
3 phase 4 wires |
Taizhou Fengde Mechanical & Electrical Manufacturing Co., Ltd has been established for over 18 years, reformed from a national military industrial enterprise. Fengde owns a experienced and professional staff group, as well as senior engineer, technician and salesman; Now is known as a leading manufacturer in supplying of diesel generator (for both industrial and marine use) and Vessel Switchboard in China.
We have been authorized by CE and the Quality management system of ISO9001: 2008, and have been appointed as a vessel inspection unit by the China Classification Society CCS. Our marine generator and vessel Switchboard can be approved by CCS, ABS, BV, DNV, GL, LR, GL, RS etc. With steady quality, quick and professional service, Fengde gains general recognition from users domestic and abroad.
We are sincerely looking forward to establishing the business relationship with you for our mutual benefit. We are at your service!
