* Generator can be used as Main Marine generator, Marine emergency generator or Harbor generator
* CCS, BV approved
* Cooled by heat exchanger / radiator
* Adopt Cummins Engine
* Marathon single-shaft alternator standard, Stamford alternator is optional
* Protection: Over speed, low oil pressure, high water and oil temperature
* Parallel connection: Two and more normal marine generating sets can transfer loading without stoping,
And can realize parallel. * Standard SAE coupling the engine and alternator
* with efficiency anti-vibration devices
* Cold rolled steel one time molded base
* High reliability, low use and maintenance cost
|

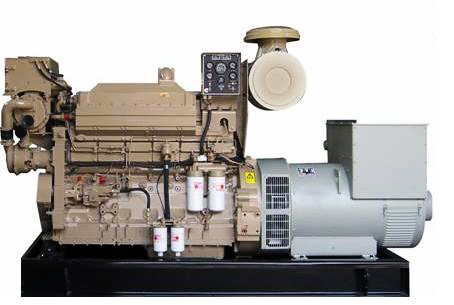

250kw Cummins marine diesel generator set |
Cummins Diesel Engine
Technical Data
|
Engine Model |
NTA855-DM |
|
Number of Cylinders |
6 cylinders in line |
|
Cycle |
4 stroke |
|
Aspiration |
Turbocharged and aftercooled |
|
Bore× Stroke |
140x 152 mm |
|
Displacement |
14.0L |
|
Compression ratio |
14.5: 1 |
|
Prime Power/Speed |
284KW/1500rpm |
|
Speed Governor |
electrical |
|
Cooling System |
By heat exchanger |
|
Fuel Consumption at 100% Load |
205 g/kw. h |
|
Starter Motor |
DC24V, |
Marathon Alternator (Standard)
Technical Data
|
Alternator Model |
MP-H-250-4 |
|
Prime power |
250KW |
|
Frequency/speed |
50HZ/1500rpm |
|
Exciter type |
Brushless, Self-excited |
|
Power factor |
0.8 |
|
Insulation Grade |
H |
|
Protection Grade |
IP23 |
|
Phase / wire |
3 phase 4 wires |
