Marine genset

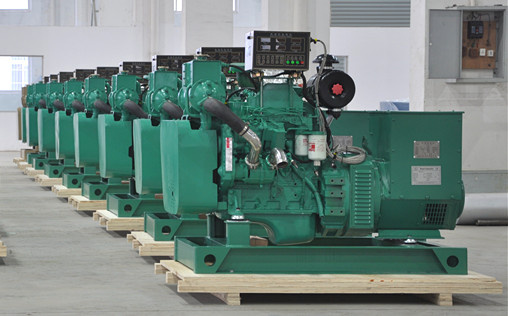

50KW Cummins marine generator set
Engine: 6BT5.9-GM
Alternator: Sunvim.
1)Powered by cummins engine
2)CCS/BV/ Certificate
3)CE Certificate
4)ISO9001: 2008
5)Coupled with Cummins diesel engine and Sunvim Alternator
6)24V DC start motor
7)Brushless, Self-excited, IP23, insulation class H alternator
|
Voltage |
HZ |
Phase |
P. F
COS |
Output
(KW) |
|
380V |
50 |
3 |
0.8 |
50 |
|
Engine Model |
6BT5.9-GM |
|
Configuration |
4 cycle , 6 cylinders in line |
|
Aspiration |
Turbocharged after water-cooled |
|
Bore× Stroke |
102 x120 mm |
|
Rated speed |
1500rpm |
|
Displacement |
5.9 L |
|
Compression Ratio |
17.5: 1 |
|
Prime Power |
90KW |
|
Standby Power |
99KW |
|
Speed Governor |
electrical |
|
Cooling System |
Heat-exchanger |
|
Speed Stability (%) |
≤ 5% |
|
Fuel Consumption at 100% Load |
214g/kw. h |
|
Starter Motor |
DC24V, |
Taizhou Fengde Mechanical & Electrical Manufacturing Co., Ltd has been established for over 18 years, reformed from a national military industrial enterprise. Fengde owns a experienced and professional staff group, as well as senior engineer, technician and salesman; Now is known as a leading manufacturer in supplying of diesel generator (for both industrial and marine use) and Vessel Switchboard in China.
We have been authorized by CE and the Quality management system of ISO9001: 2008, and have been appointed as a vessel inspection unit by the China Classification Society CCS. Our marine generator and vessel Switchboard can be approved by CCS, ABS, BV, DNV, GL, LR, GL, RS etc. With steady quality, quick and professional service, Fengde gains general recognition from users domestic and abroad.
We are sincerely looking forward to establishing the business relationship with you for our mutual benefit. We are at your service!
