1. CCS, EIAPP certificate
2.1year or 1000hours international garantee
Providing the standard functions as follows:
(Also can be made according to the customers' special requirements)
*Start/Stop controller
*Ampere meter
*Voltmeter and selector switch
*Frequency meter/ Water temperature gauge/ Oil pressure gauge/ Hour counter/ Battery voltage meter
*Emergency stop pushbutton
*Alarm System: Over speed\High Engine Temperature
Low Oil Pressure\Charge Fail
*Protection System: Over speed\High Engine Temperature\Low Oil Pressure\Emergency Stop. And the other protection function pre-setting
2. Option: Smartgen HGM6110 Digital Auto Start
3. Option: Smartgen HGM6120 Digital Auto Start
(Option assembled with the ATS)
4. Option: Deep Sea DSE5210 Digital Auto Start
5. Option: Deep Sea DSE5220 Digital Auto Start
(Option assembled with the ATS)
|

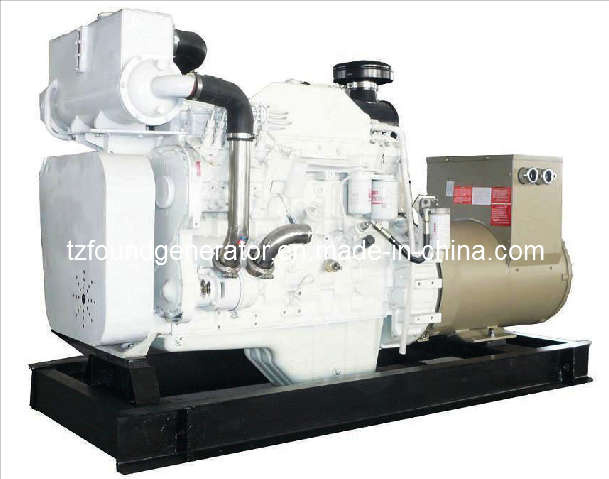

GENSETS DETAILS |
|
Generator Model |
JG180GF |
|
Prime power |
180KW |
|
Standby power |
198KW |
|
Voltage |
380V/220V |
|
Frequency |
50HZ/1500 rpm |
|
Power factor |
0.8(lag) |
|
ENGINE SPEICIFICATIONS |
|
Engine Model |
NT855-DM |
|
Number of Cylinders |
6 cylinders in line |
|
Cycle |
4 stroke |
|
Aspiration |
Turbocharged |
|
Bore× Stroke |
140x 152 mm |
|
Displacement |
14.0 L |
|
Compression ratio |
15.0: 1 |
|
Prime Power/Speed |
205KW /1500 rpm |
|
Speed Governor |
electrical |
|
Cooling System |
By heat exchanger |
|
Fuel Consumption at 100% Load |
203 g/kw. h |
|
Starter Motor |
DC24V, |
|
ALTERNATOR SPEICICATIONS |
|
Alternator Model |
MP-H-180-4 |
|
Prime power |
180KW |
|
Frequency/speed |
50HZ/1500rpm |
|
Exciter type |
Brushless, Self-excited |
|
Power factor |
0.8 |
|
Insulation Grade |
H |
|
Protection Grade |
IP23 |
|
Phase / wire |
3 phase 4 wires |
|
Voltage Regulation NL-FL |
≤ ± 0.5% |
Taizhou Fengde Mechanical & Electrical Manufacturing Co., Ltd has been established for over 18 years, reformed from a national military industrial enterprise. Fengde owns a experienced and professional staff group, as well as senior engineer, technician and salesman; Now is known as a leading manufacturer in supplying of diesel generator (for both industrial and marine use) and Vessel Switchboard in China.
We have been authorized by CE and the Quality management system of ISO9001: 2008, and have been appointed as a vessel inspection unit by the China Classification Society CCS. Our marine generator and vessel Switchboard can be approved by CCS, ABS, BV, DNV, GL, LR, GL, RS etc. With steady quality, quick and professional service, Fengde gains general recognition from users domestic and abroad.
We are sincerely looking forward to establishing the business relationship with you for our mutual benefit. We are at your service!
