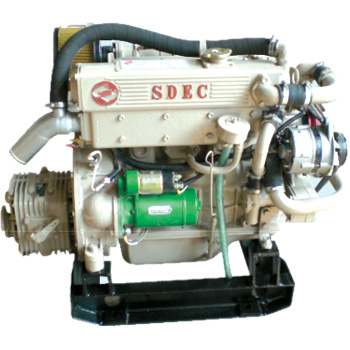

N485Ca MARINE DIESEL ENGINE: 30kW/3000r/min
Model: N485Ca
Type: Four stroke, water-cooling, in-line arrangement, four cylinder, combustion chamber
Bore: 85mm
Stroke: 95mm
Total displacement: 2.156
Max power: 30.5kw/3000r/min
Continuous power: 28kw/2910r/min
Max torque: 103N. M/2200r/min
Fuel rate at max. Power: <242g/kw. H
Min. Idle speed: 700-750r/min
Direction of crankshaft rotation:
Counterclockwise (From view of flywheel end)
Type of cooling:
Bicirculating (raw and fresh water )
Lubrication type: Pressure, splash
Start mode: 12V motor starter
Net weight: 205kg
Overall dimensions: 728× 516× 695
Oil capacity in pump: 7L
Injection timing: 19° ± 1°
GEARBOX
Model: SCG025-2
Type: Reversing gearbox, aluminum alloy housing, multiple-disc servo-automatic clutch
Ratio: Forward: 1.88
Reverse: 2.68
Capacity: 0.0136kw/r/min
Weight: 18.5kg
Guangzhou Wity Inc. Was established in 2004, with its headquarters in Guangzhou, China, which is subsidiary company with an independent legal entity of Wity Group. China. Our factory is located in Economic Development Zone, Guangzhou, which was formerly known as Rui'an Marine Generator Equipment Factory, which was one of the pioneer of generator sets business in China.
At present, we have a modern factory which covers 18, 000 square meters, and can mass produce various generator sets from 15kw to 1500kw, such as soundproof gensets, trailer mounted gensets, vehicle carried gensets, automatic parallel control panel, auto transfer switch panel(ATS), high voltage gensets, marine gensets with Marine Classification Society Approvals(CCS, BV and etc. )
We have set up a long-term cooperation relationships with several worldwide famous engine and alternator manufacturers since 2005. Our factory was appointed as the OEM factory of Cummins (Sino-American), Volvo Penta (Sweden), Perkins (UK), Doosan Daewoo (Korea), Marathon (Sino-American), Stamford (UK), LEC (China), Shanghai Diesel (China), Wuxi Diesel (China), JiNan Diesel (China).
We always insists that quality and service is the principle of us. We stand in the market with "quality first, service first, reasonable price ", we win customers with " timely, thoughtful and fast service ".
We sincerely welcome customers from all over the world!
