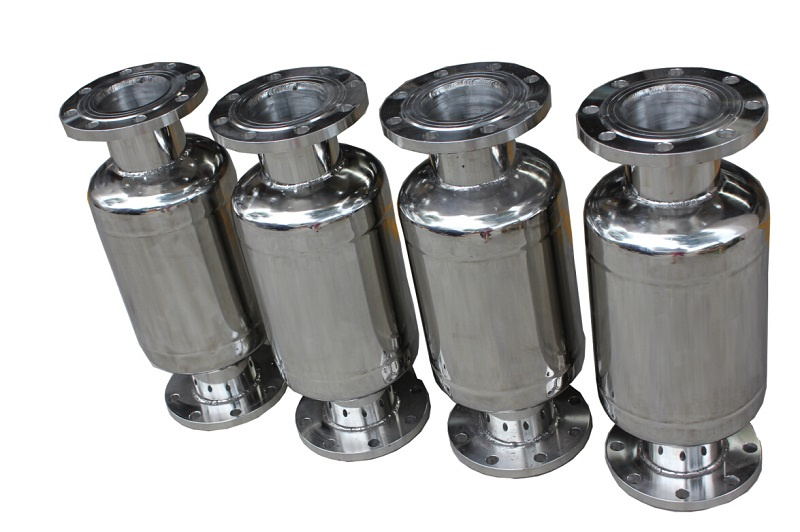

Magnetized Water Softener for Hardness Removal

Magnetized Water Softener For hardness Removal


Features and Benefits
· Control scale without chemicals or salt
· Convenient and simple installation
· Very effective at specified flow ranges
· Extends the life of fixtures, pipes, water heaters and appliances
· Decreases amount of detergents and soaps used
· Environmentally friendly and safe for plants and soil
· No moving parts or electricity
· Keep the benefits of natural calcium without negatives
· Made of high grade stainless steel,
· Does not remove anything from or add anything to the water
· No wasted water or by-products




I. Introduction

Strong magnetic water treatment equipment treats the water with magnetic field, change the water physical structure on the premise of without changing the chemical composition of water, to achieve the purposes of anti-scaling, scale removal, sterilization, algae removal, anti-corrosion and anti-rust in water. There is strong magnetic field in central part of this products, but it generates little magnetic interference on outside, the effect of water processing is obvious, which is a new generation of novel structure and optimal product for water treatment.


II. Working principle
The basic premise of magnetic water treatment is that when water passes through a strong magnetic field, the minerals in it are affected. The stronger the magnetic field and the longer the water stays in it, the better the effect. Minerals in the water are said to tend to stay in solution better, instead of forming scale on the inside walls of the pipe. This would reduce maintenance costs in boiler and other hot water heating systems. Indeed, magnetic treatment systems were first used widely in industrial applications, and are reported to work best when the water recirculates through the magnetic field over and over. Claims that magnetic treatment makes water act as if it had been softened with a standard ion-replacement water softener are more dubious...tests have shown that actual mineral ion levels are not changed by magnetic treatment, though people who make this claim say that the 'effective' or 'subjective' hardness has changed due the minerals staying in solution better. Some people also claim that magnetically-treated water is healthier for humans, animals, and plants. The only claim that we can confirm is that magnetically-treated water DID taste different (and better!) when we sampled it in blind taste tests. The difference was far easier to discern when using chlorinated water from town instead of our mountain spring water.



III. Scope of application
Δ A variety of water system which is easy to breed bacteria, algae and scale
Δ Air conditioning, refrigeration circulating water system.
Δ A variety of heating exchange and cooling tower system.
Δ Swimming pool system.




Technical parameters:

model	inlet and outlet		dimension(mm)	flow rate	Vertical center	Working medium	weight
	mm	inch	diameter*length	m 3 /h	strong magnetism (mt)	temperature ( . C)	Kg
YLC-1	25	1	108×330	4.9	160	0-90	10
YLC-1.5	40	1.5	108×330	12	160	0-90	20
YLC-2	50	2	159×450	19	160	0-90	30
YLC-2.5	65	2.5	159×450	28	160	0-90	40
YLC-3	80	3	159×450	50	160	0-90	45
YLC-4	100	4	219×560	80	160	0-90	50
YLC-5	125	5	219×600	125	160	0-90	60
YLC-6	150	6	273×740	180	160	0-90	70
YLC-8	200	8	325×790	320	160	0-90	90
YLC-10	250	10	377×850	480	160	0-90	110
YLC-12	300	12	426×800	600	160	0-90	130
YLC-14	350	14	478×950	750	160	0-90	160
YLC-16	400	16	530×1000	850	160	0-90	210
YLC-18	450	18	630×1050	950	160	0-90	260
YLC-20	500	20	720×1100	1100	160	0-90	330
