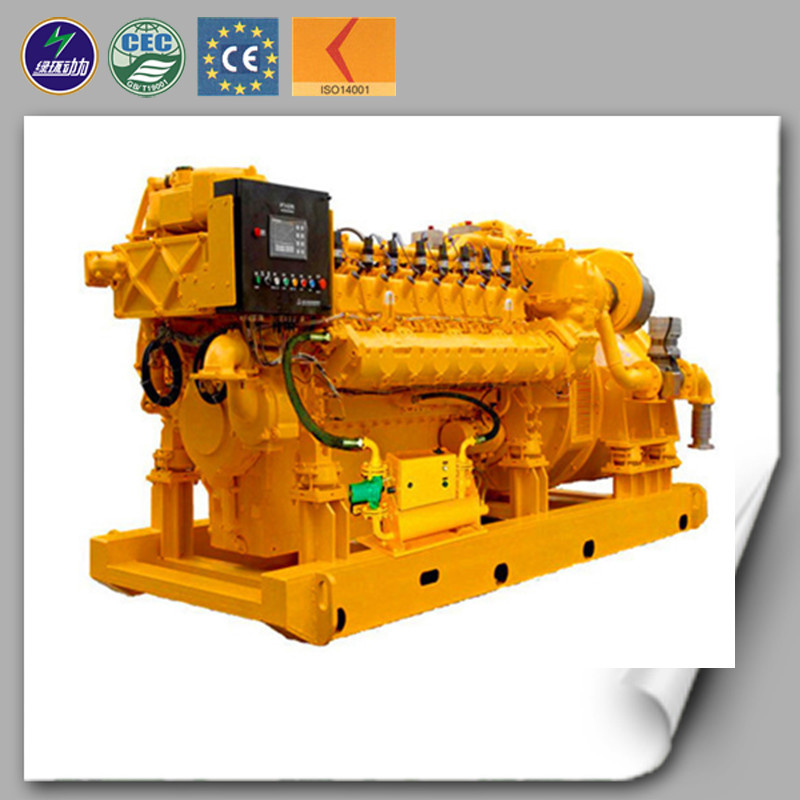

Lvhuan Power 1MW Natural Gas Generator Price

Lvhuan power 1MW natural gas generator price

We have a sales staff can speak in Russian, If you from  Russia, Kazakhstan , Ukraine, Belarus, Uzbekistan, and other countries,you can visit our Russian website: www.lvhuanpower.ru.

Lvhuan gas genset is a new green environmental product which meets demands of world environment protection and market. With domestic advanced technology, our genset possesses features of speedy start, easy to operate, complete models, etc.

Model of generating sets	LHNG1000
Model of engine	H16V190ZLT-2
Model of alternator	1FC6506-4LA42
Rated capacity	1250kVA
Rated power	1000KW
Continuous power	850KW
Rated speed	1000 r/min.
CH4 Requirement	≥70%
H2S Requirement	≤15ppm
Gas pressure	≥7kpa
H2O	No liquid state water vapour in natural gas
Rated voltage	220V/400V
Rated frequency	50Hz/60Hz
Rated power factor	0.8
Supply method	3 phases 4 lines
Excitation method	Brushless
Starting method	24V DC starter 24V or Air motor
Cooling method	Opened water cooling system
Speed modulate method	Electronic control
Net weight  kg	21000kg
Overall dimension L×B×H(mm)	7150×2180×2421(mm)

Main electrical performance data

Voltage	Stable regulating rate	±2.5%
	Instantaneous regulating rate	≤±20%
	Recovery time	≤2s
	Fluctuation	≤1%
Frequency	Stable regulating rate	0~5%
	Instantaneous regulating rate	≤±10%
	Recovery time	7s
	Fluctuation	≤1%

Core Features:
Manufacturer supply
Capacity: 3.0-4.0kw/h per Cubic meter gas
Power supply range:10KW-10MW
More than 1 set can be parallelled
Continuous power supply range: 8-4.3MW
Standard componient and assembly
Multi-option of control panel
With CE and ISO certificate

Gas engine generator simple description:

This type of generator is choose gas as power. Gas will be burned directly inside of engine's cylinders, then give machinery force to alternator to produce electricity power. There are mainly 3 parts on one generator set: gas engine,alternator and radiator. The generated power can be connect to national grid, or for daily use and industrial use.

Machine supply details:
Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug.
Starting system: DC24V electric motor,12V190 adopt ST710 of direct-current.
Pressure charging system:Pulse Mixed-flow  supercharger, compression ration is  1:8,meet engine's  requirement   for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.
Full automatic system for optional: ATS for automatic switch form national grid power to generated power, double direction.
Low voltage cables between generator set and control room: available if needed.

Features of our biomass generator:

1.Pure copper water tank for best cooling effect
2.Famous component brand to ensure overall quality, Eg. Siemens,Standard, Stamford.
3.Expansion fitting combined with shrinking fitting give high tightness to the system.
4.Safety guarantee form electromagnetic valve as well as back-fire relief valve

5.Residual heat CHP recycle system available for choice.
