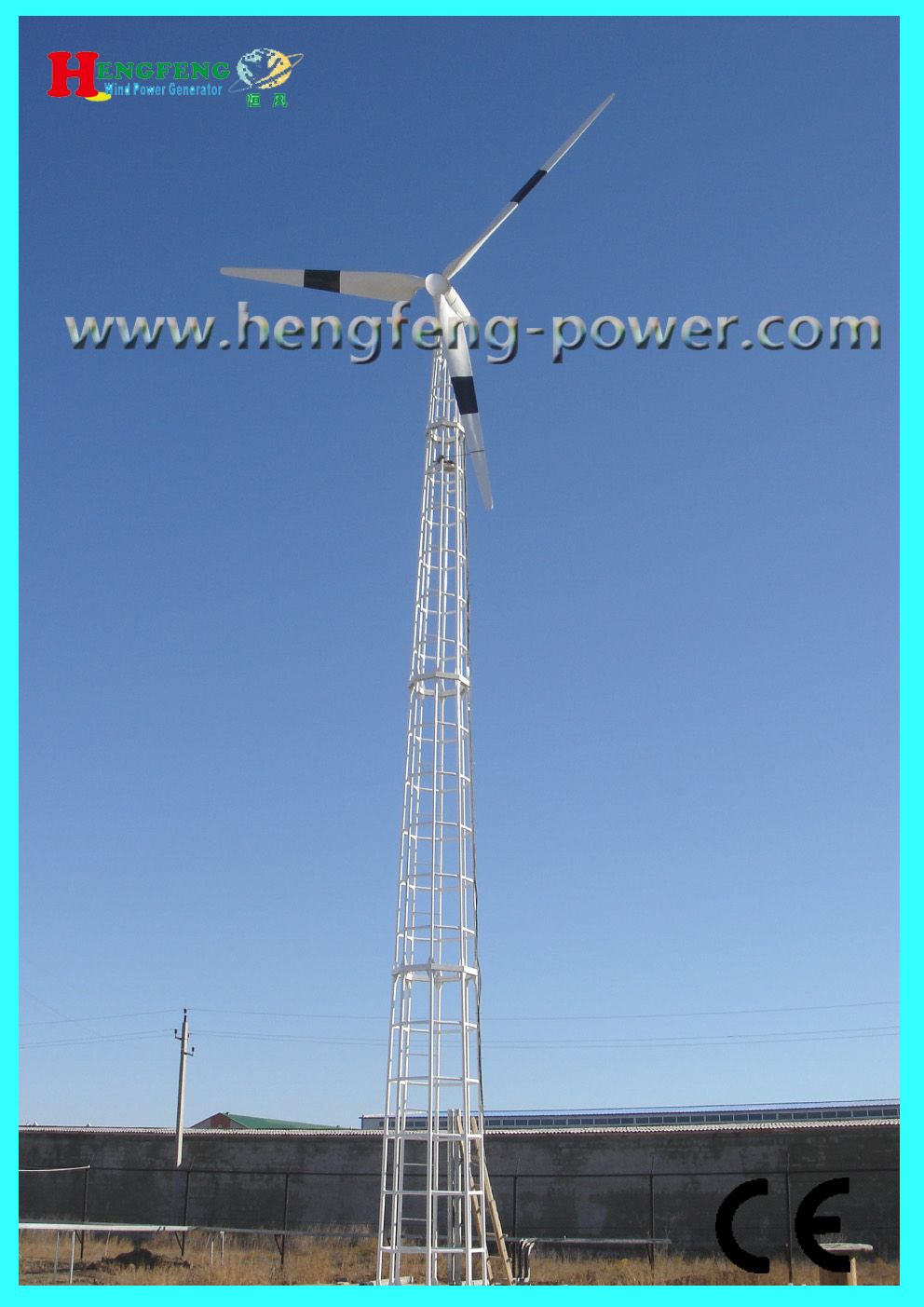

We are manufacturer of fan driven generator.
1. Machine Type: Horizontal-axis wind turbine
2. Blade form: Propeller
3. Blade number: 3 PCS
4. Blade material: Glass fibre reinforced plastic
5. Type of generator: Permanent-magnet 3 phase AC
6. Type of tower: Guy wire or free standing
Power: 30KW
Blade diameter (m): 12.5
Rated Rotated speed(r/min): 120
Rated speed (m/s): 12
Rated power: 30KW
Max power: 35KW
Output voltage (v): 380
Start up wind speed (m/s): 3
Work speed (m/s): 3-30
Security wind speed(m/s): 50
High of tower (m): 18
Top quality except tower: 950kg
Tower Steel tube model (mm): φ 400
Speed regulation: Leaning tail + electric brake
Capacity and quantity of battery: 12V200AH 60 PCS
Can supply power for:
Small villages, Air conditioners, Refrigerators, Water pumps,
Cookers, Color television sets, Washing machines, Lighting,
Electric fans and Charge
Wind turbine controller:
1. If the system meet problem, and the wind turbine is running, it can prevent the wind turbine race rotation.
2. Have the auto-protection function of the batteries Reverse protection, anti-disconnect battery protection, battery damage protection.
3. When the charge current is high in strong wind, controller can load the wind turbine automatically. And charging the battery with low current.
4. The wind turbine brake automatically when the battery bank voltage get to rated voltage 125%; And stop charging the batteries.
5. The wind turbine get back charging the batteries when the the battery bank voltage get to rated voltage 108%
6. Controller with a manual emergency brake switch, users can use depending on the circumstances. Using this switch, the wind turbine will be brake.
Qingdao Hengfeng Wind Power Generator Co., Ltd is one of the leading wind turbine manufacturer in China. Company start at 2004, Workshop covers more than 5000 square meters. It is about 1 hour by car to Qingdao Airport. And 30 minutes to Qingdao port. The traffic is very convenient.
Our company mainly produces 150 watts to 100 kilowatts of small and medium horizontal axis, vertical axis wind turbines, wind and solar power supply system, widely used in off-grid and on-grid power generation system. Produced in strict accordance with the ISO9001 international standard production system management, we have standard production line and automated packaging line, strict product testing system, advanced test equipment, to ensure provide customers the highest quality products and services; All products have achieved CE certification. Hengfeng has unrivalled experience and has built up a global reputation for their robust and reliable performance.
Our products has been export to more than 60 countries, for example, Europe, Middle East, Southeast Asia, Australia etc; Widely applied for island, military, maritime monitor, home use, commercial business and remote area etc, we have integrated design, production, sale and after-sale service. If you are thinking about reducing your domestic energy bills or providing a multi-site energy solution for your business, HENGFENG can help achieve your renewable energy aspirations. We make sure that your wind turbine choice will work productively for you and deliver all-round environmental benefits.
