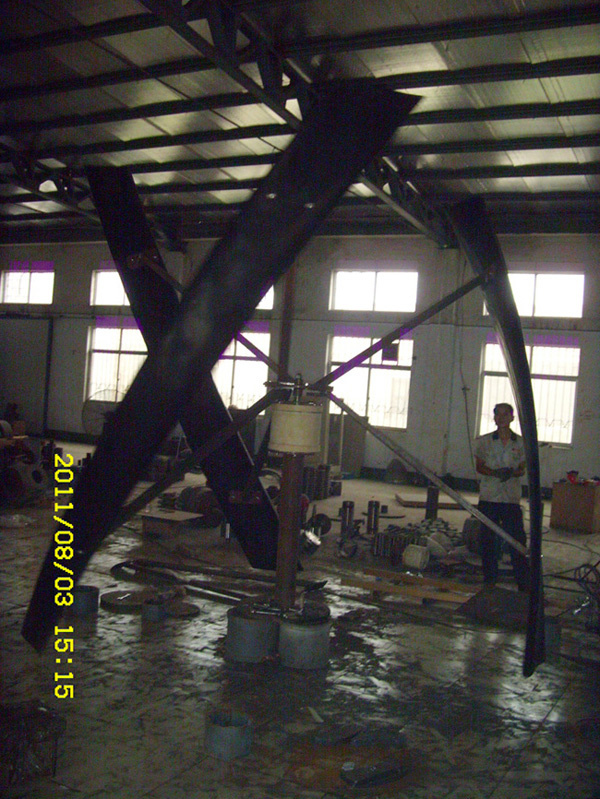

VHF-VAS-3KW vertical axis wind generator
Rated Power 3KW
Blades S-shaped
Blades number 3 PC
Rotor Diameter 3000 mm
Blade Length 3480 mm
Blade Height 3000 mm
Blade Width 265 mm
Blade Weight 12 kg
Rated Rotated Speed 200 r/m
Rated Wind Speed 8m/s
Output Voltage 220V
Start Up Wind Speed 3m/s
Operating Wind Speed 3-25m/s
Security Wind Speed 40m/s
Output Controller System charger and inverter
Battery 12V100AH 18PCS
Can Supply Power for Refrigerators, Washing machines, Water pumps, Cookers, Color television sets, Lighting, Electric fans, Charge
Guy Wire Tower Height of Pole: 8m
Pole Steel Tube Model: 133mm
Free stand Tower Height of Pole: 8m
Diameter of top tower: 140mm
Diameter of bottom tower: 350mm
Size of top flange: 200mm
Controller Specification Rated Wind Input Power: 3KW
Rated PV Input Power: 0.9KW
Rated Battery Votage: 216VDC
Floating Charge Voltage: 252VDC
Control Mode: PWM
Display Method: LCD
Display Parameter: Battery Voltage\Wind Turbine Voltage\PV Voltage\Wind Turbine Current\PV Current\Wind Turbine Power\PV Power\Under-voltage\short-circuit\Night. etc
Cooling Method: Fan
Protection Type:
Solar panel reverse-charge protection\
Solar panel reverse-connect protection\
Battery reverse-connect protection\
Battery open circuit protection\
Resistance Brake
Operation Ambient Humidity:
0~90%, no condensing
Invertor Rated Output Capacity: 3kW
Rated Battery Voltage: 216VDC
Over Voltage Point: 306VDC
Over Voltage Recovery Point: DC320V-DC400V
Under Voltage Point: 189VDC
Under Voltage Recovery Point: 216VDC
No Load Loss: 0.12A
Output Waveform: Pure Sine Wave
Display Method: LCD
Display Parameter:
Battery Voltage, Output Voltage, State Parameter
Cooling Method: Fan
Rated Output Voltage:
110/120/220/230/240 VAC
Total Harmonic Distortion: ≤ 4%
Output Frequency: 50/60 Hz± 0.05Hz
Dynamic Response: 5%
Overload Ability:
120% one minute, 150% 10 seconds
Inverting Efficiency: Max. 90%
Noise(1m): ≤ 40dB
Dielectric Strength: 1500VAC, one minute
Protection Type:
Battery over voltage protection\
Battery under voltage protection\
Battery reverse-connect protection\
Output over load protection\
Output short circuit protection\
Over temperature protection
Operation Ambient Temperature: -20~50 degree
Operation Altitude: ≤ 4000m
Operation Ambient Humidity:
0~90%, no condensing
Size(W× H× D)mm: 470× 430× 300
Weight(KG): 24.5
Qingdao Hengfeng Wind Power Generator Co., Ltd is one of the leading wind turbine manufacturer in China. Company start at 2004, Workshop covers more than 5000 square meters. It is about 1 hour by car to Qingdao Airport. And 30 minutes to Qingdao port. The traffic is very convenient.
Our company mainly produces 150 watts to 100 kilowatts of small and medium horizontal axis, vertical axis wind turbines, wind and solar power supply system, widely used in off-grid and on-grid power generation system. Produced in strict accordance with the ISO9001 international standard production system management, we have standard production line and automated packaging line, strict product testing system, advanced test equipment, to ensure provide customers the highest quality products and services; All products have achieved CE certification. Hengfeng has unrivalled experience and has built up a global reputation for their robust and reliable performance.
Our products has been export to more than 60 countries, for example, Europe, Middle East, Southeast Asia, Australia etc; Widely applied for island, military, maritime monitor, home use, commercial business and remote area etc, we have integrated design, production, sale and after-sale service. If you are thinking about reducing your domestic energy bills or providing a multi-site energy solution for your business, HENGFENG can help achieve your renewable energy aspirations. We make sure that your wind turbine choice will work productively for you and deliver all-round environmental benefits.
