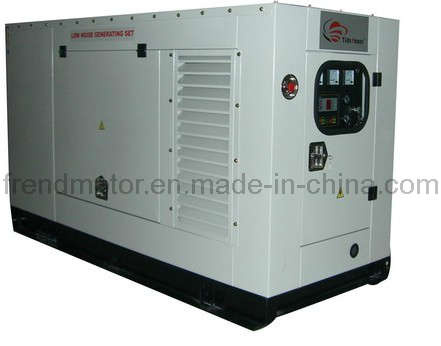

Silent Diesel Generator:
1)Water-cooled, Low noise running,
2)Easily operate, Digital control
3)Smart dimension
Silent Diesel Generator
Feature:
1) Engine: (LOVOL)
2) Alternator: Leroy Somer, Stamford or our Yabo brushless seires
3) Power: 20 - 120kW
4) Voltage: 400 / 230V or 240/120V
5) Frequency: 50 / 60Hz
6) Protection: IP21 or IP23
7) Insulation: H
Specifications:
1) Diesel engine: (LOVOL)
A) 4-stroke
B) Water cooling
C) Direct combustion chamber
D) Supercharging internal cooling
E) Integrated high intensity cylinder
2) Alternator:
A) Excitation mode: Brushless
B) Regulator: Automatic regulator
C) Voltage deviation: ± 0.5%
D) Insulation: Class H
E) Protection: IP21 or IP23
3) Control Panel
A) Emergency stop button
|
DIESEL ENGINE MODEL |
1003G |
1003G |
1003TG |
1003TG |
1004G |
1004G |
1004G |
|
Engine Characters |
Water-cooled, in line, 3-cylinders, 4-stroke, direct injection, Wet cylinder liner, 1500rpm |
Water-cooled, in line, 4-cylinders, 4-stroke, direct injection, Wet cylinder liner, 1500rpm |
|
Constant output(KW) |
28 |
40 |
40 |
|
Standby output(KW) |
30.8 |
44 |
44 |
|
Aspiration |
Natural |
Turbocharged |
Natural |
|
Bore(mm)× Stroke(mm) |
100× 127 |
|
Cubic Capacity(Liters) |
3.99 |
3.99 |
3.99 |
|
Piston Speed(m/s) |
6.35 |
|
|
Compression Ratio |
16.5: 1 |
17.5: 1 |
16.0: 1 |
|
Stability bandwidth |
≤ ± 0.8% |
≤ ± 0.8% |
|
Steady governing rate |
≤ 5% |
≤ 5% |
|
Acoustic Pressure |
|
≤ 91.2dBA(At full load, 1m distance |
|
Exhaust Temperature(' ) |
600 |
600 |
|
Exhaust Back Pressure |
6KPa |
5KPa |
|
Air Induction System |
Dry element type with back pressure warning indication |
|
Lube Temperature / Capacity |
125' /8.1L(Max. ) |
|
BMEP: kPA (Prime power) |
617 |
882 |
882 |
|
Heat Rejection to Exhaust |
25kW/min |
35.7kW/min |
35.7kW/min |
|
Heat Rejection to Cooling |
327kW/min |
38kW/min |
38kW/min |
|
Cooling System Volume |
17L |
21L |
|
Cooling Air Flow |
55m3/min |
55m3/min |
|
Combustion Air Flow |
2.64m3/min |
2.64m3/min |
|
Exhaust Gas Flow |
7.54m3/min |
7.54m3/min |
|
Min. Fuel Consumption |
≤ 210g/kW. h |
≤ 210g/kW. h |
|
Lube Consumption |
≤ 2.0g/kW. h |
≤ 1.36g/kW. h |
|
ALTERNATOR MODEL |
FRS184F |
FRS184G |
FRS184H |
FRS184J |
FRS184H |
FRS224C |
FRS224D |
|
Continuous Output(KW/KVA) |
22/27.5 |
25/31 |
30/37.5 |
34/42.5 |
30/37.5 |
34/42.5 |
40/50 |
|
Power Efficiency |
85.8% |
86.6% |
86.6% |
87% |
86.3% |
87% |
88.2% |
|
Voltage Regulation |
± 1.0% with 4% engine governing |
|
Waveform Distortion |
No load < 1.5% and non-distorting balanced linear load ≤ 5% |
|
THF / TIF |
< 2% / < 50 |
