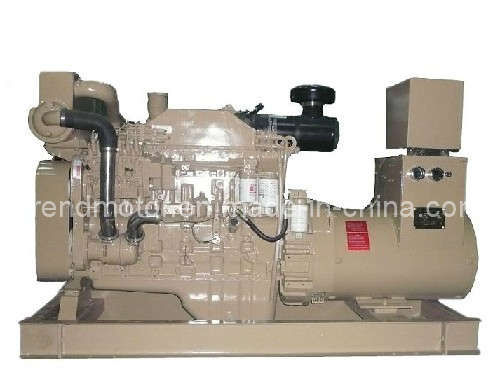

Series marine diesel generator set have features of compact structure, large power, low oil consumption, low discharge, ow noise, reliable performances, and long services life. Its professional service networks are spread across the country and world, which can provide 24 hours after service and assure the supplying of accessories in time.
Feature:
*Generator can be used as Main Marine generator, Marine emergency generator or Harbor generator
*CCS, BV approved
*Cooled by heat exchanger / radiator
*Adopt Cummins Engine
*Marathon single-shaft alternator standard, Stamford alternator is optional
*Marathon single-shaft alternator standard, Stamford alternator is optional
*Parallel connection: Two and more normal marine generating sets can transfer loading without stoping, and can realize parallel.
*Standard SAE coupling the engine and alternator
*With efficiency anti-vibration devices
*Cold rolled steel one time molded base
*High reliability, low use and maintenance cost
Note:
1. Above the technical specification are all 50Hz, 60Hz diesel generator can be supplied according to the customer's requirements
2. Technical specifications may be changed without notice.
|
Model |
Output |
Cummins Diesel engine |
Fuel Consumption (g/kw. h) |
Dimension (L× W× H) (mm× mm× mm) |
Detail Data |
|
KVA |
KW |
|
CCFJ40J |
50 |
40 |
4BTA3.9-GM47 |
213 |
1500X750X1320 |
40kw |
|
CCFJ50J |
63 |
50 |
6BT5.9-GM83 |
212 |
1850X820X1350 |
50KW |
|
CCFJ64J |
80 |
64 |
6BT5.9-GM83 |
212 |
1850x820x1350 |
64KW |
|
CCFJ70J |
88 |
70 |
6BT5.9-GM83 |
212 |
1850X820X1350 |
70KW |
|
CCFJ80J |
100 |
80 |
6BTA5.9-GM100 |
212 |
1900X850X1400 |
80KW |
|
CCFJ90J |
113 |
90 |
6CT8.3-GM115 |
212 |
1900X850X1400 |
90KW |
|
CCFJ100J |
125 |
100 |
6CT8.3-GM115 |
212 |
2100X800X1360 |
100KW |
|
CCFJ120J |
150 |
120 |
6CTA8.3-GM155 |
212 |
2100X800X1360 |
120KW |
|
CCFJ150J |
188 |
150 |
6LTAA8.9-GM200 |
198 |
2400X900X1400 |
150KW |
|
CCFJ150J |
188 |
150 |
NT855-DM |
203 |
2550X980X2250 |
150KW |
|
CCFJ180J |
225 |
180 |
NT855-DM |
203 |
2550X980X2250 |
180KW |
|
CCFJ200J |
250 |
200 |
NTA855-DM |
208 |
2580X980X2290 |
200KW |
|
CCFJ250J |
313 |
250 |
NTA855-DM |
205 |
2620x980x2290 |
250KW |
|
CCFJ270J |
338 |
270 |
NTA855-DM |
205 |
2650X1000X2300 |
270KW |
|
CCFJ280J |
350 |
280 |
NTA855-DM |
205 |
2650X1000X2300 |
280KW |
|
CCFJ300J |
375 |
300 |
KTA19-DM |
209 |
3100X950X2080 |
300KW |
|
CCFJ350J |
438 |
350 |
KTA19-DM |
204 |
3150X1000X2150 |
350KW |
|
CCFJ400J |
500 |
400 |
KTA19-DM |
204 |
3150X1000X2150 |
400KW |
|
CCFJ500J |
625 |
500 |
KT38-DM |
214 |
4100X1650X2200 |
500KW |
|
CCFJ600J |
750 |
600 |
KTA38-DM |
214 |
4100X1650X2200 |
600KW |
|
CCFJ720J |
900 |
720 |
KTA38-DM |
205 |
4150X1650X2200 |
720KW |
|
CCFJ800J |
1000 |
800 |
KTA38-DM |
199 |
4200X1700X2350 |
800KW |
