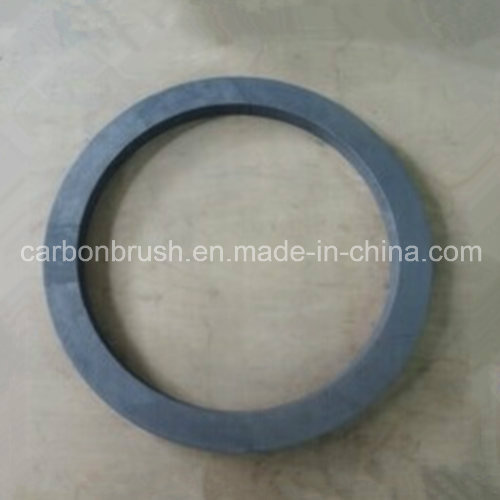

looking for manufacturer to fabricate carbon ring for steam Turbine
1. Carbon seal rings are mainly used for mechanical seals in various pumps and reaction. There is sliding end face seal in seal rings, and they are named rotary seal ring and stationary seal ring according different usage situation and effect.
2. Seal Rings: Seal rings made from carbon graphite, graphite, and resin bonded materials are used in a variety of pump applications. Applications can include home appliance, recreational, food industry, chemical manufacturing, and automotive uses. Seals can either be manufactured molded to size, or machined out of stock material. Seals are rendered impervious by the selection of materials or impregnates...
Technical parameters for reference:
| Grade | Ash -specification
| Density
g/cm3 | compression strength
Mpa
| Flexural Strength
Mpa | Resistivity
μΩ·m |
| G2 | 100 | 1.65 | 40 | 20 |
|
| G3 | 250 | 1.55 | 25 | 14 |
|
| XG-14 | 1000 | 1.72 | 45 | 25 | 18 |
| XG-17 | 1000 | 1.90 | 86 | 42 | 9.5
|
1. Packages & Shipping
1. Package: 10PCS/CTN, carton size: 8X11X24cm
2. Packing: Air bubble film for inner packing and carton box for outer packing.
3. Shipping: By sea, by air, by Express(S. F/UPS/DHL/TNT/EMS/FedEx)
4. Delivery Time: 15-30 days.
2. Advantages:
-ISO9001: 2008 and SGS Approved
-shape and size is non-standard and can be designed for customer
Stability at high temperature
Chemically inert
Oxidation resistant
Self-lubricating
Freedom from welding or melting
Good machinability
Surface can also be ground to a high degree of precision in flatness and smoothness
3. After-sale service
Our company focus on the inspection not only for the production process but also close to the shipment process when the cargo were finished.
All the goods have passed strict testing, whether from the performance, or from the appearance of the package.
4. FAQ
About the products information
1. Which kinds of raw material could supply?
A. High pure graphite
B. Metal graphite, impregnated metal graphite
C. Electro graphite
D. Resin boned graphite
2. Can we use our design?
Yes, you can. Please email your design details to us, we will as your requirement to do it.
3. Do you have Inspection procedures for:
- Incoming
- In-process
- 100% self-inspection before packing
- Final AQL sampling inspection
- Yes, we have inspection procedures.
4. What certificates about your products?
-ISO9001: 2008
-SGS approved
5. Can we mix the different design products?
Yes, you can mix it.
6. What's the delivery time?
Normally 15 -25 days, also depends on your quantity.
About the payment
7. What's the payment?
Usually we accept T/T, L/C is advisable, also accept Western Union, Paypal.
About the shipping information
8. Can we use our own shipping agent?
Yes, you can. We had cooperated with many forwarders. If you need, we can recommend some forwarders to you and you can compare the prices and services.
9. Where's the shipment port?
Shenzhen or Guangzhou, China.
Welcome to send the inquiry to us, thanks.
