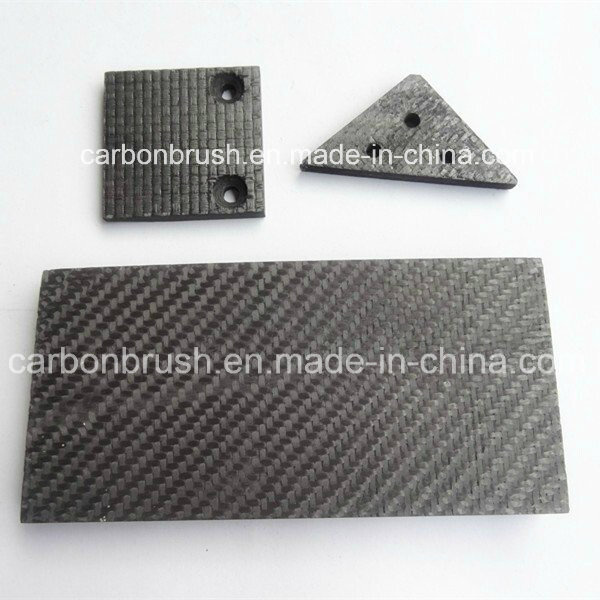

C/C composite Materials for Solar Generator
1. Specifications
1. Item name: C/C composite Materials for Solar Generator
2. Brand Name: Aobo
3. Color: Black
4. Type: Electrode Powder
5. Width: 10cm-64cm, or customed sizes.
6. Length: 65cm, or customed sizes.
7. Thickness: 0.3-0.64mm
8. Resistance (μ Ω . M): 18
9. Apparent Density (g/cm³ ): 1.7
10. Thermal Expansion: 80
11. Flexural Strength (N/): 68
12. Carbon Composite Materials: C/C composite
13. Temperature: 1650-2500
2. Packages & Shipping
1. Package:
A) Items per Carton: 30PCS/CTN;
B) carton size: 8X11X24cm;
C) Gross Weight: : 1.50 KG
2. Shipping: By sea, by air, by Express(S. F/UPS/DHL/TNT/EMS/FedEx)
3. Features:
-Lasting Performance
-Excellent Structural Properties
-Environmentally Safe
-Dimensional Stability
-Non-Magnetic Electromagnetic
-Ease Of Fabrication & Installation
4. About products:
The carbon compound materal is the basic compound material of the carbon fibre reinforcement, has the quality lightly, to bear the ablation, the heat-resistance to attack, the damage allowance well to be high, the strength at high temperatures high, may designed strong and so on prominet characteristic, Presently applies in the aviation, astronautics, the electric circuit level and solar level crystal application domains and so on silicon production, tower electric muffle furnace.
5. About our side:
We provide C-C compound for the field of solar energy, semiconductor, monocrystalline silicon drawing stove, polycrystalline silicon stove thermal; Vacuum serial products and so on heat-treatment furnace, metallurgy tower electric muffle furnace necessary plate, rods and bars, crucible, heater, crucible request, conduction current tube, heat preservation tube, boat pan, fastener, electrode.
6. Experienced workers team
-We pursue focuses on professional and excellence. Our workers all with working experiences more than 15 years, even many older workers are development together with our factory for many years.
-Their Industry experience, accurate equipment skills, zero error rate and high frequency of professional production assured the quality and delivery timely.
7. Our service
1. We will reply your inquiry for related to our products and prices within 24hours.
2. Well-trained and experienced staffs to answer all your question.
3. Offering the support to solve the problem in the application or selling period.
4. Competitive prices based on same quality.
5. Guarantee samples quality same as mass production quality.
| Model | Apparent Density
g/cm3 | Bending Strength Mpa(Kgf/cm2) | Tensile Strength
Mpa(Kgf/cm2) | Coefficient of Expansion
× 10-6/K | Maximum Humidity ° C |
| BYC13 | 1.35 ± 0.07 | 85(867) | 60(612) | 0.5 | Vacuum 2500
Protective Atmosphere 3000 |
| BYC15 | 1.53 ± 0.07 | 130(1326) | 75(765) | 0.6 |
| BYC17 | 1.68 ± 0.07 | 160 | | |
