Product description
Biomass power generation is the use of biomass power generation of biomass energy, is one of the renewable energy generation, including direct combustion power generation, agriculture, forestry and agriculture and forestry waste waste gasification power generation, waste incineration power generation, landfill gas power generation, and biogas power generation.
Gas requirements for generator
1m from genset's pressure regulating valve of inlet
1. Temperature of biomass≤ 40º C;
2. Pressure of biomass 5~20kPa, velocity of pressure≤ 1kPa/min;
3. H2S≤ 200mg/Nm3;
4. NH3≤ 20mg/Nm3;
5. Coke tar content≤ 20mg/Nm3;
6. Impurities particle size≤ 5μ M; Impurity content≤ 30mg/Nm3;
7. Moisture Content of biomass ≤ 40g/Nm3;
8. Biomass calorific value≥ 4.2MJ/Nm3.
Purification of biomass has a significant impact on machine life and continuous running time!
Specifications
1. Power range: 10kw-1000kw, single or parallel running
2. Stable engine, famous alternator, PLC control panel
3. Multi-option of engine, alternator and control system and cooling system
4. Long continuous running hours, 8000 hours per year
5. With CE and ISO
6. Manufacturer, OEM provided
Main spare parts
1. Control system: America Woodward control system
2. Controller: ComAp, Deepsea, Woodward
3. Ignition system: American ALTRONIC, including:magneto, high-tension coil
4. Starting system: DC 24V electric motor.
5. Mixer: IMPCO
6. Spark plug: STIT
Worksite requirements for generator
The worksite needs to meet following basic requirements:
a) Ambient temperature between -40ºC~40ºC;
b) Relative humidity less than 95%(35ºC);
c) Site elevation not higher than 2500m;
d) For outdoor installation, simple rain shelter is required

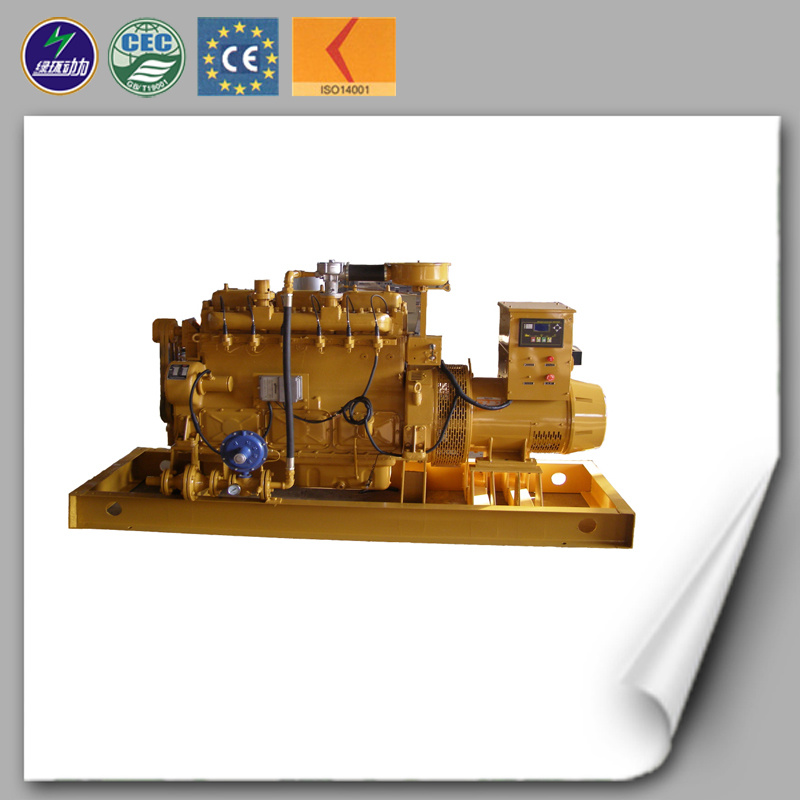

| Parameter of Biomass Gas Generator Set |
| Model Number (Engine Type) | LHBMG200 |
| Brand Name | LVHUAN |
| Prime Power/Standby Power | 160KW/200KW |
| Rated Speed | 1000/1200RPM |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1s |
| Heat consumption | ≤11mj/kw.h |
| Lubricant Consumption | ≤1.0g/kw.h |
| Engine Capacity | 26.9L |
| Cylinder Number | 12-V |
| Cylinder Bore | 138mm |
| Stroke | 150mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Siemens |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1000 running hours which arrives first |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 3250X1450X2140mm |
| Weight | 3200kg |
Main composition of biomass gas
After being gasified, the basis of gas is CO(20%), H2(9%),CH4(12%), CO2(12%), O2 (1%), N2(52%). The lower heating value is 5-6MJ/NM^3. Efficiency of gasification: 1kg dried material can generate 2Nm^3 GAS, conversation rate is more than 85%. 1kg dry material can generate 1kw.h power
Biomass gas generator Service
We will send our engineer to prospect the site of power station free to charge. According to the situation of site we can supply you many drawings which can meet the requirement of design and construction, like power station floor plan, engineering flow sheet of circle cooling system, genset installation, genset foundation, electrical connection and some other techincal support etc.
We will send our engineer to the site to guide you the installation of generator set, subsystem and relative equipment. We will debug the generator set till it can generate power successfully. We will also supply a technical training to the operators. You also can send your staff to our company. We can train you till you can operate the generator set and during this time we can offer you board and lodging free of Charge.
(1)in our company, different people is in charge of different area, we will response periodically and support you technical service free of charge, include equipment debugging, fault eliminating, technical advice, maintenance assistant, etc.
(2)For the quality problem, we will service for you free of charge during the guarantee period.
(3)One year guarantee period and lifetime service.
(4)Insisting on principle of "solving problems first, trying to recover the generator set as soon as possible and then analysis the reason", we solve quality problem in time when genset doesn't work, We insure to help our clients to gain the biggest economic profit.
Why you chioce Shandong Lvhuan Power equipment Co.,Ltd.Diesl generator?
1.We are professional manufacturer for gas/diesel generator set, over 15 years produced experience;
2.Products range of gas engines/genset, including diesel engines, biomass generator sets, natural gas generator sets, biogas generator sets, coal mine gas generator set, etc.Products arrange from 5kw-3000kw ;
3.Our workshop covering more than 40000 square meters, techincal engineer and after-service more than 100 people.Also products achieved CE,ISO9001:2008,ISO2001:1400 etc.Certificats.And passed many patents.
4.Our products are well received by our customers in Spain, Italy, Canada, Venezuela, Austraila, Thailand, Malaysia,Philippine,Indonesia,and with some Africa countries etc.
5.We have many cooperation companies :Like dehydration equipment,desulfurization equipment,gasified equipment,recovery system exhaust heat,CCHP system etc.So can offer you complete project proposal if you like.
Our advantage
Strong technology research and development team
Strong sales team
Factory area of vast
Ever export many country in the world, we have many case of succesfully
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
