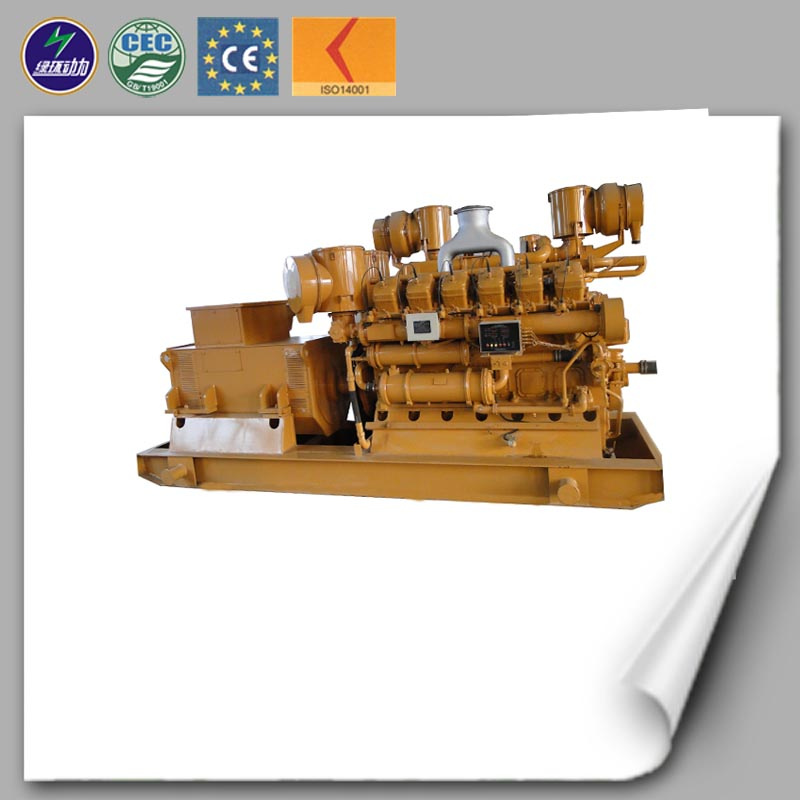

Lhbg200 Biogas Generator with Silent Generator for Sale

Model Number (Engine Type)	Lhbg200
Brand Name	Lvhuan
Prime Power/Standby Power	400kw/500kw
Rated Speed	1000/1200rpm
Rated Frequency	50/60Hz
Rated Voltage	400V/230V
Phase	AC 3-Phase, 4 Wire

Introduction of Biogas Generator set
Biogas burning power generation is the large-scale construction and development of comprehensive utilization of biogas pool and a biogas utilization technology, it will have a biogas anaerobic fermentation processing, used on the engine, and is equipped with integrated power generation device, to generate electricity and heat.Biogas power generation has the characteristics of gen efficiency, energy saving, safety and environmental protection, is a widely distributed and distributed energy at low price.


Gas requirements of biogas genset
Within 1m from pressure regulating valve of gas intake
Gas temperature:≤40°C
Pressure:3-20kpa, pressure changing rate:≤1kpa/min
H2S:≤200mg/Nm³
NH3:≤20mg/Nm³
CH4 content:≥40%, changing rate:≤2%min
Impurity particle size:≤5μm, impurity content:
≤30mg/Nm³
Moisture content:≤40g/Nm³

Main spare parts:
1.Control system:America Woodward control system
2.Controller:ComAp, Deepsea, Woodward
3.Ignition system:American ALTRONIC, including:Magneto, high-tension coil
4.Starting system:DC 24V electric motor.
5.Mixer:IMPCO
6.Spark plug:STITT

Worksite requirements for generator:
The worksite needs to meet following basic requirements:
A) Ambient temperature between -40ºC~40ºC;
B) Relative humidity less than 95%(35ºC);
C) Site elevation not higher than 2500m;
D) For outdoor installation, simple rain shelter is required.
AC 3-Phase, 4 Wire
Advantage
· Advanced configuration keep accurate ans stable working condition under high speed working speed
· High generalization, easy maintenance, low maintenance cost.
· Economical, low operating cost
· Reduced the carbon deposition on the wear of the engine cylinder and the valve to prolong the using life of the genset.
· Adopt one of the world's most advanced gas control technology, fully available to the characteristics of fuel gas.
· Powerful low pressure gas SPI (single point Injection) system used for various supercharger premixed engine.
· Suitable for differnt concentration methane and propane, variety of quality gas.
· Precise air-fuel ratio rarefied combustion control and Generator speed/load control
· Realize lean burn, reduce the intake pipe tempering and improved efficient to reduce the heat load.

Certificate
We have CE, ISO14001, ISO9001 and CEC certificate to keep the good quality.Please contact us for more details.


Service committee:
1.Pre-sale service:
1) We will send our engineer to prospect the site of power station free of charge.
2) According to the situation of site, we will provide design drawings, such as power plant floor drawing, cooling system drawing, genset foundation, control room design, etc.

2.Sale service:
1) Operator training would be conducted by Lvhuan technicians during the process of commissioning or Factory training course in China,
2) Installation and commission of the genset would be instructed assisted by Lvhuan technicians at site.

3.After-sale service:
1) We have strong after-sale team, we will response within 24 hours and provide technical supports by phone or site guiding, help our clients to gain the biggeset profit.
2) For the quality problem, we will service for you free of charge during the guarantee period.
3) We provide one year guarantee period and lifetime service.

Plentiful spare part supply:
1.We have spart parts department, plentiful spare part supply for all genset model will guarantee genset lifetime running.
2.All parts were from original factories or professional factories, complete in specification, keep good quality.


FAQ:
1.How to choose the right model?
To choose a right model, we need to know required continuous output power, local voltage and frequency and fuel (such as diesel, natural gas, biogas, biomass gas, coal gas, syngas, etc.).For biomass power plant and coal gas power plant, some clients may doesn't have gasification system, then we need information about raw material.

2.What's the warranty?
The warranty is one year.We will offer free service and spare parts during warranty period.Lifetime service will be provided by our trustworthy after-sale team.

3.How to do the maintenance?
Operator training will be provided by our technician.After training, local operator can do the basic maintenance by themselves according to our maintenance manual.

4.Will be operation training offered?
Yes, operator training would be conducted by our technicians during the process of commissioning or factory training course in China.

5.What's about the installation and commissioning?
Installation and commissioning of the genset would be instructed assisted by our technicians on site.
