1, Safe easy -to-use heat source - No on-site products of combustion.
2, Easy, quick to install, they require only water feed connection and electrical hook-up.
3, Applications include: Steam for tanks, reactors, distillations, autoclaves, dyestuffs, food products, cosmetics, paraffin's, glues, steam jacketed kettles, sterilizers, cosmetics, pipe tracing and humidification.

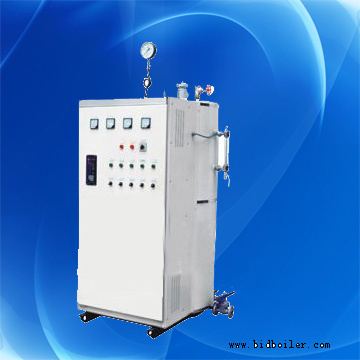

4, Electric steam boilers are efficient, quiet, and safe for your process needs.
5, Vertical design requires minimal floor space.
6, The heating elements are easily accessible-permit quick removal for service or inspection.
7, No NOX(nitrogen oxides) emission. Electric boilers have no wasted fuel going out the stack as electric boilers are environmentally friendly.
8, Completely wired control panel box located in front of the boiler
9, flexible working methods can be set to manual or automatic mode.
|
Model |
Steam Output Kg/h |
Rated Power KW |
Rated Operating Current A |
Electric Cable Paramete |
Outline Dimension mm |
Weight Kg |
Steam outlet Valve Diameter DN |
Blown Down Valve Diameter DN |
Water Inlet Valve Diameter DN |
|
LDR0.05-0.7 |
50 |
36 |
55 |
3*25+2(Copper Cable) |
600X1000X1500 |
230 |
25 |
25 |
15 |
|
LDR0.06-0.7 |
58 |
42 |
64 |
3*25+2(Copper Cable) |
600X1000X1500 |
230 |
25 |
25 |
15 |
|
LDR0.07-0.7 |
68 |
48 |
73 |
3*25+2(Copper Cable) |
600X1000X1500 |
230 |
25 |
25 |
15 |
|
LDR0.08-0.7 |
75 |
54 |
82 |
3*35+2(Copper Cable) |
600X1000X1500 |
230 |
25 |
25 |
15 |
|
LDR0.09-0.7 |
85 |
63 |
95 |
3*35+2(Copper Cable) |
600X1100X1600 |
240 |
25 |
32 |
15 |
|
LDR0.10-0.7 |
100 |
72 |
109 |
3*35+2(Copper Cable) |
600X1100X1600 |
240 |
25 |
32 |
15 |
|
LDR0.11-0.7 |
112 |
81 |
123 |
3*50+2(Copper Cable) |
600X1100X1600 |
240 |
25 |
32 |
15 |
|
LDR0.12-0.7 |
125 |
90 |
136 |
3*50+2(Copper Cable) |
600X1100X1600 |
240 |
2$ |
32 |
15 |
|
LDR0.13-0.7 |
135 |
96 |
145 |
3*70+2(Copper Cable) |
700X1200X1700 |
360 |
25 |
40 |
25 |
|
LDR0.15-0.7 |
150 |
108 |
164 |
3*70+2(Copper Cable) |
700X1200X1700 |
360 |
25 |
40 |
25 |
|
LDR0.17-0.7 |
168 |
120 |
182 |
3*70+2(Copper Cable) |
700X1200X1700 |
380 |
25 |
40 |
25 |
|
LDR0.20-0.7 |
200 |
144 |
218 |
3*95+2(Copper Cable) |
700X1200X1700 |
380 |
25 |
40 |
25 |
Beijing Double Dragon International Industrial & Mining Machinery Co., Ltd. is a company authorized by the Chinese Foreign Economy and Trade Committee which also get the right to do import and export business independently. The company locates at Beijing, the capital of China, and seats at No. 2-1803 Soubao Business Center, No. 16 Nansanhuan Xilu, Beijing, China.
Bidragon International as a professional export & import company, is one of the selling leaders of agricultural machineries in China, for we have the long stable cooperation with many manufactures of agricultures machineries & grain processing machineries. And most of our partnerships are among the best enterprises in China machinery industry. Many of them are modern enterprises with long histories of manufacturing agricultural machinery. with top quality products, perfect service, a visionary management, Beijing Double Dragon International Agricultural Machinery Co., Ltd. is ready to meet any of the customer's requests from overseas.
As a professional export and import company, our company is the sole agent in overseas market for several manufacturers, such as Changge Chili Processing Machinery Factory, Hangzhou Biomass Boiler Co., Ltd. And Hebi Yuxing Mine Hoist Factory, and they are professional manufacturers in their fields by super quality and the best service.
Our company is engaged in four ranges of machinery:
1. Spice processing machinery, such as chili dryer, chili stem cutter, chili dry washer, chili grinder, coriander and turmeric grinder, etc...
2. Different kinds of boilers, such as wood pellet boiler, straw pellet boiler, rice husk fired boiler, wood dust fired boiler, wood fired boiler and ion exchange resin for boilers.
3. Mine equipments, such as mine hoists, mine winder, mine windlass, mine winch, infrared methane sensor and other kinds of safety detecting devices for coal mines and other mines.
4. Small enrichment machinery, such as tooth picker making line, nail making machine by waste steel wire, skewer(barbecue stick) making line, etc...
