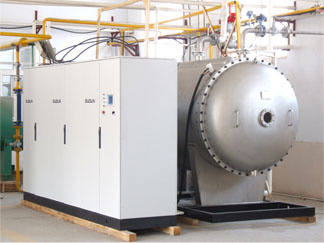

large ozone generator (20kg/h 5kg/h 3.5kg/h)
Ozone generator for air source
Power supply input 380V/3ph/50Hz Ozone concentration 16-22 mg/L
Work frequency 800Hz Inlet Flow 40-60m3/hkgO3
Work voltage 4-5KV Dew point -45ºC
Power consumption 15-18Kw/kgO3h Temperature of inlet 15-20ºC
Flow of cooling water 3-4T/hkgO3 Temperature of cooling water <30ºC Work pressure 0.05-0.1MPa Temperature rise 4-6ºC
Type Ozone output kg/h Volume( mm ) Interface caliber
Reacting tank Power supply
CF-G-2-1000g 1 1750*900*1200 2000*850*1900 PN1.0/DN32
CF-G-2-1500g 1.5 2200*1000*1400 2000*850*1900 PN1.0/DN40
CF-G-2-2000g 2 2800*1000*1600 2000*850*1900 PN1.0/DN50
CF-G-2-3000g 3 2900*1200*1800 3000*850*2120 PN1.0/DN65
CF-G-2-4000g 4 3000*1300*1900 3000*850*2120 PN1.0/DN80
CF-G-2-5000g 5 3100*1400*1990 3000*850*2120 PN1.0/DN80
CF-G-2-6000g 6 3200*1500*2100 4000*850*2120 PN1.0/DN80
CF-G-2-8000g 8 3400*1600*2200 4000*850*2120 PN1.0/DN100
CF-G-2-10000g 10 3600*1700*2300 4000*850*2120 PN1.0/DN100
Ozone generator for oxygen source
Power supply input 380V/3ph/50Hz Ozone concentration 80-100 mg/L
Work Voltage 4-5kV Inlet Flow 10-13m3/hkgO3
Work Frequency 800Hz Power consumption 8-10kW/kgO3
Dew point -45ºC Flow of cooling water 1.7-2T/hkgO3
Temperature of inlet 20ºC Temperature of cooling water <30ºC
Work pressure 0.05-0.15MPa Temperature rise 4-6ºC
Type Ozone output kg/h Volume( mm ) Interface caliber
Reacting tank Power supply
CF-G-2-2000g 2 1750*900*1200 2000*850*1900 PN10/DN32
CF-G-2-3000g 3 2200*1000*1400 2000*850*1900 PN10/DN40
CF-G-2-4000g 4 2800*1000*1600 2000*850*1900 PN10/DN50
CF-G-2-6000g 6 2900*1200*1800 3000*850*2120 PN10/DN65
CF-G-2-8000g 8 3000*1300*1900 3000*850*2120 PN10/DN80
CF-G-2-10000g 10 3100*1400*1990 3000*850*2120 PN10/DN80
CF-G-2-12000g 12 3200*1500*2100 4000*850*2120 PN10/DN80
CF-G-2-16000g 16 3400*1600*2200 4000*850*2120 PN10/DN100
CF-G-2-20000g 20 3600*1700*2300 4000*850*2120 PN10/DN100
Qingdao guolin industry Co., Ltd. is an ozone product manufacturer with the most advanced ozone technology in China. The headquarters is in qingdao, China.
Qingdao guolin industry Co., Ltd. Are mainly engaged in the design of ozone project, manufacturing, installation, debugging and maintenance of ozone equipments. The company can ensure the advanced technology and reliable operation of ozone equipments which are sold in the Chinese market by relying on technical advantages of qingdao research center of ozone applied engineering technology. Qingdao guolin ozone equipment Co., Ltd. Assures its patron of products with high quality and the best after-sale service with over ten years experiences in manufacturing and operation of ozone generator.
Qingdao guolin industry Co., Ltd. has production base covering 13, 000 square meters. We produce the dta tubular dielectric, ozone generation device, high voltage transformer and install power supply system in this production base. After that, the ozone generators will be tested and debugged. Then the machines will be handed over to customers after 72-hour normal operation. According to different demands of customers, we can design and produce ozone generators with different types from 10g/h to 50kg/h. The company can produce over 500 sets of equipments every year.
Our ozone products have been applied to the fields of running water treatment, sewage treatment, industrial oxidation, disinfection of swimming pool, papermaking and laminating, waste gas treatment and space disinfection and so on. Many products of our company have been exported to many countries, such as Turkey, Indonesia, Brazil, Italy, Syria, Iran, India, Australia, Sudan, Israel, Ghana and so on.
