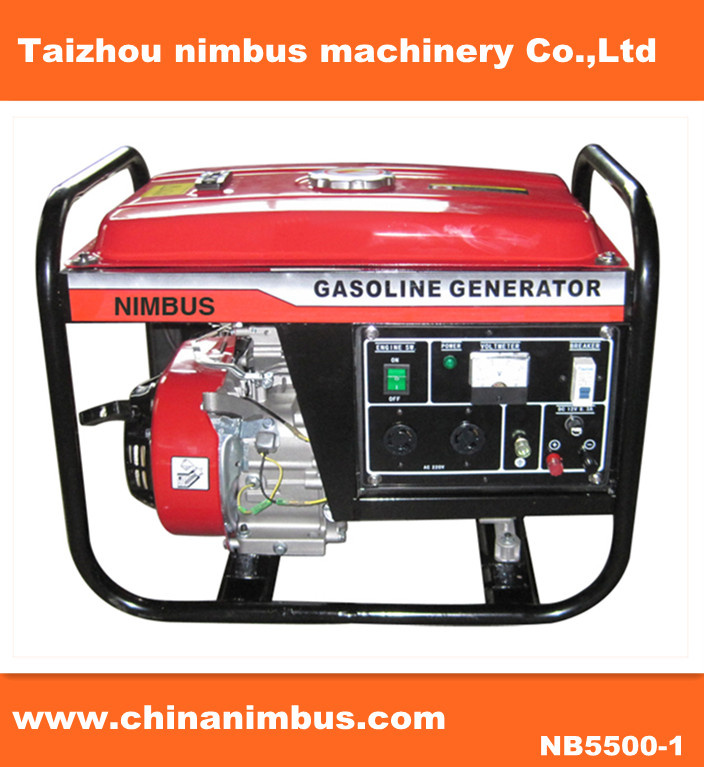

Lantop Gasoline Generator (NB5500-1)
Rated Power: 2.0kw
Max Power: 2.2kw
Frequency: 50/60HZ
Voltage: 220/230v
Alternator Coil: Copper coil
Engine: NB168F ----6.5HP air-cool, 4-stroke one cylinder engine
Start System: Recoil/Electric
Displacment: 196cc
Fuel Tank Capacity: 15L
Lube Oil Capacity: 0.6L
Noice Level: 67dB
Dimension: 620x440x440mm
N/G: 36/38 40/42KG
20GP Capacity: 240PCS
With CE, ISO9001: 2000 certificate.
We are confident in supplying products with good quality at reasonable price.
Looking forward to long-terms, fruitful and stable cooperation with you.
Please contact me if you have any interest, thanks.
Generator | Rating frequency(Hz) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
Rating Voltage(V) | 110/120/220/230/240 |
Rating power(KVA) | 2 | 2.5 | 2.5 | 2.7 | 2.8 | 3.6 | 4 | 4.5 | 5 | 5.5 |
The Max. power(KVA) | 2.2 | 2.7 | 2.7 | 3 | 3 | 4.2 | 4.8 | 5 | 5.5 | 6 |
Power factor(cos) | 1 |
Engine | Type | 168F | 168F-1 | 177F | 182F | 188F |
Category | Single crock, Force air-cooled four-stroke, top-intalled gasoline engine |
|
|
Exclusion of cylinder(cm3) | 163 | 196 | 270 | 337 | 389 |
The Max. output power(KW/rpm) | 4.8/3600 | 5.7/3600 | 7.0/3600 | 8.0/3600 | 9.5/3600 |
Ignition system | Transistorized magneto |
Start system | Recoil/E-start |
Capacity of fuel tank(L) | 15 | 15 | 25 | 25 | 25 |
Consumption of fuel(L/h) | 1.13 | 1.32 | 1.9 | 2.45 | 2.7 |
Consecutive Working(h) | 13 | 11 | 13 | 10 | 9 |
Noise(at7m)(dB) | 65 | 65 | 69 | 72 | 74 |
Capacity of engine oil | 0.6 | 1.1 |
Dimension | Set dimension(mm3) | 615× 435× 455 | 615× 435× 455 | 620× 470× 480 | 635× 510× 485 | 670× 510× 510 |
Net weight(kg) | 39 | 40 | 62 | 78 | 80 |
Standard Equipment | Large capacity fuel tank, large capacity muffler, fuel gauge, voltmeter, AVR, oil alert, Ac circuit breaker |
|
Purchasing | Four-wheel dolly kit | Yes |
Lantop Gasoline Generator (NB5500-1)
Taizhou NIMBUS Machinery Co., Ltd. Established in 2005, Which is specialized in gasoline generators, diesel generators, gasoline engine, water pump, chain saw,
Brush cutter, etc.
We have many years experiences in this area. Our company has passed the ISO9001/2000 Quality management Certificate and CE Certificate, Owing the capacity of producing 30, 000 sets per month of several kinds of universal machines. The products are mainly export Germany, Poland, England, France, Bulgaria, Egypt, Nigeria, Angola, Uganda, Kenya, Ethiopia, South Africa, Venezuela, Guatemala, Dominican, India, Nepal, Pakistan, UAE, Malaysia, Iraq, Indonesia, Yemen, Vietnam, Bangladesh, Afghanistan countries etc.
We are looking forward to cooperation with friends from all over the world, And give you best price, best services, best quality. Welcome to visit us and develop long time reationship with our company. We will never let you down.
BRING THE BEST TO THE WORLD
