| Price: | US $ 279-280/Piece |
|---|---|
| Trade Terms: | FOB,EXW,CIF |
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T |
Gasoline Generator Detail DescrIption
1. Super Gasoline Generator
2. Professional team new designs, totally new on the market
3. Key Start With Battery(E-Start) is optional
4. The voltage: 220 V
5. Power output: 5.0KW
6.13 HP Engine
7. Copper/ Aluminium Alternator is optional
8. Single-Phase or three phase is optional
9. New type volt-meter & current- meter, with protection double panel
10. Best qualiy Crankcase and Crankcase Cover
11. High Quality Carburetor

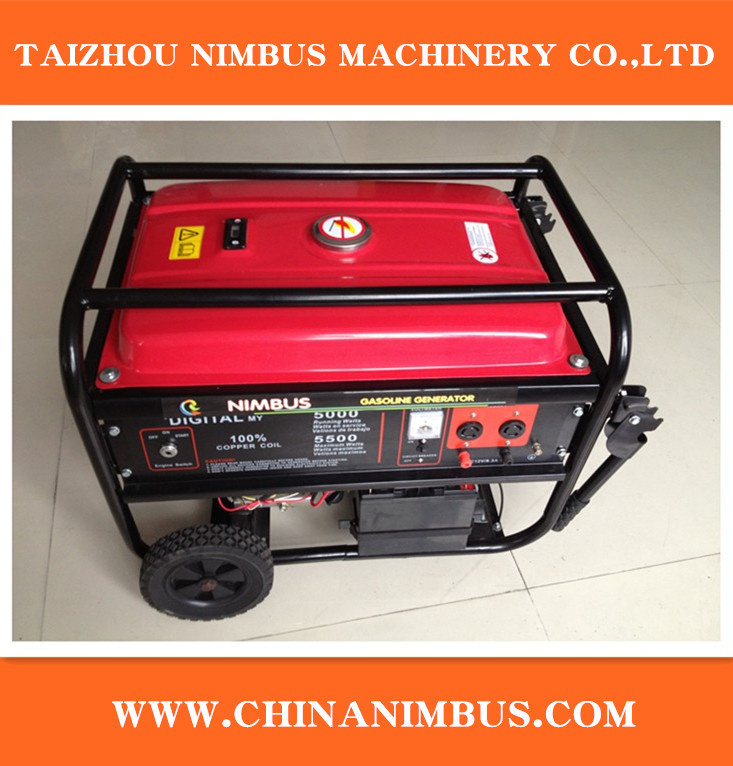

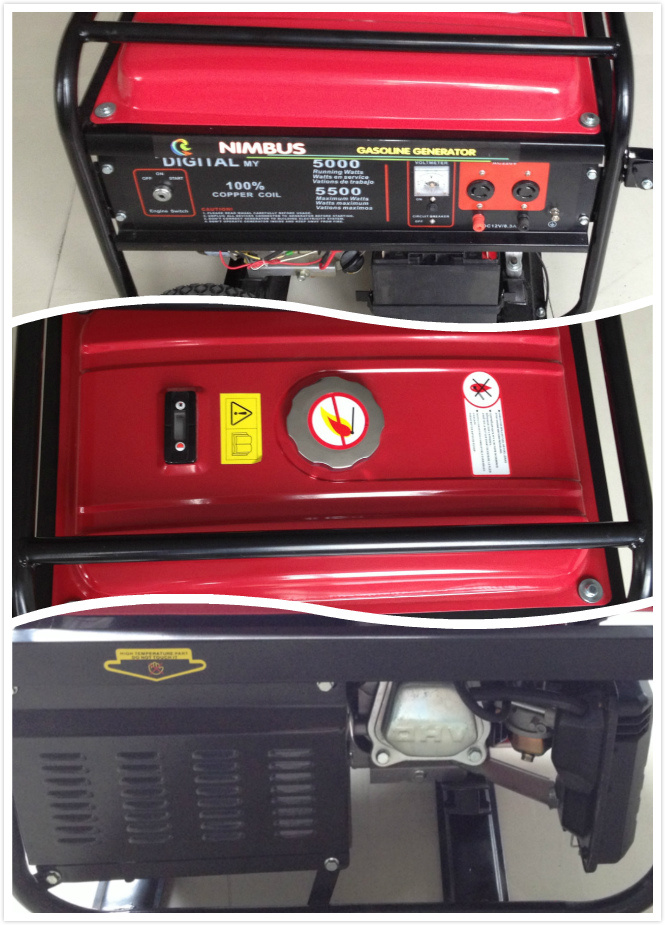

Gasoline Generator Pictures:
RED:

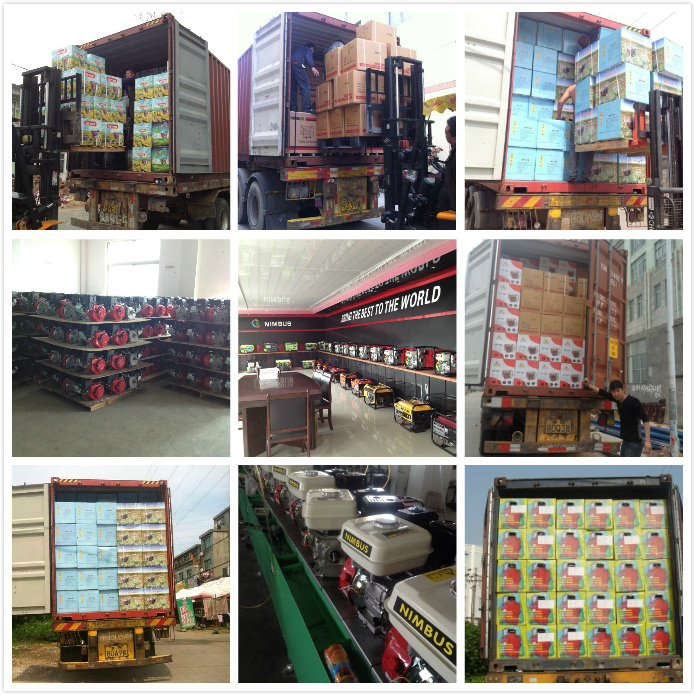

Gasoline GeneratorLOADING PICTURE:
| Generator | Rating frequency(Hz) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | |
| Rating Voltage(V) | 110/120/220/230/240 | |||||||||||
| Rating power(KVA) | 2 | 2.5 | 2.5 | 2.7 | 2.8 | 3.6 | 4 | 4.5 | 5 | 5.5 | ||
| The Max.power(KVA) | 2.2 | 2.7 | 2.7 | 3 | 3 | 4.2 | 4.8 | 5 | 5.5 | 6 | ||
| Power factor(cos) | 1 | |||||||||||
| Engine | Type | 168F | 168F-1 | 177F | 182F | 188F | ||||||
| Category | Single crock,Force air-cooled four-stroke,top-intalled gasoline engine | |||||||||||
| Exclusion of cylinder(cm3) | 163 | 196 | 270 | 337 | 389 | |||||||
| The Max.output power(KW/rpm) | 4.8/3600 | 5.7/3600 | 7.0/3600 | 8.0/3600 | 9.5/3600 | |||||||
| Ignition system | Transistorized magneto | |||||||||||
| Start system | Recoil/E-start | |||||||||||
| Capacity of fuel tank(L) | 15 | 15 | 25 | 25 | 25 | |||||||
| Consumption of fuel(L/h) | 1.13 | 1.32 | 1.9 | 2.45 | 2.7 | |||||||
| Consecutive Working(h) | 13 | 11 | 13 | 10 | 9 | |||||||
| Noise(at7m)(dB) | 65 | 65 | 69 | 72 | 74 | |||||||
| Capacity of engine oil | 0.6 | 1.1 | ||||||||||
| Dimension | Set dimension(mm3) | 615×435×455 | 615×435×455 | 620×470×480 | 635×510×485 | 670×510×510 | ||||||
| Net weight(kg) | 39 | 40 | 62 | 78 | 80 | |||||||
| Standard Equipment | Large capacity fuel tank,large capacity muffler,fuel gauge,voltmeter,AVR,oil alert,Ac circuit breaker | |||||||||||
| Purchasing | Four-wheel dolly kit | Yes | ||||||||||
| Prod Model: | NB7500 |
|---|---|
| Markets: | South America,Eastern Europe,Southeast Asia,Africa,Mid East,Western Europe |
| Output Type: | AC Single Phase |
