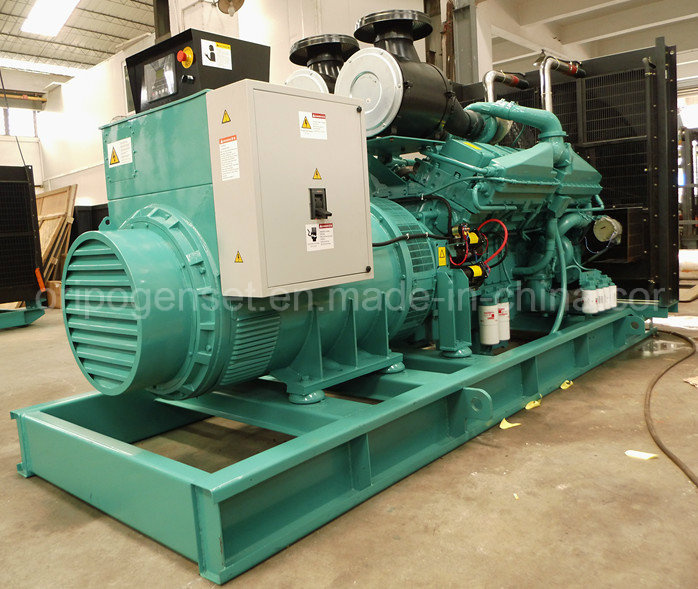

Kta38-G2 Cummins Engine Diesel Generator with Intelligent Controller
| Price: |
US $ 85000/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Description-600kw Diesel Generator Set With Cummins Engine
1. Powered by Cummins Engine2. With Stamford / Leateck Alternator3. With CHINT / ABB MCCB & Electronic Components4. Electric Start with Battery5. Base Integrated Fuel Tank6. ATS, Deepsea / ComAp / Smartgen Controller7. Comply with ISO9001/CE/SGS8. After-sale Services
| Model No. | STANDBY POWER | PRIME POWER | ENGINE | ALTERNATOR | CONTROLLER |
| KVA | KW | KVA | KW |
| OCL-825 | 825 | 660 | 750 | 600 | KTA38-G2 | LTG354H1 | 6110 |
230/400VAC,50Hz,0.8PF (lag),Three phase four wire
Generator set specifications| Governor Class | ISO8528 G3 |
| Potential Drop | 1% |
| Steady Voltage Regulation | 1% |
| Frequency Drop | Synchronous(0%) |
| Steady-state Frequency | 0.25% |
| R.R.I.Suppression | BS EN 61000-6-4 / BS EN 61000-6-2 |
| Fuel Consumption Rate ,g/kw.h(L/hr) | 199 (152.72) |
| Starting Battery Capacity ,A/hrhhr | 200*4 |
| Total Coolant Capacity ,L | 252 |
| Fuel Capacity (base tank),L | N/A |
Engine Data| Model | KTA38-G2 |
| Type | "V" Type 12 Cylinder,4 Cycle |
| Displacement ,L | 37.8 |
| Compression Ration | 14.5:1 |
| Aspiration | Turbo, Water / Air Cooling |
| Fuel System | PT type Fuel Pump,EFC Electronic Governor |
| Bore*Stroke(mm) | 159*159 |
| Rated Speed ,rpm | 1500 |
| Governor Type | Electronic |
| Starting Voltage | 24V ,Negative ground |
| Battery Charging System | 24V 35A |
| Lubricant Capacity ,L | 135 |
| Coolant Capacity, L | 252 |
Alternator Data| Protection Class | IP21 |
| Insulation Class | Class H |
| Temperature Rise in Standard | 125 ºC(When Ambient Temp.is 40 ºC) |
| Excitation Type | Brushless & Self-excited |
| Waveform Distortion | No load<1.5% Non-Distorting balanced linear load<5% |
| Telephone Interference(TIF) | <50 |
| Telephone Interference(THF) | <2% |

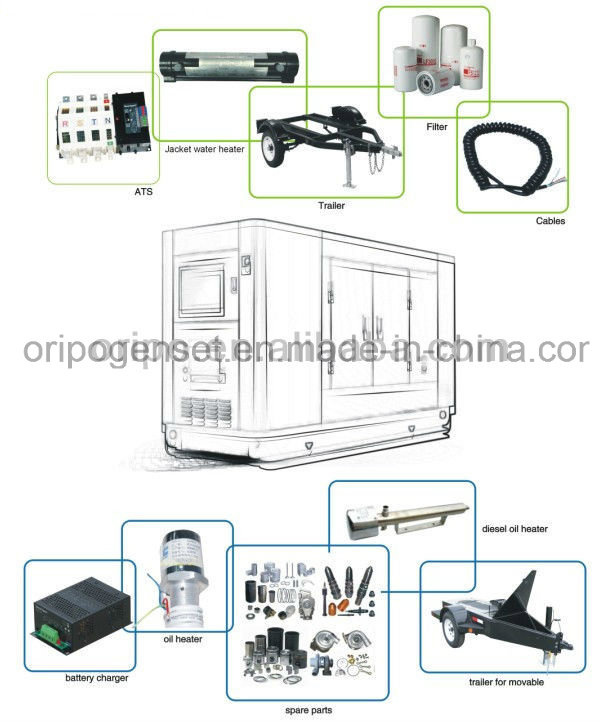

OPTIONAL ACCESSORIES/SPARE PARTS:

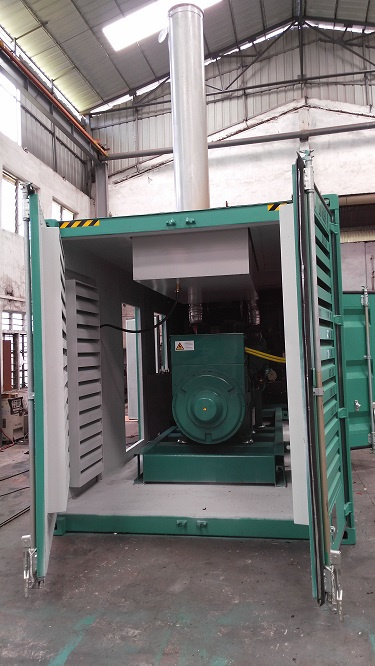

-Sound and water proof enclosure
-Trailer/Movable power station
-Battery charger
-Jacket water heater
-Oil heater
-Diesel oil heater
-Automatic transfer switches(ATS) & paralleling system
-Extra fuel tank
-Fuel water separator
Warranty:
1-One year or 1000working hours whichever comes first!
2-Free spear parts offer in warranty period, if confirm manufacturing defect.
3-Free professional techical service support.
Location: Located in Foshan City , quite near guangzhou, welcome to our factory to check the products and the quality.
1.From Guangzhou Baiyun International airport to Oripo:
a.It takes about 1 hour by car/taxi,it is about 58 kilometer;
b.Or take the subway from JiChangNan station to HanXiChangLong Station(you need to transfer at the TiYuXiLu station to PanYu direction), then take a taxi to Oripo, it will take about 1.5 hour.
2.From Canton fair complex to Oripo:
a. It takes about 30 minutes by car / taxi, it is about 32 kilometer;
b. Take the subway from XinGangDong Station / PaZhou station to HanXiChangLong Station, then take a taxi to Oripo, It will take about 1 hour.Service gurantee:
BEFORE SERVICE:
According to the clients' requirement and actual situation, we will furnish the technology consultation and kinds ofinformation.including drawings,specifications and offical offer.
AFTER SERVICE:
Guarantee for one year or 1000 running hours (accord to whichever reach first) from installed date. During the guaranteeperiod, such as Cummins or Perkins generators. they are international brands and the after-sale service is worldwide,you can contact yourcountry's after-sale or contact us for repairment;When replacing spare parts,please take some pics to describe the problems,we will solve it a.s.a.p.
maintenance:
1) Do the full power load test for five hours before package.
2) One year or 1000 working hours, whichever comes first.
3) After expiration, we provide spare parts maintenance with low price.
Contact Details:
FOSHAN ORIPO POWER ENGINEERING CO.,LTD
Contact person:Janet
Mobile: +86-18923200408
Fax:0757-28791208
Web:http://en.oripo.com
| Prod Model: |
OCL-825 |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Dimension: |
20'ft Container |
| Alternator: |
Leateck/Stamford |
| Controller: |
Smartgen/Deep Sea |
| Insulation Grade: |
H |
| Protection Grade: |
IP21-23 |
| Start System: |
Electric Start |
| Type: |
Micro-Computer Control Automatic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
