Home Generator Products CE Authorized 450kVA Cummins Engine Diesel Power Generator

CE Authorized 450kVA Cummins Engine Diesel Power Generator

CE Authorized 450kVA Cummins Engine Diesel Power Generator
Price: US $ 20500/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Money Gram,Western Union
CE Authorized 450KVA Cummins Engine Diesel Power Generator



Product Description

1. Cummins Power diesel generator
2. Stanby power: 500kva/400kw, prime power: 450kva/360kw
3. Frequency: 50Hz or 60Hz
4. Market: Nigeria, Ghana, Uganda, Kenya, Sudan, South Africa.

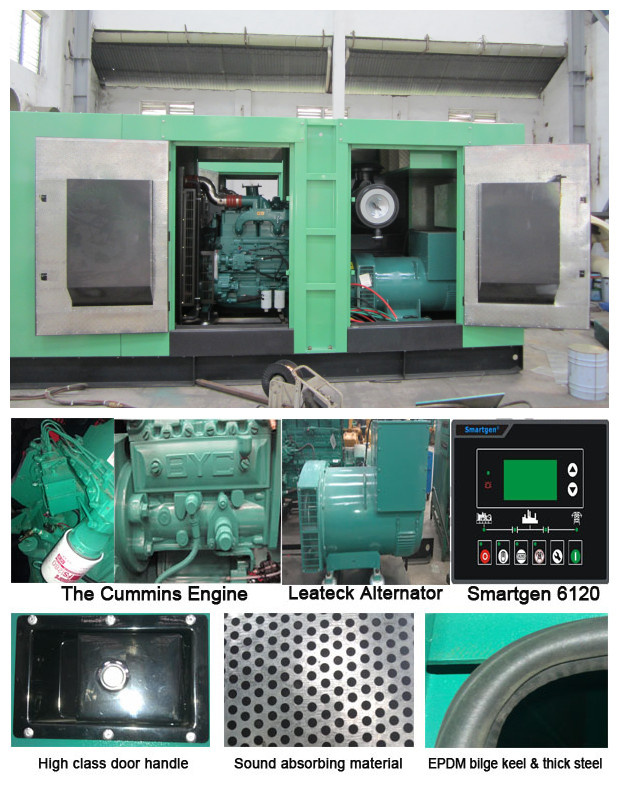

5. CumminS Engine
6. Leateck alternator.

Model No.STANDBY POWERPRIME POWERENGINEALTERNATORCONTROLLER
KVAKWKVAKW
OCL-500500400450360KTA19-G3LTG314J16110
230/400VAC,50Hz,0.8PF (lag),Three phase four wire

Generator set specifications

Governor ClassISO8528 G3
Potential Drop1%
Steady Voltage Regulation1%
Frequency DropSynchronous(0%)
Steady-state Frequency0.25%
R.R.I.SuppressionBS EN 61000-6-4 / BS EN 61000-6-2
Fuel Consumption Rate ,g/kw.h(L/hr)205(95.35)
Starting Battery Capacity ,A/hrhhr200*2
Total Coolant Capacity ,L106
Fuel Capacity (base tank),LN/A
Engine Data
ModelKTA19-G3
TypeIn-line 6 Cylinder,4 Cycle
Displacement ,L18.9
Compression Ration13.9:1
AspirationTurbo, Water / Air Cooling
Fuel SystemPT type Fuel Pump,EFC Electronic Governor
Bore*Stroke(mm)159*159
Rated Speed ,rpm1500
Governor TypeElectronic
Starting Voltage24V ,Negative ground
Battery Charging System24V 35A
Lubricant Capacity ,L50
Coolant Capacity, L106
Alternator Data
Protection ClassIP21
Insulation ClassClass H
Temperature Rise in Standard125 ºC(When Ambient Temp.is 40 ºC)
Excitation TypeBrushless & Self-excited
Waveform DistortionNo load<1.5% Non-Distorting balanced linear load<5%
Telephone Interference(TIF)<50
Telephone Interference(THF)<2%
Exhaust System
Exhaust air flow1489 L/S
Exhaust Temperature  532ºC
Max Back Pressure 10kPa
Air Intake System
Max Intake Restriction6.23 kPa
Burning Capacity533 L/S
Air Flow9800 L/S
Lubricant System
Total Lubricant Capacity50L
Lubricant Consumption4g/kwh
Engine Oil Tank Capacity38L
Oil Pressure at Rated Speed345-483 kPa

Warranty:
12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; After the warranty period, we can supply the required spare parts for you under cost prices


Our service quality assurance:
1)Before-sale Service: we provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
4)Spare parts supply: We provide all kinds of spare parts and technical support.
5)Main overhaul or maintenance service: We provide perennial major overhaul and maintenance service

Prod Model: OL450
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension: 3400*1380*2050mm
Type: Basic Diesel Generator
Installation Method: Fixed
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
Oripo Established in 1998, Oripo Power Engineering Co., Ltd is professional leading manufacturer, suppliers, exporter and authorized dealers of diesel gensets. With over 20, 000 square meters and a staff nearly 200, the headqauter is loacted in Foshan city, adjacent to Guangzhou which is the trade center of Guandong province. We offering power genset, industrial genset, silent genset, weather proof genset, Cummins genset, Perkins genset, Yuchai genset, Shanghai Dongfeng genset, Deutz genset, Weichai electric genset, China domestic genset, silent diesel generator, portable power generator, trailer diesel generator and electric power generator.

Currently, Oripo cooperated with multinational companies formed a strategic partnership. Import CUMMINS, PERKINS series generator sets, and purchase engine from with Cummins, SDEC, Yuchai, LOVOL, Deutz, alternater with STAMFORD, MARATHON, LEADTECH and other international or domestic famous brand. Establish a long-term friendly cooperation relations with the branded engine and alternator company, authorized to be the OEM partner, In 2009, Oripoe authorized by Cummins, Shanghai Dongfeng and Yuchai to provide OEM service. As professional qualified manufacturer provide OEM genset, spare parts, after sale service, in order to better serve customers and laid a solid foundation.

During the last ten odd years, Oripo has been dedicated to pursuing professional production, thus prevailing in the market with its superior quality, cutting-edge technology and tailor-made services. Moreover, with an endeavor to expand our business operations, we adhere to ethical business practices, transparent business dealings and work to attain the confidence and trust of our clients.
