Home Generator Products Kg047aro, Angular Contact Ball Bearing, Bearing Part

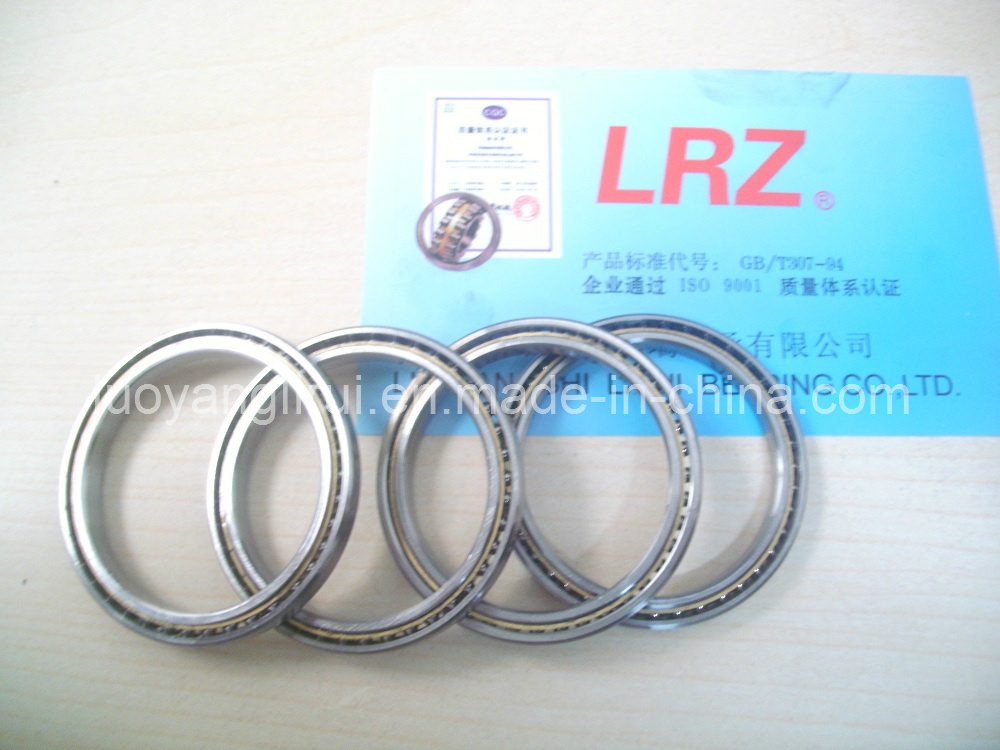

Kg047aro, Angular Contact Ball Bearing, Bearing Part

Kg047aro, Angular Contact Ball Bearing, Bearing Part
Price: US $ 0.01/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: T/T,Paypal,Western Union
Angular contact ball bearings:

Contact Angle between ring and ball, standard of contact Angle is 15 ° , 30 ° , and 40 °
The larger the contact Angle is, the larger axial load capacity will be.
The smaller the contact Angle is, the more conducive the high-speed rotation will be.
Single-row bearing can withstand radial load and one-way axial load.
DB combination, DF combination, and double-row bearings can withstand radial load and two-way axial load.
DT combination is suitable for occasion, like one-way axial load is greater, and the lack of rated load for a single bearing.
High speed with ACH type bearings are mostly used for machine tool spindle, of which the ball diameter is small and numerous.
Angular contact ball bearings are suitable for high speed and high precision rotation.

Main Use:
Single-row: Machine tool spindle, high frequency motor, gas turbine, centrifugal separator, small car front wheel, differential pinion shaft
Double-row: Oil pump, roots blower, air compressor, all kinds of transmission, fuel injection pump, printing machinery.

Packaging & Delivery
Packaging details:
1, wooden boxes
2. Be oiled and wrapped with water-proof belt
3. Wooden pallets
4. According to customers requirement
Delivery Detail:
2-5 days for stock bearing, 40-60 days for future goods

Specifications
1. Reasonable price
2. Various types
3. Quick delivery
4. OEM service

Product Specification:
1. Series: Angular Contact Ball Bearing
2. Cage: Machined brass cage,
3. Material: GCr15/GCr15SiMn
4. Precision: P0
5. Quality: IS09001: 2000
6. Packing: Standard export packing & industry packing & according to clients' requirement.
7. Brand: LRZ
8. Origin city: Luoyang of China
9. MOQ: 2 pcs
10. Delivery term: FOB Shanghai port & CIF
11. Others OEM orders available

Type
Major dimensions
weight
Rated loadingLimiting speedEquivalent
dDBradialthrust
staticdynamicstaticdynamic
SILVERTHIN
InMmInMmInMmkgCo(N)Cr(N)Co(N)Cr(N)(RMP)
KG040ARO4101.66152.4125.41.6334217032650121700947004000SG040ARO
KG042ARO4.25107.956.25158.75125.41.7244426033720127800978203810SG042ARO
KG045ARO4.5114.36.5165.1125.41.81446390347901338901009303640SG045ARO
KG047ARO4.75120.656.75171.45125.41.86048490358501399401039503480SG047ARO
KG050ARO51277177.8125.41.95050580368801460401069403330SG050ARO
KG055ARO5.5139.77.5190.5125.42.13254800383001582201110303080SG055ARO
KG060ARO6152.48203.2125.42.31359030384101703701143202860SG060ARO
KG065ARO6.5165.18.5215.9125.42.44963250405201825601174802670SG065ARO
KG070ARO7177.89228.6125.42.63167440416801947401208102500SG070ARO
KG075ARO7.5190.59.5241.3125.42.76771660425302068901232602350SG075ARO
KG080ARO8203.210254125.42.94875890435902190701264602220SG080ARO
KG090ARO9228.611279.4125.43.26684340453302434101314002000SG090ARO
KG100ARO1025412304.8125.43.58392750469702677401362001820SG100ARO
KG110ARO11279.413330.2125.43.901101200485702920701408301670SG110ARO
KG120ARO12304.814355.6125.44.128109600499503164501448801540SG120ARO
KG140ARO14355.616406.4125.44.899126460523603651101519101330SG140ARO
KG160ARO16406.418457.2125.45.579143320549804137701594701180SG160ARO
KG180ARO18457.220508125.46.214160220573704626201656101050SG180ARO
KG200ARO2050822558.8125.47.16717708060550511100172720950SG200ARO
KG250ARO2563527685.8125.48.84521921067790632980184250770SG250ARO
KG300ARO3076232812.8125.410.56926138074230754420204710650SG300ARO
KG350ARO3588937939.8125.412.29230355079990876300226150560SG350ARO
KG400ARO401016421066.8125.413.97134572085200998180246610490SG400ARO
Prod Model: KG047ARO
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Diameter: 120.65 Mm
Outer Diameter: 171.45 Mm
Width: 25.4 Mm
Weight: 1.860 Kg
Rolling Body: Ball Bearings
The Number Of Rows: Single
Outer Dimension: Medium and Large(',120-190mm)
Load Direction: Radial Bearing
Material: Bearing Steel
Separated: Unseparated
Luoyang Lirui Bearing Co., Ltd, located in an ancient capital city Luoyang which is a great production base for bearing, is a new-high technology corporation with the integration of design, research and development, manufacturing. Our company is based on not only the development of China's bearing, but also the global perspective, and has first-class team of bearing experts and engineers, the domestic first-class CNC grinding, automatic equipment, and large-scale sophisticated equipment, all of these guarantee that our bearings have high precision and stability.

Our company has been found in 1994, since the establishment, we inherit "honest and trustworthy, the user orientated", adhere to high quality pre-sales technical support, superior product quality coupled with excellent after-sale service to serve every customer. We are specialized in the design, research and production to various non standard bearing, imported substitution bearing and special bearing, which are widely applied to aerospace, precision instruments, textile, precision lathe, port, mining, medical treatment, coal, cement, oil drilling, wind power generation, industrial robots, defense industry and other fields. A large number of our products are exported to the United States, Britain, Canada, Germany, Austria, Italy, Japan, Korea, Singapore, India, Pakistan, Thailand, Malaysia and other countries.

We have got ISO9001: 2000 certificate, as it is represented in "Quality Guideline", Lirui bearing focus on comprehensive quality management, and take it as a sustained effort to improve customer satisfaction. These requires our team including senior management take on the job training and further education. At the meantime, it is necessary to establish full assessment to ensure that this goes smoothly in this area. The company gradually forms a stable country and worldwide sales network. Each product reflects constant pursuit of the excellence of Lirui employees, and serves our customers by qualified products and business philosophy of "innovation, integrity and pragmatic, development". Creating value for customers and guarantee satisfaction to the customers are our principles, thus, we sincerely welcome friends from all over the world come to discuss, exchange and cooperation. Let us use our joint hands to create a bright future.
