Luoyang Lirui Bearing Co. Ltd is a professional company engaged in the production of bearings, such as series of thin-wall deep groove ball bearing, angular contact bearing, four-point contact ball bearing.
There are three kinds of structure of thin-wall bearing, such as ARO, CPO, XPO, which are short for thin-wall angular contact series, thin-walled deep groove ball series and thin-wall four-point contact ball series.
Examples:
We also specialize in the production of American KAYDON substitute precision thin section bearing, and Germany substitute thin section bearing, imported substitute bearing, and Japan NTN substitute precision thin section bearing.

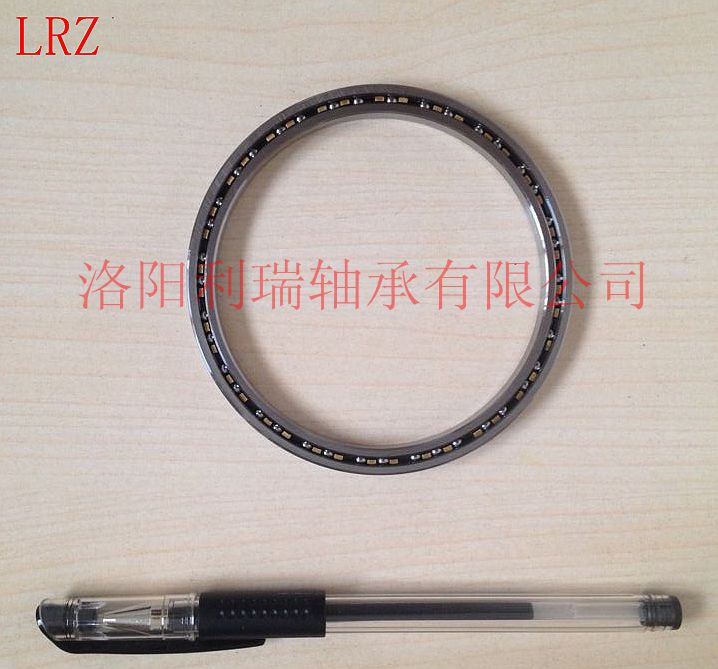

Thin section four-point contact ball bearing is an ideal choice for supporting moment heavy pressure. It successfully satisfies the four points contact between raceway and steel ball in order to support moment load and reversing axial load. Though it can be applied to withstand light load, it cannot completely substitute the radial contact ball bearing and angular contact ball bearing when supporting pure radial load.
For these reasons, they can be widely used in all aspects of life. Such as aircraft, aerospace, astronomical instruments and the clamping equipment, food processing equipment, glass production equipment and rotary worktable, machine tools, packaging equipment, medical equipment, optical scanning equipment, radar, satellite communications equipment, textile machinery, robot and semiconductor manufacturing equipment, etc.
Packaging & Delivery
Packaging details:
1, wooden boxes
2. be oiled and wrapped with water-proof belt
3. wooden pallets
4. according to customers requirement
Delivery Detail:
2-5 days for stock bearing, 40-60 days for future goods
Specifications
1.Reasonable price
2.Various types
3.Quick delivery
4.OEM service
Product Specification:
1.Series: Four-Point Contact Ball Bearing
2.Cage : machined brass cage,
3.Material: GCr15/GCr15SiMn
4.Precision: P0
5.Quality: IS09001:2000
6.Packing: Standard export packing & industry packing & according to clients' requirement.
7.Brand: LRZ
8.Origin city: Luoyang of China
9.MOQ: 2 pcs
10.Delivery term : FOB Shanghai port & CIF
11.Others OEM orders available
Type
Major dimensions
weight
Rated loading
Limiting speed
Equivalent
d
D
B
radial
thrust
static
dynamic
static
dynamic
SILVERTHIN
In
Mm
In
Mm
In
Mm
kg
Co(N)
Cr(N)
Co(N)
Cr(N)
(RMP)
KD040CPO
4
101.6
5
127
0.5
12.7
0.354
15790
9210
45640
26780
4440
SD040CPO
KD042CPO
4.25
107.95
5.25
133.35
0.5
12.7
0.376
16680
10720
48170
31090
4210
SD042CPO
KD045CPO
4.5
114.3
5.5
139.7
0.5
12.7
0.399
17570
10940
50710
31760
4000
SD045CPO
KD047CPO
4.75
120.65
5.75
146.05
0.5
12.7
0.426
18460
11170
53250
32380
3810
SD047CPO
KD050CPO
5
127
6
152.4
0.5
12.7
0.454
19310
11340
55780
32920
3640
SD050CPO
KD055CPO
5.5
139.7
6.5
165.1
0.5
12.7
0.481
21080
11740
60850
34070
3300
SD055CPO
KD060CPO
6
152.4
7
177.8
0.5
12.7
0.526
22820
12100
65920
35050
3080
SD060CPO
KD065CPO
6.5
165.1
7.5
190.5
0.5
12.7
0.553
24600
12370
70990
35900
2860
SD065CPO
KD070CPO
7
177.8
7.75
196.85
0.5
12.7
0.331
19220
7650
55470
22150
2710
SD070CPO
KD075CPO
7.5
190.5
8.5
215.9
0.5
12.7
0.64
28110
13080
81140
37900
2500
SD075CPO
KD080CPO
8
203.2
9
228.6
0.5
12.7
0.694
29850
13300
86210
38570
2350
SD080CPO
KD090CPO
9
228.6
10
254
0.5
12.7
0.78
33360
13970
96350
40030
2110
SD090CPO
KD100CPO
10
254
11
279.4
0.5
12.7
0.853
36880
14410
106.49
41770
1900
SD100CPO
KD110CPO
11
279.4
12
304.8
0.5
12.7
0.934
40390
14720
116630
42700
1740
SD110CPO
KD120CPO
12
304.8
13
330.2
0.5
12.7
1.021
43900
15260
126770
44260
1600
SD120CPO
KD140CPO
14
355.6
15
381
0.5
12.7
1.238
50930
15930
147060
45990
1380
SD140CPO
KD160CPO
16
406.4
17
431.8
0.5
12.7
1.406
57960
17150
167340
49060
1210
SD160CPO
KD180CPO
18
457.2
19
482.6
0.5
12.7
1.579
64900
18300
187630
50670
1080
SD180CPO
KD200CPO
20
508
21
533.4
0.5
12.7
1.746
72020
19380
207910
53020
980
SD200CPO
KD250CPO
25
635
26
660.4
0.5
12.7
2.173
89590
21830
258620
60230
780
SD250CPO
KD300CPO
30
762
31
787.4
0.5
12.7
2.599
107160
24010
309330
67880
660
SD300CPO
Deep groove ball bearings features :
Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements. The bearing ring grooves are circular arcs made slightly larger than the radius of the ball.
The balls make point contact with the raceways (elliptical contact when loaded). The inner ring shoulders are of equal height (as the outer ring shoulders). Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. Standard ball retainers (cages) are made from pressed steel. Machined cages are used in bearing operation at very high speed or for large diameter bearings.
Deep Groove ball bearings with seals or shields are standardized. They contain proper amount of grease in advance.
Deep groove ball bearings types:
1, single row deep groove ball bearings
2, single row deep groove ball bearings with dust cover
3, with a dust cover, a ring of single row deep groove ball bearings
4, the outer ring on the stopper groove and snap ring of single row deep groove ball bearings
5, deep groove ball bearings ball gap
6, double row deep groove ball bearings
In accordance with the sizes of deep groove ball bearings can be divided into:
(1) miniature bearings ---- nominal diameter size range of 26mm bearings;
(2) small bearing ---- nominal diameter size range of 28-55mm bearings;
(3) small and medium-sized bearings ---- nominal diameter size range of 60-115mm bearings;
(4) large bearing ---- nominal diameter size range of 120-190mm bearings
(5) large bearing ---- nominal diameter size range of 200-430mm bearings;
(6) ---- large bearing diameter size range of 440mm or more bearings.
These deep groove ball bearing products are widely used in metallurgy, power, petrochemical, construction machinery, railway, steel, papermaking, cement, mining and other industries.
With adequate supply, large stock and convenient transportation, we warmly welcome new customers to visit us.
Our survice:
1. We can change the rubbersealcolor according to your actual requirements.
2. Customized the marks based on your requirements.
3. Choose the different package to your needs.
4. Pallet: Wooden pallet with plastic film against moisture.
Professional production team, production line, experienced technical experts who engaged in this industry for more than 20 years. We have the professional production line:
1. Our bearings are made of bearing steel, it have better corrosion resistance, rigidity and toughness.
2. Double Seal: Adopt nature rubber, make it hard for dirt and grime to get in, running more quietly.
3. Cage: Also made of bearing Steel, it is more durable than Carbon Steel.
4. Capacity: 5000000 PCS/MONTH.
5. All LRZ products are made of Material GCr15 or GCr15SiMn. If you have special requirements, please specify the details when ordering.
Sales points:
1. cheap price with good quality, good sales in the market.
2. we use the good quality grease and high quality material bearing steel, making sure the bearing can turn smooth and the life can be longer.
3. OEM service, you can make your logo in bearing or send your design sample to us, we can do the customizaton for you.
Various of bearings
(1) Crossed roller bearing.
(2)Spherical Roller Bearing 22200 22300 23000 24000 series(steel cage CC,brass cage,CA and MB)
(3)Pillow Block Bearing UC UCP UCT UCF UCFL SBPFL series
(4)Taper Roller Bearing(single row, double row and four row )
(5)Cylindrical Roller Bearing( steel cage, brass cage ,nylon cage)
(6)Thrust Ball Bearing(steel cage, brass cage)
(7)Thrust Roller Bearing(steel cage, brass cage)
Luoyang Lirui Bearing Co., Ltd, located in an ancient capital city Luoyang which is a great production base for bearing, is a new-high technology corporation with the integration of design, research and development, manufacturing. Our company is based on not only the development of China's bearing, but also the global perspective, and has first-class team of bearing experts and engineers, the domestic first-class CNC grinding, automatic equipment, and large-scale sophisticated equipment, all of these guarantee that our bearings have high precision and stability.
Our company has been found in 1994, since the establishment, we inherit "honest and trustworthy, the user orientated", adhere to high quality pre-sales technical support, superior product quality coupled with excellent after-sale service to serve every customer. We are specialized in the design, research and production to various non standard bearing, imported substitution bearing and special bearing, which are widely applied to aerospace, precision instruments, textile, precision lathe, port, mining, medical treatment, coal, cement, oil drilling, wind power generation, industrial robots, defense industry and other fields. A large number of our products are exported to the United States, Britain, Canada, Germany, Austria, Italy, Japan, Korea, Singapore, India, Pakistan, Thailand, Malaysia and other countries.
We have got ISO9001: 2000 certificate, as it is represented in "Quality Guideline", Lirui bearing focus on comprehensive quality management, and take it as a sustained effort to improve customer satisfaction. These requires our team including senior management take on the job training and further education. At the meantime, it is necessary to establish full assessment to ensure that this goes smoothly in this area. The company gradually forms a stable country and worldwide sales network. Each product reflects constant pursuit of the excellence of Lirui employees, and serves our customers by qualified products and business philosophy of "innovation, integrity and pragmatic, development". Creating value for customers and guarantee satisfaction to the customers are our principles, thus, we sincerely welcome friends from all over the world come to discuss, exchange and cooperation. Let us use our joint hands to create a bright future.
