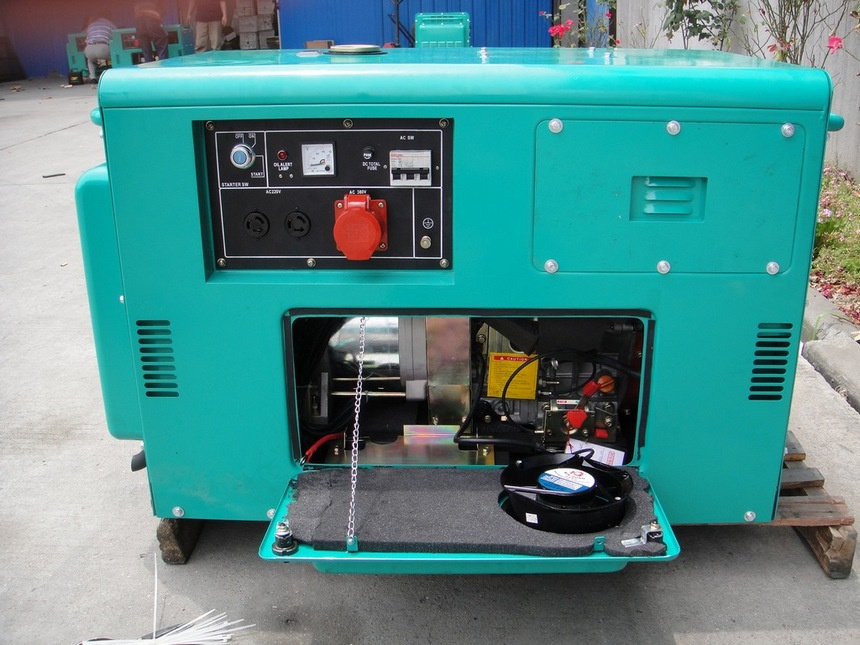

This series of three-phase portable diesel generator set are manufactured by Kaiao power.
Brief introduction:
Portable
Small scale, portable design with open-frame suit for many working conditions, such as camping, home, field...
Silent
Equipe with high quality muffler, reduce some noise till 75dB, does not affact normal life and work. If you need more silence one, T series will help you. The generators cover with soundproof hood with completely closed construction attach sound absorption cotton to reduce the noise significantly, but also keep the rain, dust and water, rust, fire as well.
Feature
This one is the larger of this series, and equip with AVR(Automatic Voltage Regulator)-which ensure steady voltage output and protect the machine against the over load-, low oil pressure alarm system, -which protect the machine from abrading-, also it can be installed by electric starting with storage battery.
Ground system is equipped to secure the human safety. ATS system ca automatically switch between main power and backup generator. Also it can be installed remote starter.
The enlarged all-in-one fuel tank lengthens the every run time.
Other
All the end of line connection are arranged orderly in the control panel make maintence more convenient.
Clear panel and customized sockets, is easy for operating.
This series are certificated with CE, ISO9001.
|
Diesel generator set KDE12T3 |
|
Model |
KDE12T3 |
|
Frequency (Hz) |
50 |
60 |
|
Output power (KVA) |
9.5 |
10.5 |
|
Max. Power(KVA) |
10.5 |
11.5 |
|
Voltage (V) |
230/400 |
240/416 |
|
Current (A) |
13.7 |
14.6 |
|
Engine speed (r/min) |
3000 |
3600 |
|
Phase |
3-phase |
|
Power factor(cosφ ) |
0.8 |
|
Excitation system |
Self-excited constant voltage |
|
Noise level (7m) |
DB (A): 72 |
|
Fuel tank capacity (L) |
25 |
|
Structure |
Silent |
|
Panel |
Ordinary |
|
Output socket |
Two |
|
DC12V output |
Terminal post |
|
Engine Model |
KA840 |
|
Bore*stroke (mm) |
86 *72 |
|
Displacement (L) |
0.836 |
|
Power (KW) |
11.3/3600 |
|
Fuel consumption rate (g. KW/h) |
< 340 |
|
Compression ratio |
|
Lubrication system |
Spring |
|
Engine starting system |
Electric starter |
|
Diesel oil model |
Summer: 0#, winter: -10# |
|
Lube oil model |
SAE10W-30 (above CD grade) |
|
Lube oil capacity (L) |
1.65 |
|
Battery capacity(V-AH) |
12V-36Ah |
|
Net weight (KG) |
245 |
|
Dimension(L*W*H) |
1180× 720× 820 |
