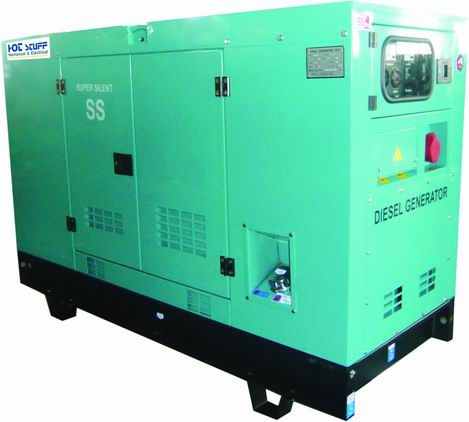

Isuzu 25KVA-40KVA Isuzu Generator /Silent Diesel Generator Set/soundprood diesel generator/diesel genset
With Isuzu 4JB1 and 4JB1T engine. Low fuel consumptions and top quality.
|
Gen-set model |
GF2-25KW |
|
Prime output (KW/KVA) |
25KW/33.4kva |
|
Standby output (KW/KVA) |
27KW /36KVA |
|
Engine model |
4JB1T |
|
Rated output (KW) |
28 |
|
Standby output (KW) |
31 |
|
Engine speed (rpm) |
1500rpm |
|
Engine characters |
Water-cooling, in line, Vertical, 4 stroke, direction injection |
|
Air induction system: |
Natural Aspiration |
|
Bore (mm) X Stroke (mm) |
93 X 102 |
|
Cubic capacity (L) |
2.771 |
|
Piston speed (m/s) |
6.12 |
|
Compression ratio |
18.2: 1 |
|
Speed stability bandwidth |
≤ ± 0.8% |
|
Steady governing rate |
≤ 5% |
|
Exhaust temperature |
550 |
|
Exhaust back pressure |
15KPa |
|
Lube temperature/capacity |
120/5.5L |
|
BMEP: Kpa (prime power) |
895 |
|
Heat rejection to cooling |
26.8kw/min |
|
Cooling system volume |
4.5L (except water tank) |
|
Cooling air flow |
96m 3 /min |
|
Combustion air flow |
2.55m 3 /min |
|
Exhaust gas flow |
7.86m 3 /min |
|
Rating fuel consumption (L/h) |
6.4 |
|
Alternator model |
TWF-25KW |
|
Type |
Copy Stamford brushless |
|
Prime output (KW/KVA) |
25KW/33.3KVA |
|
Standby output (KW/KVA) |
27KW/36KVA |
|
Phase, voltage, frequency |
Single phase, 220V, 60Hz |
|
Voltage adjustment |
≤ ± 5% |
|
Insulation class |
H |
|
Package |
Plywood case |
|
Dimension (LXWXH) mm |
1800*770*1100 |
|
Gross weight (KGS) |
900 |
|
20FT/PCS |
18 |
As a manufacturer, we specialize in producing big water cooled diesel generator from 8KW to 500kw above. Air cooled gasoline/ diesel engine, small air cooled gasoline/diesel generator set, gasoline/diesel water pump sets, concrete cutter, plate compactor, light tower, high pressure washer and so on products. Have about 10 year experience. Punctual delivery, good quality, competitive price.
If you are interested in any our products, pls let me know. We promise to supply you good quality and service you at first time!
Welcome your any enquiry! Hopefully, we can develop best with your cooperation!
