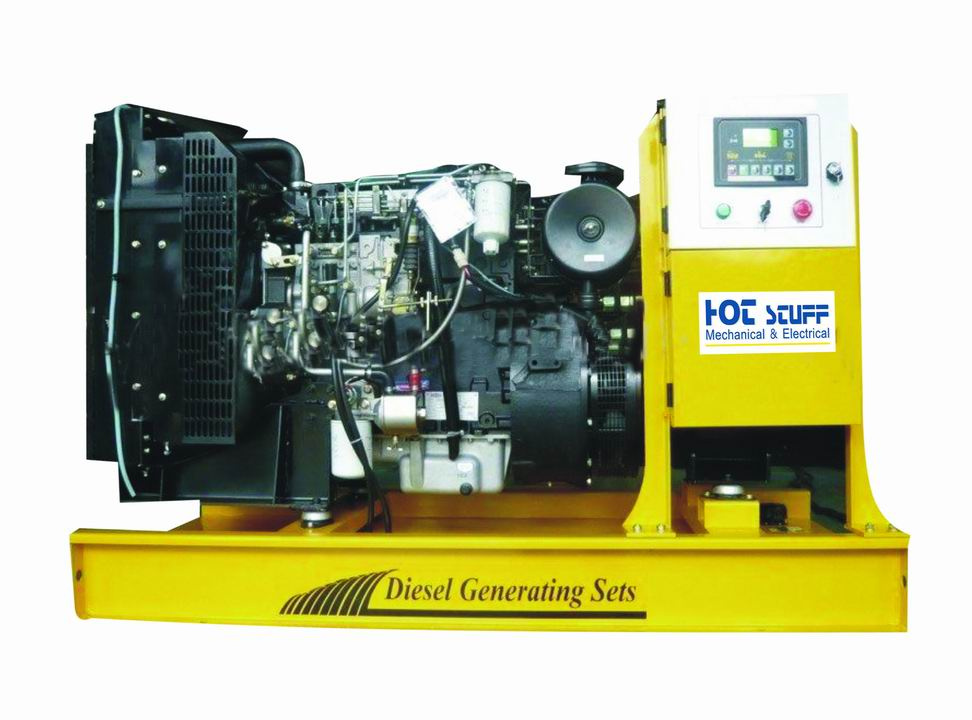

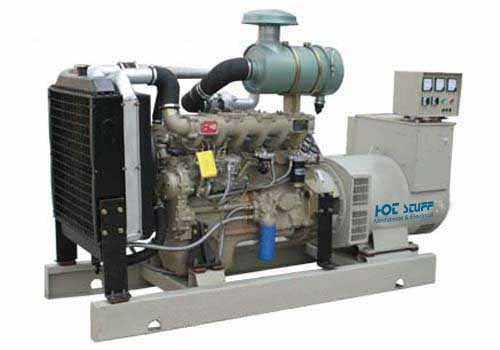

CUMMINS BRAND diesel generator/diesel generator
GF2 10KW-500KW Silent Open Diesel Generator with CE
Different kinds of alternator
Competitive price
Good after sales service
Reliable quality, high precision, larger power
Generator set
Engine power range from 20kw to 500kw
Alternator: Stamford
Speed 1500rpm/1800rpm
Frquency: 50Hz/60Hz rated voltage: 230v/400v
Rated current 50A-900A
Color: Yellow, orange green, white
Output type: AC THREE PHASE
MODEL | GF2-C100kw/125KVA |
Powered by Cummins Engine |
Prime Power (50HZZ) | 100KW/125KVA |
Standby Power (50HZ) | 112kw/140KVA |
Power Factor | 0.8 Lagging |
Phase Wires | 3-phases 4-Wires |
Start Model | Electric |
Protection | Low oil-pressure, High water temperature, Over-speed, Over-current |
Engine Model | 6BTA5.9-G2 |
Cylinders | 6 |
Cylinder Arrangement | L |
Bore x Stroke(mm) | 102X 120 |
Compression Ratio | 17.5: 1 |
Speed | 1500rpm |
Cooling Method | Water – cooled |
Starting Method | 24V DC electrical start |
Full Load Diesel Consumption (L/H) | 25 |
Engine Displacement (L) | 5.9 |
Inspiration (L) | Natural |
Lube Volume (L) | 14.3 |
Coolant Volume (L) | 25 |
Noise (Db) | ≤ 80 |
Alternator Model | Stamford copy 274E |
Alternator Power | 112KW/140KVA |
Voltage | 230/400 V |
Protection | IP23 |
Voltage Regulation | ± 4% |
Insulation Class | H |
Voltage Control | AVR |
Net Weigh (KGS) | 1400 |
Dimensions (L x W x H) mm | 2900*1230*1700 |
Optional | ATS (auto transfer switch) |
| BatteryCharger |
| Base fuel tank (for open type) |
As a manufacturer, we specialize in producing big water cooled diesel generator from 8KW to 500kw above. Air cooled gasoline/ diesel engine, small air cooled gasoline/diesel generator set, gasoline/diesel water pump sets, concrete cutter, plate compactor, light tower, high pressure washer and so on products. Have about 10 year experience. Punctual delivery, good quality, competitive price.
If you are interested in any our products, pls let me know. We promise to supply you good quality and service you at first time!
Welcome your any enquiry! Hopefully, we can develop best with your cooperation!
