Isuzu Silent Diesel Generator with CE Approved
| Price: |
US $ 5716/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |

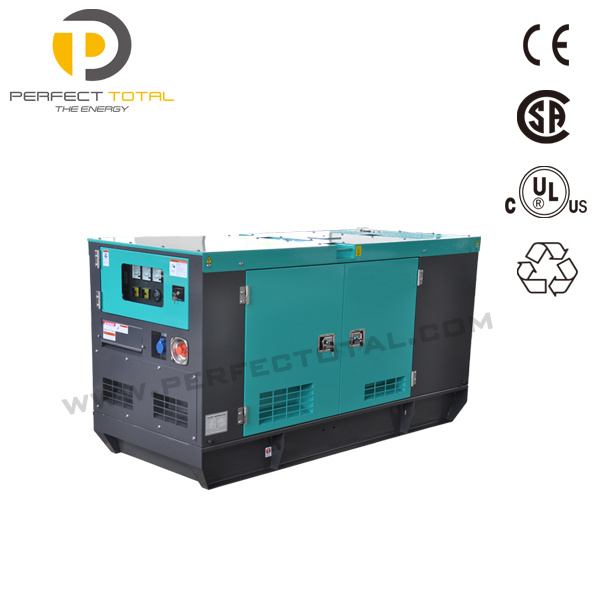

isuzu silent Diesel Generator with CE Approved
Quick Details
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: PERFECT TOTAL
- Model Number: 25ESX-PT
- Output Type: AC Three Phase
- Speed: 1500RPM
- Frequency: 50Hz, 50Hz or 60Hz
- Rated Power: 25Kva
- Rated Voltage: 240/415V
- Rated Current: 35A
- Product Name: 25Kva Super Silent Diesel Generator Set With Isuzu Engine
- Engine brand: ISUZU Brand 4JB1
- Alternator Brand: Stamford/ Leory Somer/ MECC
- Noisy Level: 55DB
- Fuel tank Capacity: 105 liters
- Bottom Forklift: Yes
- ATS: YES
- Steel: Galvanized then powder coating
- Controller: DEEPSEA
-
enset Model Soundproof diesel generator set | 25ESX-PT |
SET | Rated power(Kw/kva) Prime power | 20KW/25KVA |
Frequency(Hz) | 50 |
Phase | 3 |
Voltage(V) | 240/415 |
Current(A) | 34.8 |
Fuel capacity(L) | 82 |
Fuel consumption(L/Hour) 100% Prime power | 4.4 |
Dimension (mm) | L | 1880 |
W | 800 |
H | 1080 |
Weight(kg) | 770 |
Noice level for silent type (Db/7m) | 56 |
ENGINE | Model | 4JB1, ISUZU Brand |
Prime power(kw/kva) | 24/30 |
Cylinders | 4 |
Bore×stroke(mm) | 93×102 |
Intake Method | Natural intake |
Displacement(L) | 2.771 |
Speed governing | Mechanical governor |
Cooling starting method | Water cooling |
ALTERNATOR | Model | DG184F |
Rated power(kw/kva) | 22/27.5 |
Insulation class | H |
Alternator enclosure | IP23 |
THIS SET COULD BE OPERATED ON 100% OF THE POWER CAPACITY AT ALTITUTE OF 1500M, AMBIENT TEMPERATUR OF 50°C. WE RESERVE THE RIGHT TO EXPLAIN THE TERMS OF THIS SPECIFICATION. |
| Prod Model: |
25ESX-PT |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Silent Diesel Generator: |
Isuzu Engine Generator |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Portable |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
HANGZHOU PERFECT TOTAL MACHINERY Co., Ltd. Built at 2014 Year and we have 14 years experience of doing Diesel Generator, Light Tower. We are Specialized in production and sales of diesel generators, super-silent generator, REEFER CONTAINER generator, mobile light tower, plant oil generator, message signs, construction machine, and the development of new products. We have much experience in manufacture and have strong technical strength. All products are of good quality and we are able to offer the efficient service, therefore the products are popular in our clients and enjoy and excellent reputation. We have big market in Dubai, Australia, Canada, USA, Malaysia, ...etc market. Offering OCEA power system equipment and high-quality service to over 200contries. We can do Generator power ranges from 5kVA to2200kVA. According to the functions, we offer common type (standard), automation, trailers, Van, low noise, and other series. We can design and manufacture the special specification and models in accordance with the customers' requirements. We would like to invite reliable partner join us!
